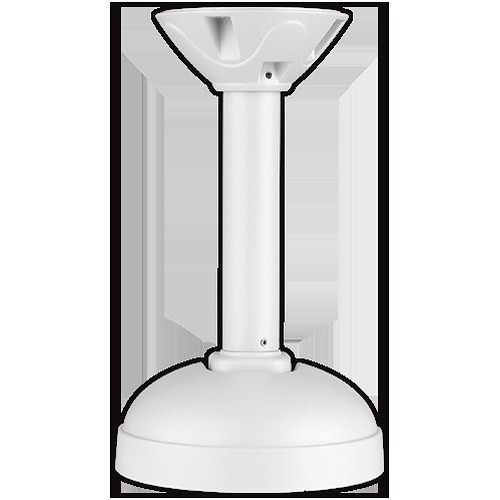

Digital Watchdog DWC-DSCM Ceiling Mount Bracket
The Digital Watchdog DWC-DSCM is a ceiling mount bracket purpose-built for Digital Watchdog dual-sensor dome cameras. Constructed from aluminum alloy, it delivers the structural rigidity needed to support heavier multi-sensor payloads without flex or vibration—critical when you're mounting precision optics above high-traffic areas or outdoor perimeter zones.
Key Features
- Aluminum Alloy Construction: Weighs less than steel but resists bending under load. Matters when your dome camera is 2+ lbs and mounted 12+ feet overhead—you want zero sag over months or years of temperature cycling.
- Weatherproof Design: Sealed joints and corrosion-resistant finish mean no rust seepage into your camera's connector ports. Deploy indoors or outdoors without worrying about salt spray, humidity, or rain pooling at the mount interface.
- White Finish: Matches drop ceilings, HVAC ducts, and painted soffits. Also reduces thermal absorption in direct sunlight, keeping the bracket cooler and lowering heat transfer into the camera body—a small but real factor in high-temperature warehouse or outdoor canopy installations.
- Adjustable Positioning: Tool-free pan and tilt adjustment lets you dial in sight lines after installation. No need to unbolt and remount if your coverage map shifts or an obstruction appears—roughly 15 minutes of fine-tuning instead of a re-rig.
- Secure Mounting: Engineered to lock position once set. Vibration from HVAC, door slams, or vehicle movement won't shift your angle. Critical in facilities with active loading docks or manufacturing floors.
- Dual-Sensor Dome Compatibility: Fits the footprint and weight profile of Digital Watchdog dual-sensor dome cameras. Do not assume it works with single-sensor domes or competing brands—confirm camera model before ordering.
Integration & Compatibility
This bracket is designed exclusively for Digital Watchdog dual-sensor dome camera models. Verify your camera's mounting footprint against the DWC-DSCM before purchase. If you're integrating into an existing NVR-based surveillance system, the bracket itself is passive—power, video, and analytics flow through the camera and recorder unchanged.
Deployment Contexts
The DWC-DSCM suits retail and office environments where aesthetics matter and you need rock-solid positioning. Warehouse and distribution centers benefit from the weatherproof seal and aluminum durability. Educational institutions and outdoor perimeter fencing rely on the white finish and environmental robustness. Any site with active environmental stress—temperature swings, vibration, dust, or occasional rain—will see longer hardware life from a sealed, non-corrosive bracket versus budget alternatives.
Installation Considerations
Ceiling-mount installations require locating solid framing or approved drop-ceiling supports. The DWC-DSCM itself includes adjustable hardware, but you'll need to verify load capacity of your ceiling system before mounting. Dual-sensor domes typically weigh 1.5 to 2.5 lbs; confirm your ceiling can handle sustained loads at the planned location. Use the included template (if provided) to mark bolt centers before drilling.
Frequently Asked Questions
Q: Is the DWC-DSCM compatible with single-sensor Digital Watchdog dome cameras?
A: No. The DWC-DSCM is engineered for dual-sensor domes. Single-sensor models may have different mounting footprints and weight profiles. Confirm your specific camera model against the compatibility list before ordering.
Q: Can I use the DWC-DSCM outdoors?
A: Yes. The weatherproof design and sealed construction allow outdoor deployment. However, the bracket itself does not provide environmental protection to the camera—verify that your camera has an appropriate IP rating (IP66 or higher) for the outdoor conditions you plan.
Q: What is the maximum weight capacity?
A: The DWC-DSCM is rated for dual-sensor dome cameras in the 1.5 to 2.5 lb range. If your camera exceeds 2.5 lbs, contact the manufacturer to confirm compatibility.
Q: Will the adjustment mechanism loosen over time?
A: The locking mechanism is engineered to resist vibration and environmental stress. Once set, position should remain stable. Periodic visual inspection (quarterly in high-vibration environments) is recommended.
Q: Does the bracket include installation hardware?
A: Yes. Standard fasteners and a mounting template are included. You provide the anchor bolts appropriate for your ceiling system (typically M6 or 1/4-inch fasteners into framing or approved ceiling supports).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-DSCM (often searched as DWC DSCM) solves a specific problem: most generic ceiling mounts flex under the weight of dual-sensor domes, causing creep and coverage drift over months. Aluminum doesn't eliminate that entirely, but its strength-to-weight ratio beats steel and galvanized hardware, and the sealed construction prevents corrosion from rain ingress—a real issue in humid climates or facilities with condensation cycles.
Technical Highlights:
- Aluminum Alloy Material: Resists rust and thermal expansion better than bare steel, meaning your coverage angle stays locked across 40°F to 90°F temperature swings. Matters in unheated warehouses, outdoor canopies, or climate-variable retail spaces.
- Weatherproof Seals: Prevents water pooling at the bracket-to-camera interface. In outdoor deployments or high-humidity indoor zones (food processing, cold storage), bracket corrosion is often the failure path—sealed design extends hardware life to 5+ years.
- Adjustable Pan/Tilt Locking: Once positioned, the lock mechanism resists vibration from HVAC units, door slams, and vehicle movement. This matters because even 2–3 degrees of drift over six months can walk your coverage off a critical zone—especially in retail loss-prevention or perimeter monitoring.
Deployment Considerations:
- Confirm your ceiling support system can handle 2+ lbs at the planned mounting point. Drop ceilings rated for light fixtures (typically 5–10 lbs per point) will hold a dual-sensor dome, but structural ceilings or concrete soffits require proper anchoring.
- If you're retrofitting into an existing installation, measure your camera's footprint against the DWC-DSCM specs before ordering—compatibility is brand and model-specific, not universal across dual-sensor domes.
- White finish is an asset in climate-controlled indoor spaces and helps in outdoor sunny locations (lower heat absorption), but in high-dust environments (grain mills, cement plants), expect quarterly cleaning to maintain appearance and ensure no debris enters the camera connector.
Position the DWC-DSCM in retail, warehouse, or outdoor perimeter installs where you need a bracket that won't sag, won't corrode, and lets you dial in angle without a complete remount. This is not a load-bearing bracket for heavy PTZs—it's purpose-built for dual-sensor domes and earns its cost through long-term stability and minimal maintenance.
