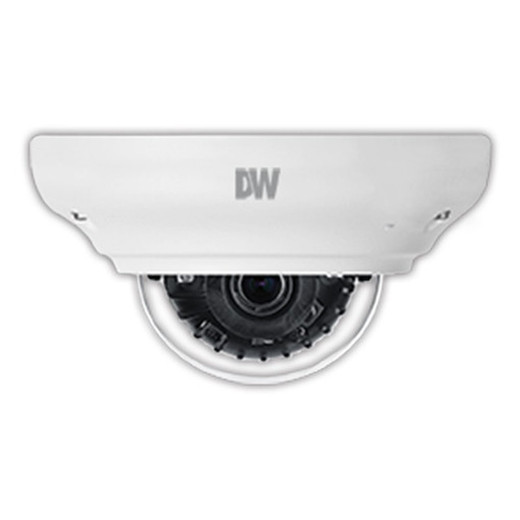

Digital Watchdog DWC-MV75Wi28TW 5MP Outdoor IR Dome IP Camera

Digital Watchdog DWC-MV75Wi28TW 5MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MV75Wi28TW is a professional-grade 5MP outdoor dome camera designed for comprehensive surveillance in challenging environments. Featuring a 1/2.8" CMOS sensor with 2592 × 1944 resolution and intelligent IR illumination, this camera delivers clear, detailed imagery around the clock. Built with vandal-resistant construction and IP67 weatherproofing, it withstands harsh outdoor conditions while maintaining reliable performance across all seasons.

Key Features

• 5MP resolution with 1/2.8" CMOS sensor for exceptional image clarity
• Smart IR™ technology with 80-foot infrared range for 24/7 visibility
• True WDR (120dB) for balanced imaging in high-contrast lighting
• IK10-rated vandal dome with aluminum die-cast housing
• IP67 rating for complete dust and water protection
• PoE power delivery for simplified installation
• Dual-stream H.264/H.265 video compression at up to 30fps
• Smart DNR™ 3D digital noise reduction for cleaner low-light images
• Advanced IVA license support: intrusion detection, line crossing, loitering, tamper detection, and more
• 16 programmable privacy masks for flexible deployment
• Micro SD/SDHC/SDXC local recording up to 1TB

Technical Specifications

Imaging: The camera supports three fixed focal lengths (2.8mm, 4.0mm, 6.0mm) with corresponding field-of-view options ranging from 51.9° to 102.4° horizontal. Minimum scene illumination reaches 0.0 lux in black & white and 0.13 lux in color, enabling operation in near-total darkness. Smart shutter control (8 ~ 1/50000) adapts to varying light conditions, while auto day/night switching ensures optimal color performance during daylight and monochrome capture at night.

Video & Streaming: Multi-format codec support includes H.264, H.265, and MJPEG compression. The camera streams at up to 30fps across all resolutions with dual-stream capability, allowing independent configuration of main and sub-streams. Video bitrate ranges from 32Kbps to 20Mbps with controllable CBR/VBR modes for bandwidth optimization.

Connectivity & Integration: IPv4 networking via standard protocols (HTTP, HTTPS, RTSP, SNMP) enables integration with major VMS platforms including DW Spectrum® IPVMS, ExacqVision, and Milestone Systems. Multi-user authority and 802.1x security support enterprise-grade access control. The camera supports Bonjour, DDNS, DHCP, and UPnP for flexible network deployment.

Durability: Operating temperature range of -4°F to 122°F (-20°C to 50°C) and 10-90% humidity tolerance (non-condensing) ensure reliable performance in extreme climates. Power consumption is minimal at 7.2W maximum under PoE, reducing infrastructure load.

Applications

Ideal for perimeter monitoring, parking facilities, building entries, industrial sites, and outdoor transportation hubs. The combination of high resolution, extended IR range, and intelligent video analytics makes it suitable for organizations requiring detailed evidence capture and automated threat detection in outdoor environments.

Marty Allison

The DWC-MV75Wi28TW represents a solid mid-range outdoor surveillance solution. The 5MP resolution provides sufficient detail for identifying faces and license plates at reasonable distances, while the 80-foot Smart IR range covers most outdoor perimeters without excessive power draw. True WDR 120dB performance handles backlit scenarios effectively—critical for entryways and parking areas.

The IVA licensing structure allows progressive capability scaling, making it cost-effective for deployments requiring only basic motion detection initially, with upgrades to advanced analytics later. Local microSD recording provides failover redundancy, and broad VMS compatibility ensures integration into existing enterprise systems. The IK10 rating and IP67 sealing justify deployment in high-vandalism or wet environments.

Primary considerations: the fixed lens design requires pre-planning of coverage zones, and the 30fps maximum frame rate, while adequate for most applications, may be limiting for high-speed traffic monitoring. Overall, this camera delivers reliable performance for standard outdoor surveillance with intelligent feature depth.
