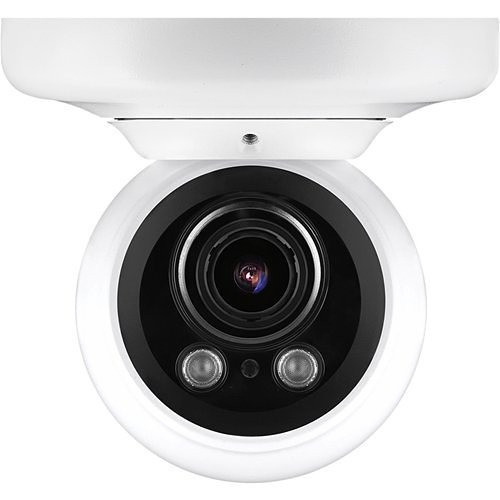

Digital Watchdog DWC-MPVA2Wi28T 2MP Outdoor IR Turret IP Camera

Digital Watchdog DWC-MPVA2Wi28T 2MP Outdoor IR Turret Camera

The Digital Watchdog DWC-MPVA2Wi28T is a professional-grade 2MP outdoor IR turret camera designed for demanding surveillance environments. Built on a 2.1MP/1080p CMOS sensor, this camera delivers crystal-clear 30fps video across all resolutions, capturing critical details in real-time. Its weatherproof IP67-rated housing and IK10 vandal-resistant design ensure reliable operation in harsh outdoor conditions, making it ideal for perimeter security, parking lot monitoring, and high-risk facility protection.

Key Features

• 2.1MP/1080p resolution at 30fps with H.264, H.265, and MJPEG codec support
• 100-foot Smart IR™ night vision with 0.0 lux B/W and 0.05 lux color capabilities
• True WDR 120dB for balanced imaging in challenging lighting conditions
• IP67 weatherproof and IK10 vandal-resistant aluminum die-cast housing
• PoE power delivery with minimal power consumption (7.2W max)
• 110° horizontal and 59° vertical field of view with fixed lens design
• Dual-stream capability at different rates and resolutions
• Smart DNR™ 3D digital noise reduction with de-fog functionality
• 16 programmable privacy masks and motion detection
• Micro SD/SDHC/SDXC card storage up to 1TB (card not included)
• Advanced IVA and IVA+ license support for intelligent video analytics

Technical Highlights

This turret camera operates across a wide temperature range of -4°F to 122°F, ensuring consistent performance year-round. Its true day/night capability automatically switches between color and B/W modes, while auto gain control and backlight compensation optimize video quality in variable lighting. The camera supports multiple streaming protocols including RTSP, RTP, HTTP, and HTTPS, integrating seamlessly with DW Spectrum® IPVMS, ExacqVision, and Milestone Systems platforms. Network capabilities include DHCP, DNS, DDNS, Bonjour, and NTP for flexible deployment. Security features include 802.1x authentication, HTTPS encryption, and MAC filtering to protect against unauthorized access.

Operational Capabilities

The DWC-MPVA2Wi28T offers flexible shutter modes (auto, manual, slow) with speeds from 8 to 1/50000, accommodating diverse lighting scenarios. Multi-bitrate streaming (32Kbps to 20Mbps) with CBR/VBR control enables bandwidth optimization. Operational notifications trigger via alarm outputs, email, or SD card recording, providing real-time alerts to security personnel. With its compact 4.92" x 4.4" form factor and lightweight 1.65 lb design, installation is straightforward while maintaining robust protection.

Ideal Applications

This camera excels in outdoor perimeter surveillance, parking facilities, transportation hubs, industrial sites, and critical infrastructure protection. The 100-foot IR range and excellent low-light performance make it particularly valuable for 24/7 monitoring where artificial lighting is limited. Advanced analytics support enables proactive threat detection through intrusion detection, line crossing, loitering alerts, and tailgating monitoring.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPVA2Wi28T represents Digital Watchdog's commitment to delivering enterprise-class surveillance at an accessible price point. The 110° HFOV provides wide coverage while the fixed lens maintains image consistency. True WDR 120dB is critical for outdoor installations where backlit subjects and high-contrast scenes are common.

The inclusion of Smart IR™ and Smart DNR™ demonstrates optimization for IP-based workflows. PoE powering reduces installation complexity and cost in sprawling outdoor deployments. Support for both H.265 and H.264 codecs offers flexibility for legacy and modern VMS integration.

The IVA/IVA+ analytics licensing model provides cost-effective scaling of intelligent monitoring capabilities. Five-year warranty coverage reflects manufacturer confidence in outdoor durability.
