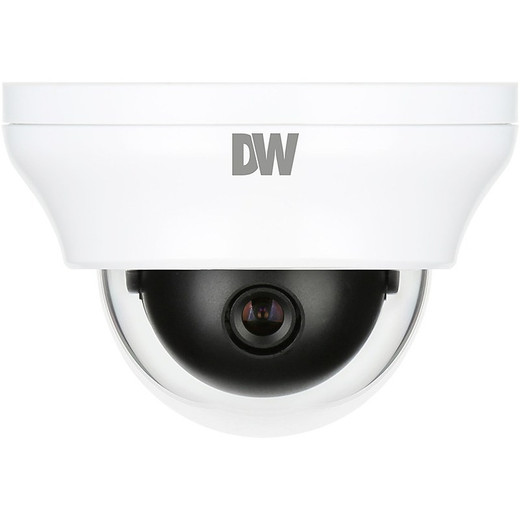

Digital Watchdog DWC-MD72Di28T 2MP 1080p IR Indoor Dome Camera
The DWC-MD72Di28T is a fixed-lens dome camera designed for round-the-clock indoor surveillance in offices, retail, healthcare facilities, and secure data centers. This 2MP model delivers 1080p resolution paired with integrated infrared night vision and H.265 compression—a combination that keeps storage and bandwidth costs manageable across multi-camera deployments while maintaining forensic-quality footage.
Overview
The DWC-MD72Di28T (often searched as DWC MD72Di28T) is built on a straightforward design philosophy: reliable 1080p coverage without the complexity of motorized optics or edge analytics. The fixed 2.8mm lens provides a 109° horizontal field of view—wide enough for typical office corridors, retail aisles, or medium-sized rooms without requiring pan/tilt adjustment. The ivory dome housing is compact (0.66 lbs) and discreet, fitting ceiling or wall mounts without drawing attention. Because it draws under 5.5W via standard PoE, you'll avoid power supply complications and won't strain a standard 802.3af switch serving 8–12 cameras.
Key Features
- 2MP / 1080p resolution with 109° horizontal FOV: Captures usable detail across medium-range indoor spaces—sufficient for identifying individuals and reading documents in forensic review, but not oversized for storage-constrained deployments.
- Smart IR™ with 50-foot infrared range: Illuminates complete darkness without external lighting. The 50-foot range covers most indoor ceiling heights and corridor lengths; measure your actual coverage zone before deployment if you're near the edge.
- 0.0 lux in B/W mode, 0.25 lux in color: Allows useful color video in extremely low light (e.g., dimly lit stairwells or nighttime retail floors) before switching to full infrared black-and-white. This flexibility is valuable when you need both detail and context in twilight conditions.
- H.265, H.264, and MJPEG codec support: H.265 cuts storage and bandwidth overhead roughly 40–60% versus H.264 on typical interior scenes—a meaningful saving when recording 24/7 across a dozen or more cameras. H.264 and MJPEG fallback ensures compatibility with legacy NVRs.
- Smart DNR™ 3D digital noise reduction: Reduces grainy artifacts in low-light video without losing fine detail. Helps maintain readable footage in dim hallways and warehouse areas without adding external lighting.
- PoE Class 2 (maximum 5.5W): Operates on standard 802.3af switches, eliminating separate power runs. Ideal for retrofit installations or facilities without dedicated camera power circuits.
- IP66 dome housing: Protects against moisture and dust—relevant if the camera sits near HVAC returns, in warehouses with overhead sprinklers, or in food service facilities with washdown protocols. Not submersion-rated, so avoid direct water spray or steam environments.
- Auto day/night with configurable switching: Transitions between color and monochrome automatically based on ambient light; you control the lux threshold to match your facility's lighting patterns.
- Motion detection with email/FTP alerts and SD card support: Configurable motion zones trigger email notifications or record events to a microSD card (useful as a backup if your NVR is offline). Reduces false alarms through sensitivity tuning.
- Operating range -4°F to 122°F: Handles typical indoor temperature swings in climates without extreme HVAC failures. Not rated for outdoor temperature extremes, so keep this indoors or in conditioned enclosures.
Integration & Compatibility
The DWC-MD72Di28T conforms to ONVIF standards, meaning it integrates with any standards-compliant VMS including DW Spectrum®, Milestone XProtect, Axis Camera Station, and third-party platforms. Network security includes 802.1x authentication, HTTPS/TLS encryption, IP filtering, and digest password protection—baseline features expected in 2024 enterprise environments. White balance, sharpness, and mirror/flip functions allow image tuning for non-standard mounting angles. Browser support covers Chrome, Firefox, Safari, and Edge on Windows, macOS, and Linux.
When to Choose a Different Model
If your scene requires a wider field of view, consider a lower-focal-length variant in the Digital Watchdog dome lineup (e.g., a 2.8mm–12mm varifocal). If you need outdoor weatherproofing beyond IP66, step up to an IP67-rated outdoor dome. For higher resolution (4MP or 5MP), Digital Watchdog offers megapixel variants in the same form factor. If edge analytics (person detection, loitering, etc.) are required, you'll need a separate platform—the DWC-MD72Di28T handles detection rules on the NVR side.
Frequently Asked Questions
Q: What is the maximum IR range on the DWC-MD72Di28T?
A: Smart IR reaches 50 feet. Actual effective range depends on reflective surfaces and target size; measure your coverage zone indoors to confirm usability at the far end of your space.
Q: Does the DWC-MD72Di28T work with my existing Milestone XProtect NVR?
A: Yes. The camera conforms to ONVIF standards and integrates with any ONVIF-compatible VMS, including Milestone XProtect. Verify your NVR version supports the specific codec (H.265, H.264, or MJPEG) you intend to use.
Q: Can I mount the DWC-MD72Di28T on a wall instead of the ceiling?
A: Yes. The dome supports both ceiling and wall mounting. Use the mirror/flip function in the camera web interface to correct the image orientation for wall-mounted installations.
Q: How much storage will the DWC-MD72Di28T consume on a 24/7 recorder?
A: H.265 at 1080p typically uses 0.5–1.2 GB per day depending on scene activity and compression quality. H.264 roughly doubles that. Consult your NVR's bandwidth calculator for precise estimates based on your frame rate and quality settings.
Q: What is the warranty on the DWC-MD72Di28T?
A: The camera includes a 5-year manufacturer warranty covering defects in materials and workmanship. Verify coverage terms with your specialty retailer.
Q: Is the DWC-MD72Di28T NDAA Section 889 compliant?
A: Compliance varies by reseller and contract. Contact your specialty retailer or Digital Watchdog directly for NDAA certification details applicable to your purchase.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-MD72Di28T represents solid value in the fixed-dome segment. It delivers 1080p resolution at a reasonable price point while Smart IR™ and Smart DNR™ 3D technologies ensure usable footage in challenging low-light conditions without premium pricing. The H.265 codec support is a significant advantage for organizations managing large camera deployments—you'll see roughly 40–60% storage and bandwidth reduction compared to H.264, a real factor when recording 24/7 across dozens of cameras.
Technical Highlights:
- H.265 codec with H.264 and MJPEG fallback: 40–60% bandwidth savings on typical interior scenes; multi-codec support ensures backward compatibility with older NVR platforms.
- Smart IR™ 50-foot range with 0.0 lux B/W / 0.25 lux color: Eliminates external lighting needs in complete darkness; color video capability in low-light interiors (stairwells, dimly lit hallways) before full IR engagement.
- PoE Class 2 at 5.5W maximum: Standard 802.3af infrastructure; zero separate power runs required. A 12-camera deployment fits comfortably on one 95W PoE switch.
- IP66 dome housing with compact 0.66 lb form factor: Protects against dust and moisture ingress (HVAC proximity, warehouse overhead systems) without adding bulk or installation complexity.
Deployment Considerations:
- The fixed 2.8mm lens and 109° FOV cover standard office and retail corridors well, but you cannot adjust zoom after installation—measure your actual coverage zone and verify the field of view meets your scene before ordering.
- IP66 protects against moisture but is not submersion-rated; avoid direct washdown spray or steam-heavy environments (e.g., kitchens, shower areas). Stick to conditioned indoors or moisture-controlled spaces.
- H.265 support requires modern NVR firmware; if your recorder only handles H.264, you'll fall back to double the storage footprint. Confirm codec support in your VMS before full deployment.
Best suited for enterprise offices, retail chains, banks, and healthcare facilities prioritizing straightforward operation, long-term reliability, and efficient storage utilization over cutting-edge analytics. The 5-year warranty and ONVIF compatibility protect your software investment and reduce total cost of ownership across multi-year deployments.
