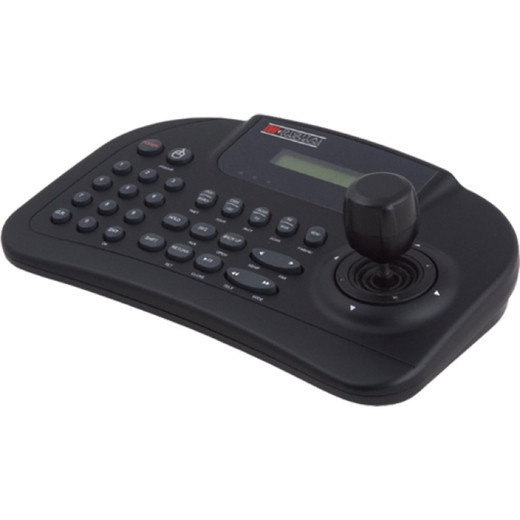

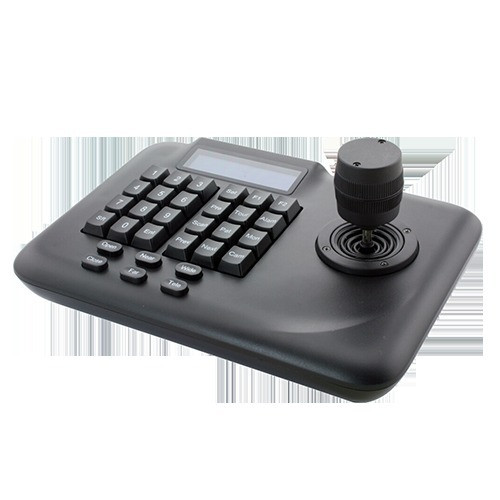

Digital Watchdog DW-KB100 Precision System Control Joystick

Digital Watchdog DW-KB100 Precision System Control Joystick

The Digital Watchdog DW-KB100 is a professional-grade control keyboard designed for precise management of PTZ cameras and surveillance systems in complex security operations. This wired controller combines an intuitive 3-axis joystick with a comprehensive keyboard interface, enabling operators to maintain seamless command over multi-camera surveillance networks with minimal latency and maximum operational efficiency.

Key Features

• 3-Axis Joystick with Variable Speed Control and Integrated Zoom Function
• Comprehensive Rubber Button Keyboard with Numeric Keypad and Camera Function Keys
• 16-Character x 2-Line Graphic LCD Display for Real-Time Status Feedback
• Multi-Protocol Support: Pelco-D, Pelco-P, and Additional Protocols with Selectable Baud Rates
• Extended Operating Range: 4,700 Feet (1,029m) on Standard 24 AWG Wiring
• Dual Power Options: 12V DC or 9V Battery for Flexible Deployment
• Compact, Ergonomic Design for Continuous Professional Use

Technical Specifications

• Interface: RS-485/422 Pan/Tilt connectivity
• Data Connector: 8-Pin Terminal Block
• Power Consumption: Maximum 140mA at rated voltage
• Operating Environment: 0°C to 45°C (32°F to 113°F), 10-70% Non-Condensing Humidity
• Dimensions: 280mm W x 180mm D x 100mm H
• Weight: 0.74kg (1.63lbs) Net; 1.28kg (2.8lbs) Gross

Applications

The DW-KB100 is ideal for security operations centers, surveillance command stations, and enterprise-level monitoring environments where precise camera control and rapid command execution are critical. Its multi-protocol support makes it compatible with diverse surveillance ecosystems, while its extended transmission distance accommodates large facility deployments. The variable-speed joystick ensures smooth, responsive PTZ operation for detailed scene inspection, and the dedicated keyboard buttons enable quick access to critical functions during time-sensitive security events.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DW-KB100 represents a mature, field-proven control solution for professional surveillance environments. Its RS-485/422 interface and multi-protocol support reflect industry-standard compliance, while the 4,700-foot transmission range on standard copper wire eliminates the need for expensive specialized cabling in large installations. The dual power architecture—combining 12V DC for permanent installations with 9V battery backup—demonstrates practical engineering for mission-critical environments.

The 140mA maximum power draw is efficient for extended operation, and the graphic LCD display provides essential feedback without requiring full-screen integration. This controller excels in legacy system environments and mixed-protocol deployments where flexibility is paramount.
