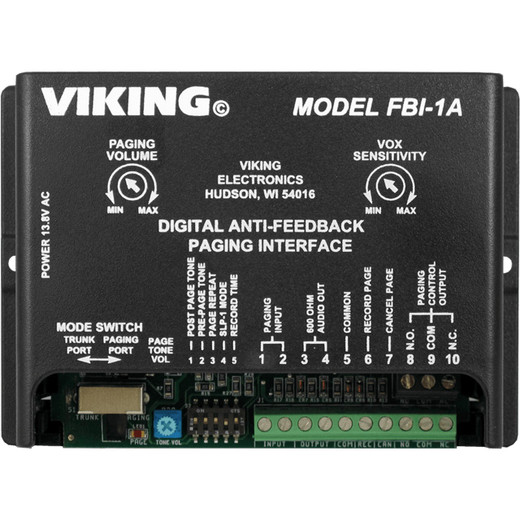

Viking Electronics FBI-1A Digital Feedback Eliminator
Overview
The Viking Electronics FBI-1A is a commercial-grade digital feedback eliminator and message storage device built for telephone paging, on-hold systems, and entry intercom applications where audio quality and feedback suppression matter. The FBI-1A samples and stores audio at 80K or 40K Hz — a specification that separates it from budget playback units — and delivers up to 2V RMS into a 600 Ohm load, giving downstream amplifiers and phone system interfaces a clean, strong signal to work with. If you're commissioning a lobby intercom, a multi-zone paging system, or a background music hold loop and need to eliminate the squeal that plagues analog feedback paths, this is the device designed for that problem.
Viking Electronics has been manufacturing telephony hardware and intercom accessories for decades. The FBI-1A fits squarely within the Viking Electronics telecom and intercom product line as a signal-quality device aimed at integrators who know that the last 6 dB of audio clarity is the hardest to achieve in a real installation.
Key Features
- 80K/40K Hz Dual Sampling Rate: At 80K sampling, the FBI-1A captures audio with more resolution than many single-rate units. The 40K mode extends available record time when high fidelity is less critical than duration — selectable via DIP switch, so you configure once at install and don't revisit it. For voice paging, 40K is typically sufficient; for music-on-hold loops where tonal quality matters to callers, 80K is the correct setting.
- 16 or 32 Second Record Time (DIP Switch Selectable): The record window flips between 16 and 32 seconds depending on sampling rate selection — shorter time at higher fidelity, longer at standard. For a typical on-hold message or lobby greeting, 32 seconds covers most use cases. This is set at the board level, which means no accidental re-recording during operation.
- 2V RMS Output into 600 Ohms: At 2V RMS across a 600 Ohm impedance, the FBI-1A outputs a hot enough signal to drive most telephone interface cards, paging amplifiers, and 600 Ohm balanced inputs directly — without a separate line amplifier in the chain. Reducing component count in a paging rack matters when you're troubleshooting at 11 PM.
- 600 Ohm Output Impedance: The balanced 600 Ohm output matches the standard telephony impedance used by virtually every POTS interface, key system, and commercial paging amplifier. This eliminates impedance mismatch artifacts — one of the most common sources of distortion in analog audio paths.
- 24V DC Talk Battery: The 24V DC talk battery spec means the FBI-1A operates on standard telecom line voltage without requiring a separate power injector when connected to a properly powered telephone circuit. Integration into existing intercom and PBX wiring infrastructure is straightforward.
- 120V AC / 13.8V DC Power Input, 1.25A: The unit accepts standard North American 120V AC and can also run on 13.8V DC — the same voltage produced by most commercial 12V regulated power supplies under load. This makes the FBI-1A compatible with battery-backed security panel auxiliary power outputs, useful when you need the paging system to survive a power event alongside the rest of the security system.
- Relay Output — 1A @ 30VDC / 0.5A @ 125VAC: The onboard relay contact can trigger external devices — door strikes, amplifier mute inputs, signage — when the message plays. This is the feature that separates a simple playback device from a system integration component. At 1A/30VDC, it handles most low-voltage control loads directly.
- Compact Form Factor — 5.25
