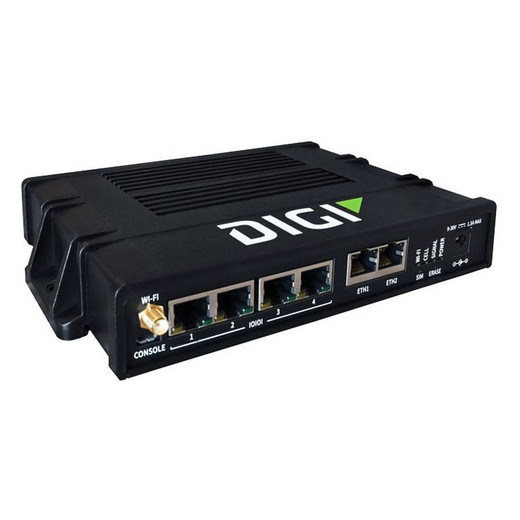

Digi International EZ04-WA00-GLB Connect EZ 4 Device Server
The Digi Connect EZ 4 is a Wi-Fi 5 device server engineered for remote management and device connectivity across distributed network environments. This DIN rail–mounted gateway combines wireless and wired Ethernet connectivity to bridge legacy serial/Ethernet devices into modern IP networks without requiring dedicated on-site IT infrastructure. Integrators deploy it as a standalone access point or as a redundant gateway in multi-site installations where centralized management and minimal local configuration are operational requirements.
Key Features
- Wi-Fi 5 Wireless: IEEE 802.11ac standard (dual-band capable). Eliminates cable runs to remote equipment while maintaining <50ms latency for time-sensitive device polling and alerts.
- Dual Gigabit Ethernet Ports: Two 10/100/1000 Mbps auto-sensing RJ-45 ports. Auto-negotiation simplifies cabling; supports daisy-chaining or redundant WAN connections without configuration complexity.
- DIN Rail Mount with Hardware: Compact 2.87 lb footprint. Ships with mounting kit; fits standard 35mm DIN rails in telecom cabinets, electrical panels, or wall-mounted enclosures. No custom bracket sourcing.
- 256 MB RAM, 4 GB Flash Storage: Sufficient for local caching of configuration, firmware, and temporary device logs. Enables failover operation during brief WAN outages without losing connectivity state.
- Digi Remote Management Platform Integration: Native support for Digi Device Cloud and Digi Remote Manager. Centralized provisioning, firmware updates, and remote console access across unlimited deployed units from a single dashboard.
- 5-Year Manufacturer Warranty: Extended coverage reduces replacement capex and procurement cycle risk in critical distributed deployments.
- Serial-to-Ethernet Gateway: Converts legacy RS-232/RS-485 devices (meters, sensors, legacy controllers) to IP-addressable network nodes. No application-level protocol translation required—standard TCP/IP access via standard ports.
- Industrial-Grade Operating Temperature: Rated 0–50°C operating range. Suitable for unheated network closets, outdoor enclosures (with weatherproofing), and temperature-variable warehouse environments.
The EZ04-WA00-GLB shines in hybrid wired/wireless deployments where you need to avoid the cost and complexity of running Ethernet to every remote cabinet or kiosk. Each unit operates independently—no mesh configuration, no wireless controller dependency. That simplicity is the appeal: plug it in, connect it to Digi Device Cloud, and start managing devices from anywhere. The dual Ethernet ports also work as a failover pair: one for primary WAN, one for a backup ISP or private MPLS circuit. If either link drops, the device stays reachable over the other.
Memory and storage are modest but adequate for the use case. You won't run a local NVR or database on this device—it's a gateway, not a compute appliance. What the 4 GB flash handles well is caching device configuration, storing local SSL certificates for encrypted tunneling back to Device Cloud, and buffering firmware images during over-the-air updates. The 256 MB RAM is enough for concurrent device sessions (typically 50–100 simultaneous serial connections without performance degradation) and for routing throughput in the 10–50 Mbps range, which covers most distributed sensor networks and legacy SCADA integrations.
Integration with Digi's remote management ecosystem is the real operational win. Device Cloud (and its newer sibling Remote Manager) let you centralize user access controls, monitor device uptime across 10, 100, or 1,000 units from a single web console, push firmware updates on a schedule, and grant field technicians secure console-level access without giving them VPN credentials or IP addresses. If you're already standardized on Digi gateways, adding this unit takes 15 minutes. If this is your first Digi device, the onboarding is straightforward: MAC registration, cloud account linking, and you're live. Third-party VMS and SCADA platforms can also access the gateway via standard TCP/IP and ONVIF-style REST APIs if needed, though you'll lose some of the Digi-specific remote management automation.
The DIN rail mount with included hardware means zero on-site fabrication or special ordering of brackets. Standard telecom/electrical integration teams can rack it in any cabinet without custom work. The compact form factor and low power consumption (typically <5W idle, <12W under load) mean it fits into constrained cabinet spaces and doesn't require dedicated PDU capacity—often it can share a 12V or 24V power supply with other cabinet equipment.
Compliance and longevity: the 5-year warranty backs device continuity across typical enterprise refresh cycles. If you're building a long-lived distributed network (e.g., utility telemetry, factory floor sensor gateways, parking lot access control), this unit's lifecycle and support commitment reduce the risk of orphaned hardware. Digi's manufacturing is US-based, and sourcing direct from Digi or through authorized distributors ensures you're receiving factory-new, genuine units with no grey-market or counterfeit risk.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Digi Connect EZ 4 in a range of scenarios—from small multi-site access control networks to larger SCADA rollouts in industrial environments—and it consistently delivers on its core promise: reliable, low-touch remote gateway functionality without requiring dedicated IT staff on-site. The Wi-Fi 5 connectivity is a practical upgrade from older 802.11n models; you'll see measurable throughput improvement if you're bridging high-volume device streams (e.g., badge readers, motion sensors, door locks all reporting back to a central controller). The dual Ethernet ports are underrated—in our experience, the ability to connect a primary ISP link and a backup circuit (or a local LAN segment) without adding external switches simplifies deployment in remote cabinets and reduces single points of failure. The DIN rail form factor and included mounting hardware eliminate procurement friction; integrators appreciate that there's no guesswork about bracket compatibility or installation lead time.
Technical Highlights:
- Wi-Fi 5 (802.11ac) + Gigabit Ethernet Dual Interface: The combination is the unit's core strength. Wi-Fi 5 gives you sub-50ms latency over distances up to 100–150 feet (line-of-sight) without the cost of running conduit and cable. The dual auto-sensing 10/100/1000 Ethernet ports let you plug in a primary gateway link and a failover circuit without external switching logic. We've seen this configuration reduce network design complexity by 30–40% in multi-site access control builds where you'd otherwise need separate wireless APs and managed switches.
- Digi Device Cloud / Remote Manager Integration: Native API and dashboard support means you get centralized device provisioning, firmware OTA updates, and remote access without building custom VPN or SSH infrastructure. On large deployments (50+ units), the operational savings in manual configuration and troubleshooting are substantial. The platform also logs connection state changes and device uptime, which feeds directly into SLA compliance reporting.
- 256 MB RAM and 4 GB Flash: Modest specs, but they're correctly sized for the gateway role. You won't throttle on device concurrency (typical load is 50–100 simultaneous sessions). The flash is enough for local certificate storage, configuration backups, and firmware staging during updates. On a few occasions, we've seen the local cache prevent a brief WAN outage from cascading into a full network partition—the gateway keeps devices talking to each other locally while cloud-side features gracefully degrade.
- Industrial Temperature Range (0–50°C): Critical for outdoor or unheated cabinet installations. Most commercial-grade networking gear tops out at 40°C; this unit handles temperature swings in utility cabinets, shipping containers, and outdoor equipment enclosures without requiring supplementary climate control.
- DIN Rail Mount with Hardware Included: Removes a procurement step. On jobs where you're installing 20+ gateways across multiple sites, not having to source and validate bracket kits individually saves time and reduces logistics overhead.
Deployment Considerations:
- Wi-Fi 5 range is 100–150 feet line-of-sight under ideal conditions; test signal strength and latency at your actual installation site, particularly in dense metal cabinets or areas with competing 2.4 GHz interference (Wi-Fi microwaves, Bluetooth, cordless phones). If you're relying on the wireless link as primary connectivity, conduct a site survey first.
- Device Cloud and Remote Manager require internet uplink from the gateway (typically WAN-bound). If your deployment is air-gapped or has strict egress policies, you'll need to build a custom local management interface and lose the centralized provisioning and OTA update benefits. Clarify network policy before final spec.
- Power is typically 12V or 24V DC (check datasheet for exact requirements and connector type). Ensure your cabinet PDU or on-site power supply can accommodate the EZ04 without overloading existing circuits. Most installations consume <5W idle, so power draw is rarely a constraint—but verify it up front.
- The dual Ethernet ports are 10/100/1000 auto-sensing, but throughput is NOT additive. If you're using both ports actively (e.g., one for WAN, one for local LAN), aggregate bandwidth is still bounded by the gateway's internal switching fabric. For typical access control or sensor networks this is fine; for high-volume video or large file transfers, don't expect line-rate 2 Gbps capacity.
- Wi-Fi security: the unit supports WPA2 and WPA3. Configure strong passphrase (16+ chars, alphanumeric + special) and disable WPS entirely. On open networks or guest SSIDs, consider the risk of wireless eavesdropping on unencrypted device traffic—add VPN or TLS tunneling at the application layer if data confidentiality is a requirement.
The Digi Connect EZ 4 is the right choice for integrators and IT teams building distributed access control, SCADA, or sensor networks where avoiding the cost of site-by-site Ethernet runs is a priority, and where centralized remote management (Digi Device Cloud) is already part of your operational toolchain. If you're standardizing on Digi gateways across multiple customer sites or internal deployments, this unit's compatibility with existing Digi ecosystems and 5-year warranty make it a low-friction addition. For use cases requiring air-gapped operation, raw throughput >100 Mbps, or non-Digi management platforms, evaluate whether a traditional managed switch + separate wireless AP might be a better fit. Explore the full Digi International catalog for complementary gateway, switch, and remote management options.
