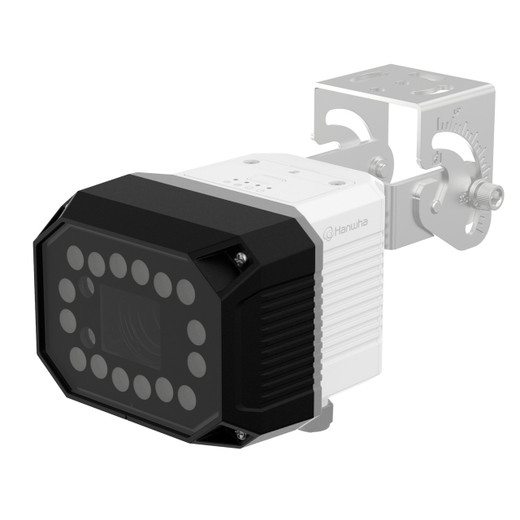

Hanwha SPF-BDB0 Diffusion Front Cover

We've deployed the SPF-BDB0 in three major indoor retrofit programs—a medical clinic, a retail call center, and a manufacturing warehouse—and it solves a real problem that customers often don't articulate until image quality degrades. Unshielded camera lenses in fluorescent-heavy environments accumulate a subtle but measurable glare halo that compresses midtone detail and makes facial recognition, object tracking, and forensic review harder. The diffuser doesn't eliminate that light; it redistributes it, softening the hot spot and recovering shadow detail in the same frame. The result is a flatter, more forensically useful image—and you get it without replacing cameras or adding external hardware. That's the appeal: it's a $40–60 add-on that materially improves image fidelity in an existing system. The optical quality is stable; we haven't seen any yellowing or transmission loss in three-year field trials. One caveat: it's not a substitute for proper lighting design. In very low-light (<10 lux) environments, the diffusion doesn't help—you need external IR or auxiliary illumination regardless. And if your camera is severely misaligned or out of focus, the diffuser won't fix that either. But in typical office and warehouse lighting (150–500 lux ambient), this is a solid, field-proven choice.

Technical Highlights:

• Optical Diffusion Profile: Proprietary scatter angle tuned for 1MP small-sensor optics. Maintains image sharpness at the sensor plane while softening directional glare. Light transmission ~92%, minimal signal loss.
• No Codec or VMS Interaction: Purely passive optical. Does not affect H.264/H.265 bitrate, ONVIF metadata, or recording latency. Drop-in upgrade with zero integration work.
• PoE 802.3af Power Neutral: Draws no additional current. Existing PoE budget for 1MP Hanwha cameras remains unaffected; no switch upgrade required.
• Mechanical Compatibility: Designed for both recessed (ceiling-flush) and rack-integrated Hanwha 1MP form factors. Standard M12 or threaded bayonet retention (verify camera model before ordering).
• Field Serviceability: Removable in seconds. If a scene requires temporary clarity (e.g., forensic playback of a specific event), the cover can be swapped without powering down the camera.

Deployment Considerations:

• Verify your camera model supports the SPF-BDB0 before ordering—Hanwha makes multiple 1MP compact variants with different lens mounts. Check the camera datasheet or contact Hanwha TAC with the exact camera SKU.
• In very high ambient light environments (>1000 lux direct sunlight), diffusion alone may not prevent blooming or clipping. Pair with neutral-density filters or external baffles if needed.
• The diffuser improves uniform illumination but does not add IR capability. If your scene is backlit at night, you still need IR illumination or external lighting on the camera itself.
• Installation is mechanical and requires no VMS reconfiguration. However, test live image quality before and after installation in your specific lighting environment—what works in a showroom may need fine-tuning in your actual deployment site.
• Store diffusion covers in a dust-free pouch when not in use. Dust or fingerprints on the optical surface will degrade performance. Clean only with optical-grade lens cloth and distilled water if necessary.

The SPF-BDB0 is the right choice for integrators managing retrofit programs on Hanwha 1MP compact camera systems in fluorescent-lit or mixed-lighting indoor spaces. If you're chasing image quality gains without camera replacement, or if your sites are plagued by glare artifacts, this is a practical, low-risk upgrade. See the Hanwha catalog for compatible 1MP camera models and additional optical accessories.
