Description

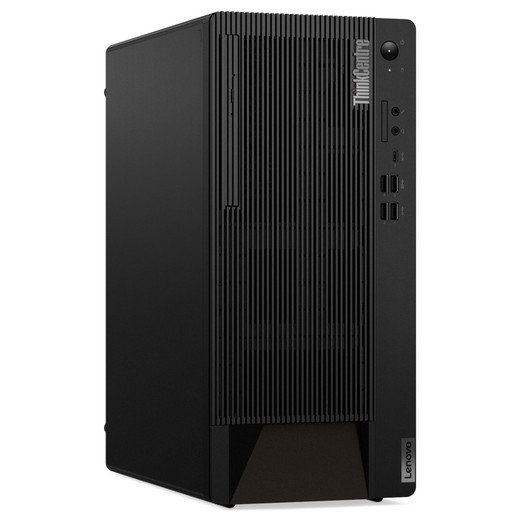

Lenovo 12V20009US Desktop TC M90T GEN 5 I914900 32G N W11P

Overview

The Lenovo ThinkCentre M90t Gen 5 desktop, model 12V20009US, is a high-performance workstation designed for demanding business applications, including video surveillance management and analytics. It provides the processing power and memory needed to run multiple VMS clients, analyze video streams, or host other critical business software without performance bottlenecks. This system is built for environments requiring robust computing capabilities and reliability.

Compatibility

This desktop workstation is compatible with a wide range of surveillance software, including VMS platforms like Milestone XProtect, Genetec Security Center, and Avigilon ACC. Its Intel Core i9-14900 processor and 32GB of RAM support complex video processing tasks. It runs Windows 11 Pro, ensuring broad compatibility with most modern security applications and network infrastructure.

Installation Notes

The Lenovo M90t Gen 5 features a traditional tower form factor, requiring standard desktop space. It includes a Slim DVD RAMBO drive for media access. Connectivity is handled via USB ports and Intel AX211vPro Wi-Fi 6E with Bluetooth 5.1 or above. The system comes with a 3-Year Onsite warranty, providing support directly at your location.

What's in the Box

  • 1x Lenovo ThinkCentre M90t Gen 5 Desktop Workstation (12V20009US)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Windows 11 Pro 64-bit Operating System
  • 3 Year Onsite Warranty
Specifications
Overview: ThinkCentre M90t Gen 5, Intel Core i914900 vPro Ecores up to 4.30GHz, 36MB, Windows 11 Pro 64, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, Traditional,
Processor: Intel Core i9-14900, 24C (8P + 16E) / 32T, Max Turbo up to 5.8GHz, P-core 2.0 / 5.4GHz, E-core 1.5 / 4.3GHz, 36MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to five drives, 2x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 2Wx1
Power Supply: 300W 90%
Stand: No stand
Dimensions (WxDxH: 170 x 298 x 376 mm (6.7 x 11.7 x 14.8 inches)
Weight: Around 6.5 kg (14.3 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews

Lenovo Desktop TC M90T GEN 5 I914900 32G N W11P - 12V20009US

$2,939.00
$2,938.99
