Description

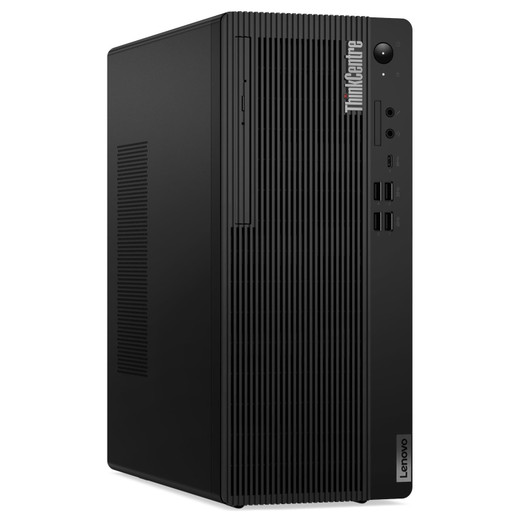

Lenovo 12U00014US ThinkCentre M70t Gen 5 Workstation

Overview

The Lenovo ThinkCentre M70t Gen 5, model 12U00014US, is a business-class desktop workstation engineered for demanding professional workloads. It integrates a high-performance Intel Core i7-14700 vPro processor with 32GB of RAM and a fast 512GB PCIe Gen4 NVMe SSD, providing the computational power and rapid data access required for complex applications, large datasets, and multitasking in environments like video editing, CAD, or data analysis. This system is pre-loaded with Windows 11 Pro, offering advanced security and management features for enterprise deployment.

Compatibility

This workstation is designed to run Windows 11 Pro 64-bit. Its Intel UHD Graphics 770 supports up to three independent displays, making it suitable for multi-monitor setups common in surveillance monitoring stations, financial trading desks, or design studios. The inclusion of an Intel AX211 vPro Wi-Fi 6E card ensures robust wireless connectivity, compatible with modern enterprise networks. The Slim DVD RAMBO drive offers optical media compatibility for legacy data or software distribution.

Installation Notes

The system features a traditional tower form factor, allowing for internal expansion and easy access to components. It includes multiple USB ports for peripheral connectivity and supports Bluetooth 5.1 or higher for wireless device pairing. The 3-Year Onsite warranty provides a baseline level of support, ensuring minimal downtime for critical business operations.

What's in the Box

  • 1x Lenovo ThinkCentre M70t Gen 5 Workstation (12U00014US)
  • 1x 512GB M.2 2280 PCIe Gen4 TLC Opal SSD
  • 1x 32GB DDR5 RAM Module
  • 1x Intel AX211 vPro Wi-Fi 6E Module
  • 1x Slim DVD RAMBO Drive
  • 1x Windows 11 Pro 64-bit Operating System
  • 1x Power Cable
  • 1x Keyboard
  • 1x Mouse
Specifications
Overview: ThinkCentre M70t Gen 5, Intel Core i714700 vPro Ecores up to 4.20GHz, 33MB, Windows 11 Pro 64, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, Traditional,
Processor: Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-5600
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 2Wx1
Power Supply: 260W 90%
Dimensions (WxDxH: 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
Weight: Around 5.9 kg (13.0 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Country of Origin: Mexico
UNSPSC: 43211508
