Description

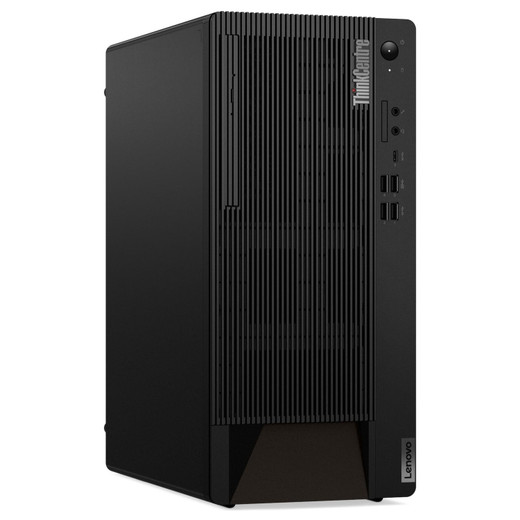

Lenovo 12V20004US Desktop TC M90T GEN 5 I714700 32G N W11P

Overview

The Lenovo ThinkCentre M90t Gen 5 desktop workstation, model 12V20004US, is engineered for demanding business environments requiring robust processing power and reliability. It features an Intel Core i7-14700 vPro processor with up to 4.20GHz and 33MB cache, paired with 32GB of RAM, providing substantial capacity for multitasking and complex applications. This configuration is ideal for deployment in security operations centers (SOCs) or IT infrastructure management roles where performance and stability are paramount.

Compatibility

This Lenovo ThinkCentre M90t Gen 5 workstation is designed for general business computing and can serve as a platform for running VMS clients, analyzing video streams, or managing network devices. It is compatible with standard business peripherals and network infrastructure. For video surveillance applications, it is suitable for hosting VMS client software that connects to network video recorders or IP cameras. It supports Intel AX211 vPro Wi-Fi and Bluetooth 5.1 or above for wireless connectivity.

Installation Notes

The M90t Gen 5 features a traditional tower form factor, allowing for easy placement on a desk or within a standard server rack with appropriate accessories. It includes multiple USB ports for peripheral connectivity and a Slim DVD RAMBO drive for optical media. The system comes with Windows 11 Pro 64-bit pre-installed, simplifying initial setup and deployment. The included 3-Year Onsite warranty ensures minimal downtime for critical business operations.

What's in the Box

  • 1x Lenovo ThinkCentre M90t Gen 5 Tower Workstation
  • 1x Keyboard
  • 1x Mouse
  • 1x Power Cord
  • 1x Windows 11 Pro 64-bit
Specifications
Overview: ThinkCentre M90t Gen 5, Intel Core i714700 vPro Ecores up to 4.20GHz, 33MB, Windows 11 Pro 64, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, Traditional,
Processor: Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to five drives, 2x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 2Wx1
Power Supply: 300W 90%
Stand: No stand
Dimensions (WxDxH: 170 x 298 x 376 mm (6.7 x 11.7 x 14.8 inches)
Weight: Around 6.5 kg (14.3 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews

Lenovo Desktop TC M90T GEN 5 I714700 32G N W11P - 12V20004US

$2,749.00
$2,748.99
