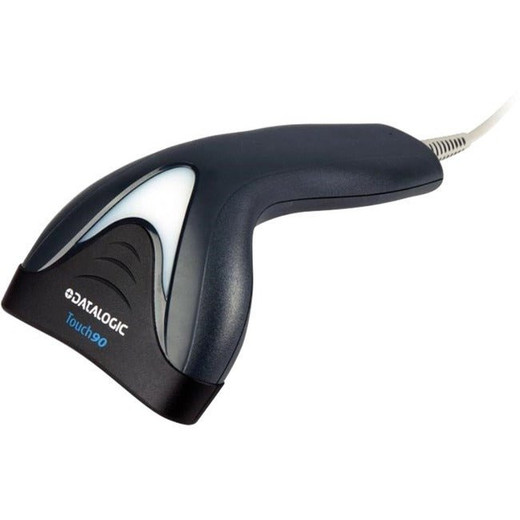

Datalogic TD1120-BK-90K1 Contact Linear Barcode Scanner
The Datalogic TD1120-BK-90K1 is a compact, wired 1D contact linear imager purpose-built for close-range barcode capture in retail, office, and document processing environments. This model combines fixed-distance imaging with USB connectivity to eliminate battery management overhead and deliver consistent data capture in high-volume scanning workflows.
Key Features
- 1D Contact Linear Imager: Reads standard 1D barcodes at a fixed optimal distance, eliminating operator training for scan angle and positioning — particularly valuable in retail checkout and document processing where throughput matters more than flexibility.
- USB Wired Connectivity: Draws power directly from the host device via USB, removing battery logistics and downtime from your scanning fleet. No charger rotation, no failed batteries mid-shift.
- 82-gram weight (2.9 oz): Light enough for all-day handheld use without operator fatigue, yet substantial enough to feel durable in high-traffic environments.
- Compact form factor (51 x 114 x 30 mm / 2.0 x 4.5 x 1.2 inches): Fits tight spaces at checkout counters, service desks, and document stations where desk real estate is constrained. Reduces clutter and integrates into existing workstations without layout disruption.
- 1.5 m (5 ft) drop rating: Can survive accidental drops from waist height to tile or concrete floors. A practical safety margin for retail and warehouse handling — not rugged enough for heavy-duty field repair work, but solid for indoor point-of-sale and office environments.
- Low power consumption: Draws minimal current from USB, so it won't strain your host terminal's power budget and poses no load concern on legacy POS systems with limited USB power output.
- 3-Year Limited Warranty: Covers defects and aligns with typical enterprise hardware refresh cycles (24–36 months), reducing total cost of ownership calculations for mid-range standardized fleet deployments.
Integration and Deployment Context
The TD1120-BK-90K1 integrates with any host system supporting standard USB HID keyboard emulation — the barcode data arrives as text keystrokes, requiring no special driver installation on Windows, macOS, or Linux. This plug-and-play behavior works with point-of-sale terminals, document imaging systems, and enterprise data capture platforms without custom integration effort. Organizations standardizing on the Touch TD1100 family benefit from simplified fleet management, reduced spare parts complexity, and streamlined staff training across multiple locations. The barcode scanner category includes higher-performance alternatives for extended-distance scanning, wireless mobility, or 2D barcode (QR/Data Matrix) requirements — use this model where fixed-position, repetitive 1D scanning is the primary workflow.
For IT teams, the wired architecture eliminates wireless interference concerns common in congested retail environments and removes dependency on battery health monitoring. The standardized USB interface means you can swap units without reconfiguration. Optional extended warranty programs (Datalogic EaseOfCare) provide multi-year protection and expedited repair services if device downtime disrupts operations.
When to Choose a Different Model
If your workflow requires 2D barcode reading (QR codes, Data Matrix), wireless mobility across a facility, or longer-distance scanning (beyond the 6.5–9.0 cm contact window), evaluate other options in the Datalogic barcode scanner line — imagers with adjustable focal distance or handheld presentation scanners. The wired design also rules this model out for mobile point-of-sale carts or field service applications where tethering to a terminal is impractical.
Frequently Asked Questions
Q: What barcodes does the TD1120-BK-90K1 read?
A: Standard 1D linear barcodes (UPC, Code 39, Code 128, EAN, ITF, Codabar, and similar symbologies). It does not read 2D codes like QR or Data Matrix.
Q: Do I need to install drivers?
A: No. The scanner uses standard USB HID keyboard emulation, so it works immediately on any Windows, macOS, or Linux system without driver installation.
Q: Can I use the TD1120-BK-90K1 wirelessly?
A: No, this model is wired USB only. If wireless mobility is required, consult Datalogic's wireless handheld scanner options.
Q: What is the scan distance for this scanner?
A: The contact linear imager is optimized for fixed-distance scanning at approximately 6.5–9.0 cm (2.6–3.5 inches) from the barcode. This fixed window eliminates variable positioning and operator error.
Q: Is the TD1120-BK-90K1 rated for outdoor use?
A: No, this is an indoor device. The 1.5 m drop rating and low power consumption are designed for retail, office, and warehouse indoor environments, not outdoor or extreme-temperature deployments.
Q: What is the warranty coverage?
A: Datalogic provides a 3-Year Limited Warranty covering manufacturing defects and normal wear. Extended warranty and support plans are available through Datalogic's EaseOfCare program.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic TD1120-BK-90K1 represents the pragmatic engineering choice for environments with predictable, repetitive 1D barcode workflows. Unlike omnidirectional imagers that require operator training in scan angle and positioning, the contact linear imager imposes a fixed 6.5–9.0 cm reading window. This constraint eliminates user variability and scan failures — a measurable advantage in high-volume retail point-of-sale and document processing where staff turnover and training time directly impact labor cost.
Technical Highlights:
- USB HID Keyboard Emulation: The scanner presents barcode data as plain text keystrokes to the host system. This means zero driver installation and immediate plug-and-play compatibility with Windows, macOS, and Linux — reducing IT deployment friction compared to proprietary SDK integrations.
- 82-gram form factor with wired power: The combination of lightweight design and direct USB power delivery eliminates battery lifecycle concerns. In a distributed retail chain running 50+ units across locations, you avoid charger management, battery replacement costs, and unexpected downtime from depleted batteries mid-shift.
- 1.5 m drop survival rating: The 5-foot drop tolerance accommodates typical accidental falls from checkout counters and service desks to tile and concrete floors. It's not rugged enough for heavy warehousing or field service work, but it covers the indoor retail and office damage scenarios that represent the bulk of real-world incidents.
Deployment Considerations:
- The fixed contact scanning distance (6.5–9.0 cm) is a feature, not a limitation — it enforces operator discipline and eliminates the variability that causes scanning errors in high-volume environments. But if your workflow includes variable barcode positions or distances, this model will frustrate operators and increase rescan rates.
- Wired USB means the scanner must stay tethered to the host terminal. Mobile point-of-sale carts, roaming inventory picking, and field service technicians should evaluate wireless alternatives instead.
- The 3-year warranty aligns with standard enterprise hardware refresh cycles. Budget for EaseOfCare extended coverage if downtime on a single malfunctioning unit exceeds 4–6 hours of retail revenue impact.
Best suited for retail chains, libraries, and document processing operations running standardized checkout workflows with high transaction volume and consistent staffing. The wired, fixed-distance design removes operator training overhead and delivers predictable scanning reliability — exactly what mid-market point-of-sale deployments need.
