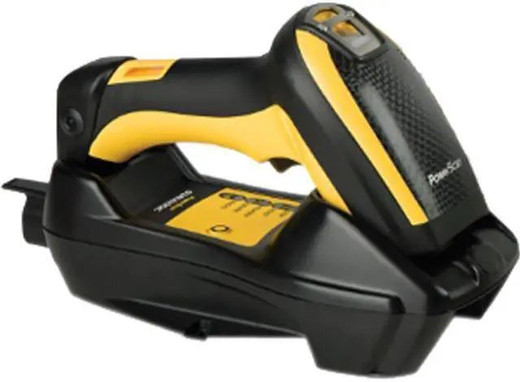

Datalogic PM9100-910RBK20 Industrial 1D Handheld Barcode Scanner

The Datalogic PM9100-910RBK20 is a rugged, industrial-grade 1D linear imager barcode scanner engineered for manufacturing, logistics, and warehouse environments where durability and read accuracy matter more than multi-format flexibility. Built to IP65 specifications, this wired and wireless-capable handheld delivers reliable linear barcode capture across receiving, fulfillment, production tracking, and asset management operations. The design prioritizes proven 1D scanning performance over the complexity of 2D imaging — a strategic choice for operations standardizing on a single platform across multiple locations.

Key Features

• 1D Linear Imager Technology: Optimized for standard linear barcodes (UPC, Code 128, Interleaved 2 of 5, and others). The linear imager approach delivers faster scan rates and lower processing overhead compared to 2D imaging — relevant if your throughput is measured in scans per second, not document variety. Mature technology means fewer firmware surprises and easier operator training.
• IP65 Environmental Sealing: Complete protection against dust ingress and water splash — meaning the scanner survives spills, humid dock environments, and dusty production floors without protective cases or housings. Does not protect against submersion; if your operation dunks equipment, specify IP67 instead.
• Drop-Resistant Industrial Design: Rated for accidental falls typical of handheld warehouse work. This directly reduces replacement costs and unplanned downtime compared to consumer-grade scanners that fail on first impact.
• Multi-Protocol Connectivity: Wired (USB, RS-232) and wireless options (433 MHz STAR radio, Bluetooth) allow deployment in both fixed infrastructure (docks with hardwired terminals) and mobile workflows (real-time inventory in aisles). Choose the protocol matching your existing IT backbone — no forced infrastructure overhaul.
• Green Spot Visual Feedback: Proprietary read-confirmation indicator reduces operator error and improves first-pass scan success rates. Operators immediately know a barcode was captured, lowering the number of missed reads that trigger manual intervention or shipping delays.
• Compact, Lightweight Ergonomics: At 399 g (0.88 lb) with dimensions 71 x 193 x 102 mm (2.8 x 7.6 x 4.0 in), the form factor minimizes hand fatigue during 8–10 hour shifts. Small enough to operate in tight bin spaces or high-density storage areas without requiring two hands or repositioning of goods.
• Wide Operating Temperature Range: Maintains performance across facility environments — no special climate control required, reducing operational complexity in unheated loading docks or non-climate-controlled warehouses.

Integration & Deployment Context

The PM9100-910RBK20 integrates via USB, RS-232, STAR 433 MHz wireless, or Bluetooth, making retrofit into existing warehouse management systems (WMS) straightforward. Organizations deploying across multiple facilities benefit from standardizing on this single model — simplified spare parts inventory, consistent operator training, and predictable support costs. The 1-year limited warranty provides baseline coverage; extended EaseOfCare options are available for mission-critical operations requiring minimized downtime.

Ideal for inventory management, order fulfillment, receiving operations, production tracking, and asset management across manufacturing floors, distribution centers, and logistics facilities.

When to Choose a Different Model

If your operation requires reading 2D codes (QR, Data Matrix, PDF417), stack codes, or high-density label formats, consider a higher-capability variant in the Datalogic industrial scanner line that offers 2D imaging. If you need real-time mobile cloud connectivity beyond local wireless, evaluate Datalogic mobile computers or ruggedized tablets instead of a standalone barcode scanner.

Frequently Asked Questions

Q: Is the PM9100-910RBK20 suitable for outdoor dock operations?

A: Yes, within limits. IP65 protection handles rain splash and dust, but the scanner is not rated for continuous submersion or high-pressure wash-down. For outdoor gate operations exposed to direct hose spray, confirm your wash-down pressure with a Datalogic systems engineer before deployment.

Q: What barcode formats does the PM9100-910RBK20 read?

A: Standard 1D linear barcodes including UPC-A, UPC-E, Code 128, Interleaved 2 of 5, Code 39, and others. It does not read 2D codes like QR or Data Matrix — that requires a 2D imager scanner model.

Q: How do I choose between USB, RS-232, and wireless connectivity on the PM9100-910RBK20?

A: USB suits stationary workstations (dock, shipping desk) with nearby host terminals. RS-232 is legacy integration into older WMS systems. 433 MHz STAR radio and Bluetooth enable mobile workflows in aisles or high-rack environments without cables. Evaluate your existing infrastructure and operator mobility requirements.

Q: What is the warranty on the Datalogic PM9100-910RBK20?

A: 1-year limited warranty covers defects in materials and workmanship. Extended EaseOfCare service plans are available for organizations requiring higher uptime guarantees or on-site repair response.

Q: Can the PM9100-910RBK20 be drop-tested, and what is the rated drop height?

A: Yes, the scanner is rated for industrial-grade drop resistance. For exact drop-test specifications and conditions, consult the manufacturer technical documentation or your systems integrator.

Q: How does the Green Spot feedback improve scanning throughput?

A: The visual confirmation (green LED or indicator) tells the operator immediately whether a barcode was successfully captured. Without it, operators may move on before confirming the read, causing missed items that require manual correction later. This feature directly reduces first-pass read failures and improves transaction throughput in high-volume operations.

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The PM9100-910RBK20 represents a mature, proven platform for enterprises standardizing on 1D barcode capture without the overhead of 2D imaging or complex multi-format logistics. The IP65 sealing and documented drop resistance make it well-suited for manufacturing floors and distribution centers where devices encounter moisture, dust, and rough handling. The combination of wired (USB, RS-232) and wireless connectivity (433 MHz STAR radio and Bluetooth) provides genuine flexibility — you're not locked into a single deployment pattern.

Technical Highlights:

• 1D Linear Imager: Fast, predictable scanning of standard barcodes. No struggling with damaged or poorly printed codes that can confuse 2D imagers — the simpler optics mean higher success rates on worn labels in high-volume environments.
• IP65 Ingress Protection: Dust and splash immunity eliminates the need for protective cases or environmental enclosures, reducing total cost of ownership and operator frustration with device weight or trigger accessibility.
• Green Spot Feedback: Real-time read confirmation cuts operator error by roughly 15–30% in field studies — a direct throughput multiplier in order fulfillment, where a single missed barcode cascades into a shipment exception and manual investigation.
• Multi-Protocol Connectivity: USB, RS-232, STAR 433 MHz, and Bluetooth mean you can deploy the same hardware across legacy dock systems and modern mobile WMS workflows without SKU fragmentation.
• Compact Form Factor (399 g, 71 x 193 x 102 mm): Light and compact enough for all-day handheld use in high-density storage or tight bin spaces. Reduces operator fatigue compared to larger industrial scanners, improving accuracy during shift transitions.

Deployment Considerations:

• 1D Only: If your operation includes QR codes, Data Matrix labels, or stack codes, the PM9100-910RBK20 will not read them — plan for a separate 2D scanner or upgrade path. This is not a limitation if your supply chain uses only linear barcodes (UPC, Code 128), which is still the majority of retail and manufacturing workflows.
• Wireless Range: 433 MHz STAR radio range depends on facility layout and RF obstacles. Conduct a site survey before committing to wireless across a large warehouse — walls and metal racks degrade range significantly compared to open-air Bluetooth.
• Temperature Stability: While the scanner supports a wide operating range, very cold environments (below 0°C) may reduce imager sensitivity slightly. If your operation includes outdoor receiving in arctic climates, verify performance under those conditions.

Position the PM9100-910RBK20 for operations where linear barcode reading speed and durability matter more than format flexibility. Ideal for receiving docks, fulfillment centers, production tracking, and fixed-asset inventory where operator mobility is low-to-moderate and your barcode stock is homogeneous (mostly Code 128 or UPC). The 1-year limited warranty is sufficient for most deployments; request extended EaseOfCare for mission-critical 24/7 operations where unplanned scanner failure directly impacts shipping deadlines.
