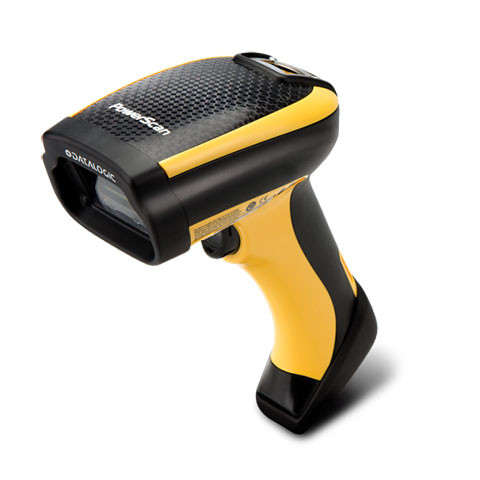

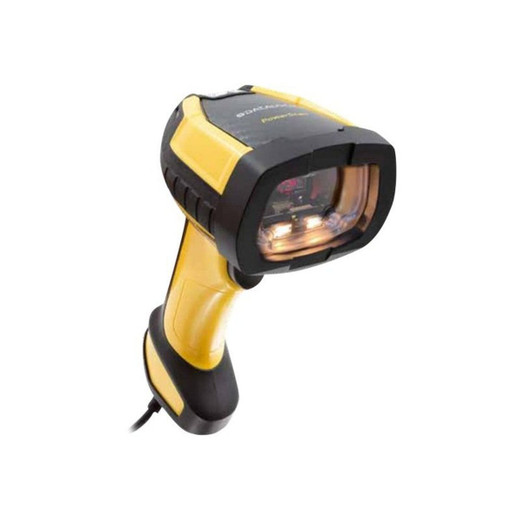

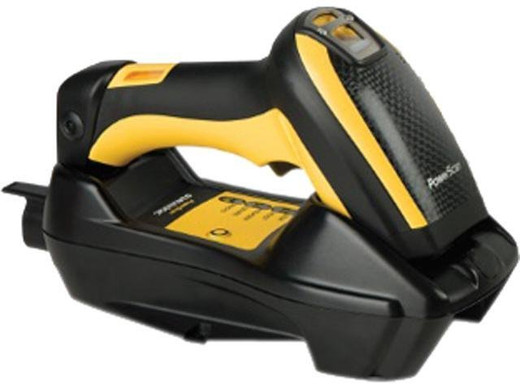

Datalogic PM9100-910RB 1D Linear Barcode Scanner
The Datalogic PM9100-910RB is a rugged 1D linear imager scanner purpose-built for high-volume barcode capture in manufacturing, logistics, and warehouse environments. This model combines proven imaging technology with IP65-rated sealed construction and industrial-grade impact protection, delivering reliability where downtime directly impacts order fulfillment and inventory accuracy.
Key Features
- 1D Linear Imager Technology: Fast, accurate barcode reads across standard UPC, Code 128, and linear symbologies. Linear imagers excel at speed—no decoding overhead—making them ideal for high-throughput receipt, dispatch, and line-side scanning where throughput matters more than 2D or image capture capability.
- IP65 Ingress Protection: Dust and moisture won't compromise internal optics or electronics. IP65 means the scanner handles washdown environments, packed storage areas, and outdoor loading docks without degradation. If you need full submersion, skip this model and specify IP67 or higher.
- Industrial Drop Resistance: Built to withstand typical warehouse drop events from operator height. This translates to lower replacement rates and reduced total cost of ownership compared to consumer-grade scanners that crack on first impact.
- Multi-Protocol Connectivity: USB, RS-232, STAR 433 MHz radio, and Bluetooth wireless options in one device. This flexibility matters: you can deploy the same model across legacy serial-based systems, modern USB docks, and wireless-first mobile workflows without SKU proliferation or retraining operators on different hardware.
- Datalogic Green Spot Visual Feedback: Instant confirmation of successful reads without relying on audio beeps—critical in loud warehouse environments or where audio feedback is impractical. Reduces operator uncertainty and improves data confidence.
- Lightweight at 399g (0.88 lb): All-day handheld use without fatigue, especially important for high-volume picking and packing roles where cumulative hand strain drives operator turnover.
- Wide Operating Temperature Range: Operates reliably across diverse environments—from cold storage to warm loading areas—without performance drift. Eliminates need for separate device families for different climate zones.
- Compact Form Factor (71 x 193 x 102 mm): Ergonomic grip and pocket-friendly dimensions mean operators can carry it all shift without bulk. Reduces damage from drops because the device spends more time in-hand than dropped on concrete.
Connectivity and Integration
The PM9100-910RB's multi-protocol support is a key differentiator. Wired modes (USB, RS-232) provide rock-solid reliability for stationary scanning stations and docking scenarios, eliminating battery management overhead. Wireless options—STAR 433 MHz radio and Bluetooth—enable mobile workflows in warehouses where fixed scanners aren't practical. A single device model streamlines procurement, reduces training complexity, and simplifies spare parts inventory across multi-facility operations.
Deployment Context
This scanner is purpose-built for high-volume, single-task barcode capture. Deploy it on receiving lines, shipping docks, manufacturing floor tracking, and inventory cycle counts where linear 1D barcode reading is the primary workload. Organizations standardizing on the Datalogic PowerScan line benefit from consistent support, accessory compatibility, and ecosystem tools across warehouse, production, and logistics operations. The 1-year limited warranty with factory repair support provides predictable support costs for large fleets.
When to Choose a Different Model
If your workflow requires 2D barcode reading (QR codes, Data Matrix), advanced image capture, or mobile computing beyond scanning, consider higher-capability variants within the Datalogic barcode scanner family. The PM9100-910RB excels at linear barcodes; don't force it to do document imaging or 2D decode work it wasn't designed for.
Frequently Asked Questions
Q: Does the PM9100-910RB support 2D barcodes like QR codes?
A: No. The PM9100-910RB is a 1D linear imager designed exclusively for linear symbologies (UPC, Code 128, Code 39, etc.). For QR or Data Matrix decoding, specify a 2D imaging scanner from the Datalogic portfolio.
Q: What is the effective read range on the PM9100-910RB?
A: Linear imagers achieve best performance at close range (4–10 inches for standard UPC). Consult the Datalogic PM9100 family datasheet for precise range curves based on barcode density and lighting conditions.
Q: Can I use the PM9100-910RB in a freezer or wet environment?
A: The IP65 rating handles dust and splash, and the scanner operates across a wide temperature range. However, if you're in full freezer with condensation cycles, verify thermal cycling performance with Datalogic field support before committing a large fleet.
Q: Is the PM9100-910RB NDAA Section 889 compliant?
A: Compliance details are not specified in the available evidence. Contact Datalogic's compliance team directly if NDAA compliance is a procurement requirement.
Q: What warranty does the PM9100-910RB include?
A: The PM9100-910RB includes a 1-year limited warranty with factory support and repair services. Extended warranty options (EaseOfCare) are available through Datalogic's service program.
Q: Does the PM9100-910RB work with Datalogic Aladdin configuration software?
A: The multi-protocol connectivity (USB, RS-232) supports integration with standard Datalogic provisioning tools. Confirm specific software version compatibility with Datalogic technical support.
The Datalogic PM9100-910RB represents a mature, field-proven platform in the linear barcode capture space. The combination of 1D linear imager technology with IP65 sealing and industrial-grade drop resistance positions this device as a cost-effective choice for enterprises prioritizing durability and total cost of ownership over advanced imaging capabilities like 2D decoding or image capture. The multi-protocol connectivity (USB, RS-232, STAR 433 MHz, Bluetooth) is a genuine advantage for environments where device flexibility across legacy and modern infrastructure is non-negotiable.
Technical Highlights:
- 1D Linear Imager Engine: Delivers fast, reliable reads on standard linear symbologies without the processing overhead of 2D imaging. In high-volume scanning (1000+ reads per shift), linear imagers outpace image-based decoders on speed alone—a real throughput difference on busy packing lines.
- IP65 Dust and Moisture Sealing: Extends device lifespan by preventing condensation and particulate ingress into the optical path. This matters in seasonal warehouses with temperature swings—sealed optics maintain focus clarity when unsealed devices fog.
- 399g Weight with Drop Resistance: Lightweight enough for all-day handheld use without cumulative hand fatigue, yet tough enough to survive operator drops from standing height. This combination reduces both damage-related downtime and long-term worker compensation claims tied to repetitive strain.
- Multi-Protocol Flexibility: Deploy USB on docking stations, RS-232 on legacy backend systems, STAR radio on mobile carts, and Bluetooth on mobile computers—all without retraining or device swapping. This is genuine operational simplification across multi-facility networks.
Deployment Considerations:
- The PM9100-910RB is not a 2D device. If your workflow includes even occasional QR code or Data Matrix reads, you'll need a different device or face constant workarounds. Clarify barcode symbology requirements before committing fleet quantities.
- Linear imagers perform best at close range (4–10 inches for UPC). If you need longer-distance scanning (e.g., scanning barcodes across a conveyor), specify an imaging scanner with longer effective range—the PM9100-910RB will struggle.
- IP65 handles splash and dust, but not full submersion or high-pressure washdown. If you're in meat packing or chemical environments with regular hose-down, verify thermal cycling and moisture ingress patterns on a pilot unit before mass deployment.
Best-fit deployment: high-volume receipt, dispatch, and line-side scanning in manufacturing and logistics where linear 1D barcode reading is the primary task, durable hardware is mandatory, and operators benefit from wireless mobility across multiple departments or facilities.
