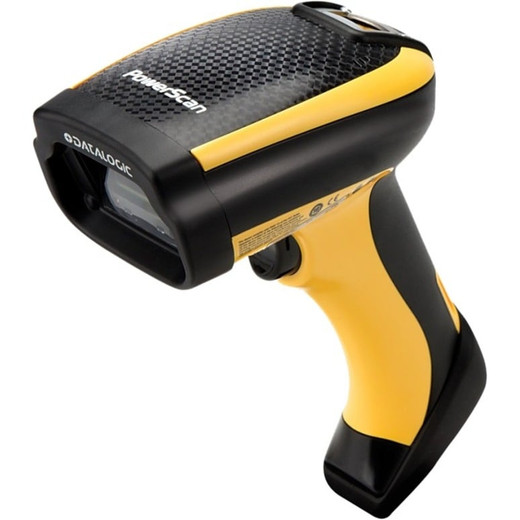

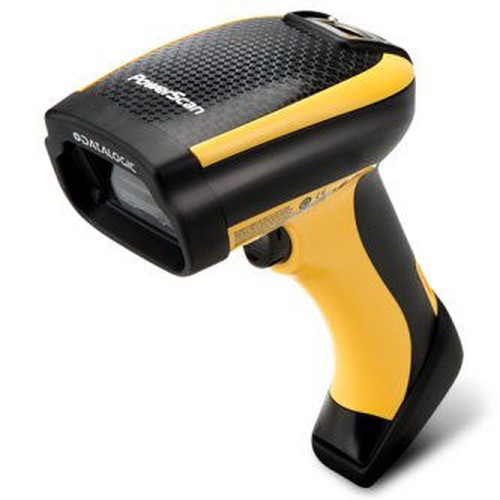

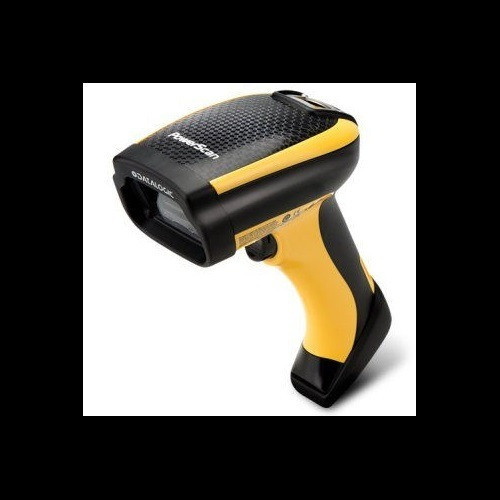

Datalogic PD9130-K1 1D Industrial Barcode Scanner
The Datalogic PD9130-K1 is a wired and wireless handheld barcode scanner engineered for high-impact warehouse, distribution, and manufacturing environments. Built on the PowerScan 9100 platform, this 1D linear imager delivers consistent barcode reads in conditions where durability and connectivity flexibility directly affect operational throughput. The IP65 rating combined with industrial-grade drop resistance means you can deploy this scanner across concrete floors, wet bays, and temperature-extremes without treating it as fragile equipment—a meaningful cost factor when calculating total cost of ownership over a three-to-five-year lifecycle.
Key Features
- 1D Linear Imager Scanning: Fast, reliable capture of standard linear barcodes (Code 128, Code 39, EAN, UPC, etc.). Linear imagers are simpler and cheaper to deploy than 2D imagers and scale well across large fleets, provided your operation doesn't require QR codes or 2D symbols.
- IP65 Ingress Protection Rating: Dust and water spray resistance means the PD9130-K1 survives high-pressure washdowns and dusty environments without housing upgrades. Skip this scanner only if you need full submersion (IP67) or chemical spray protection.
- Industrial-Grade Drop Resistance: Tested for repeated drops to concrete from typical working height. This specification translates to lower device replacement rates and reduced downtime waiting for repairs compared to consumer-grade scanners.
- Multi-Connectivity Options: USB, RS-232, 433 MHz STAR radio, and Bluetooth wireless. Multiple connection types mean you can standardize on one hardware model across fixed docking stations, mobile carts, and roaming handheld operations without swapping devices.
- Datalogic Green Spot Good-Read Feedback: Visual confirmation (bright green LED) that a barcode was successfully captured. Reduces double-scanning errors and operator hesitation, especially in loud or visually complex environments.
- Compact Form Factor at 399 Grams: Lightweight enough for extended handheld scanning (8-hour shifts) without significant fatigue. Dimensions of 71 × 193 × 102 mm fit standard holster designs and reduce strain on warehouse staff during high-volume capture days.
- Wide Operating Temperature Range: Performs reliably in unheated warehouses, refrigerated environments, and outdoor loading docks. Temperature stability removes the need for separate indoor/outdoor device inventory.
Integration and Deployment
The PD9130-K1 integrates with most warehouse management systems (WMS) and inventory platforms via standard USB or RS-232 serial protocols. The wireless STAR 433 MHz option provides coverage up to typical facility dimensions without requiring IT infrastructure upgrades (WiFi access points). Bluetooth connectivity enables pairing to mobile devices or tablets for flexible workflows. Consider this scanner when you operate multiple distribution centers and need a single hardware SKU that supports docking-station scanning, mobile cart operations, and handheld receiving workflows—fleet standardization reduces training overhead and simplifies spare parts management.
The 1-year limited warranty includes factory support through Datalogic barcode scanners partner channels. Extended coverage is available through EaseOfCare programs if your operation requires multi-year protection.
When to Choose a Different Model
If your facility uses 2D barcodes (QR codes, DataMatrix, PDF417), upgrade to a Datalogic 2D imager model in the same PowerScan family—the form factor and ergonomics remain identical, only the scanning engine changes. If your environment requires full submersion or chemical resistance beyond IP65, consult Datalogic's IP67-rated variants. For ultra-lightweight applications (extended-wear body-worn scanning), consider the lighter PowerScan Retail line, though those sacrifice industrial durability.
Frequently Asked Questions
Q: Is the PD9130-K1 compatible with my existing WMS?
A: The PD9130-K1 supports standard USB HID, serial RS-232, and wireless protocols (STAR 433 MHz, Bluetooth). Most modern WMS platforms accept keyboard-emulation input via USB or serial, so compatibility is generally not a limiting factor. Verify with your WMS vendor that they support external barcode scanner input—nearly all do.
Q: What is the difference between 1D and 2D scanning?
A: 1D scanners read linear barcodes (Code 128, Code 39, EAN, UPC). 2D scanners read linear barcodes plus 2D codes (QR, DataMatrix, PDF417). 1D imagers are simpler, faster, and cheaper per unit; use 1D if your supply chain labels only linear codes. If you need to capture QR codes or 2D symbols in the future, upgrade to a 2D model in the PowerScan family.
Q: Can I use the PD9130-K1 in a wet environment?
A: Yes. IP65 means the scanner withstands water spray and dust without damage. It is not designed for submersion—do not leave it underwater. High-pressure washdowns and wet floor conditions are fine; if you need full submersion capability, request an IP67-rated variant.
Q: What does the Green Spot feedback do?
A: The Green Spot is a bright green LED that illuminates when a barcode is successfully read. This visual cue lets operators confirm capture without waiting for a beep or system response, reducing scanning errors in noisy environments and speeding up high-volume operations.
Q: Does the PD9130-K1 require a separate power supply?
A: No. Wired operation uses a USB or RS-232 connection that provides power. Wireless (STAR radio, Bluetooth) operation uses an internal rechargeable battery. Battery life depends on usage intensity; consult the datasheet for detailed charge cycles and run-time specs.
Q: What is the warranty on the PD9130-K1?
A: One-year limited warranty from Datalogic, backed by factory support. Extended multi-year coverage is available through EaseOfCare partner programs—contact your distributor for pricing.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic PD9130-K1 represents a proven, no-nonsense approach to fleet-scale barcode scanning: rugged 1D linear imager technology with IP65 sealing and documented drop resistance—the factors that directly lower device replacement rates and downtime in high-impact warehouse operations. The combination of multiple connectivity options (USB, RS-232, STAR 433 MHz wireless, Bluetooth) without requiring separate SKUs is a genuine deployment advantage for organizations running standardized device fleets across multiple facilities.
Technical Highlights:
- IP65 Ingress Protection: Dust and water spray resistance means washdown-tolerant deployments without housing kits or protective enclosures. Saves cost and removes an assembly step.
- Industrial-Grade Drop Resistance: Specified drop tolerance from typical working height reduces replacement cycles compared to consumer devices. On a 500-unit fleet over five years, this durability specification directly affects TCO.
- 1D Linear Imager: Fast, simple scanning engine. No 2D capability, but lower cost-per-unit and simpler fleet management if your supply chain is all linear codes (Code 128, EAN, UPC, Code 39).
- 399-Gram Form Factor: Light enough for 8-hour handheld operations without operator fatigue. Fits standard holsters and warehouse ergonomic design.
- Multi-Protocol Connectivity: One device supports wired (USB, RS-232) and wireless (STAR 433 MHz, Bluetooth). Eliminates the need to stock separate wireless and docked variants.
- Green Spot Good-Read Feedback: Visual (not audio) confirmation reduces scanning errors in noisy environments and speeds validation in high-volume receipt/pick operations.
Deployment Considerations:
- The PD9130-K1 is a 1D-only device. If your operation currently or will soon use QR codes, DataMatrix, or other 2D symbols, upgrade to a Datalogic 2D imager in the PowerScan family—same ergonomics, different scanning engine.
- IP65 handles washdowns and dust, but does not support full submersion (underwater environments). Request IP67 if your facility requires submersion tolerance.
- Wireless operation (STAR 433 MHz) supports typical facility dimensions without WiFi infrastructure. If you operate across a large campus or outdoors with gaps in radio coverage, test signal strength before fleet deployment.
Deploy the PD9130-K1 when standardizing handheld scanning across distribution centers, manufacturing facilities, and cross-dock operations where durability, operator ergonomics, and multi-connectivity flexibility reduce fleet management overhead. The IP65 rating and drop resistance make this scanner a cost-effective choice for high-volume, high-impact environments where device longevity directly improves ROI.
