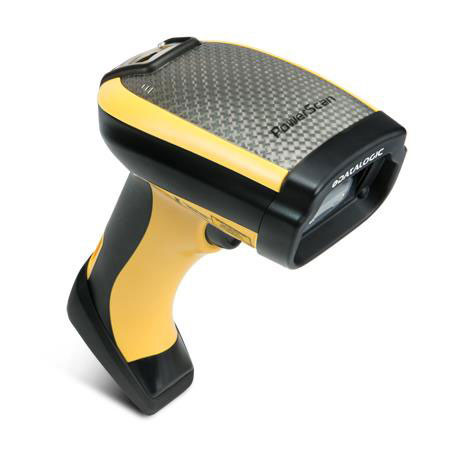

Datalogic PBT9501-DPMRB PowerScan 9500 Industrial Handheld Barcode Scanner
The Datalogic PowerScan 9500 Series, represented by the PBT9501-DPMRB, is a 2D area imager purpose-built for manufacturing, warehouse, and logistics environments where barcode capture speed and durability matter. Unlike older laser scanners or fixed-focus imagers, the PowerScan 9500 pairs a 2D area imager with Liquid Lens autofocus—meaning no manual focus ring and no operator guesswork about distance. The scanner reads 1D and 2D codes in any orientation, reducing user training friction and capture errors. IP65 sealing and a 2.0 m (6.6 ft) drop rating ensure the device survives routine warehouse bumps and spills without field replacement.
Key Features
- 2D Area Imager with Liquid Lens Autofocus: Captures 1D and 2D barcodes at variable distances without mechanical focus adjustment. Eliminates re-training on distance-dependent triggers—your operators can scan from 10 cm to several feet without switching modes or refocusing.
- Omnidirectional Reading: Reads barcodes in any orientation (portrait, landscape, rotated). Cuts training time and operational friction in fast-paced picking or sorting workflows.
- IP65 Environmental Sealing: Dust and water splash won't compromise the scanner. Not submersion-proof (that would require IP67), but it handles typical warehouse moisture and cleaning splash. The 2.0 m drop specification covers standard handling drops onto concrete or pallets—real durability for high-traffic environments.
- Multi-Protocol Connectivity: USB, RS-232, Bluetooth, and STAR 2.0 Radio (100 m range) let you choose wired or wireless deployment. STAR 2.0 proprietary radio extends range well beyond standard Bluetooth, critical in sprawling warehouses where wired infrastructure is impractical or costly to retrofit.
- Extended Battery Endurance: 30,000+ reads per full charge means an operator can work a full 8-12 hour shift without charging mid-shift. Fewer downtime gaps, faster throughput per operator.
- Green Spot Feedback: Datalogic's illuminated good-read indicator confirms successful captures instantly, reducing double-scans and misread frustration. Audible tones also supported for noisy environments.
- Lightweight & Ergonomic Form Factor: 422 g (0.93 lb) weight and compact 71 × 198 × 102 mm dimensions reduce hand and wrist fatigue during extended scanning shifts. Weight matters when operators scan 500+ items per hour.
Integration & Connectivity
The PBT9501-DPMRB integrates into existing enterprise warehouse management systems via USB or RS-232, or wireless via Bluetooth or STAR 2.0 Radio. The multi-protocol design reflects real warehouse architectures—some facilities have legacy serial infrastructure; others run modern wireless networks. STAR 2.0 Radio's 100 m range suits large distribution centers where the scanning zone spans multiple aisles. No special gateway hardware needed for Bluetooth deployment; most modern systems already support standard Bluetooth HID. Datalogic also offers device management and firmware updates through their remote administration tools, reducing on-site service calls.
Applications
- Warehouse & Distribution: Receiving, putaway, picking, packing, and shipping verification. The omnidirectional 2D reading accelerates throughput in high-velocity environments.
- Manufacturing: Production line tracking, work-in-progress identification, and quality checkpoints. Liquid Lens autofocus adapts to variable distances along assembly lines without operator retraining.
- Logistics & Parcel Sorting: Cross-dock operations and last-mile prep. Extended battery life and rugged design suit continuous-shift operations.
- Retail & E-commerce Fulfillment: Inventory counts and order picking. The green-spot feedback and audible tones work in both quiet and noisy retail back-of-house.
Frequently Asked Questions
Q: What barcode formats does the PBT9501-DPMRB read?
A: The 2D area imager engine reads 1D codes (Code 128, Code 39, UPC, EAN, etc.) and 2D codes (QR, Data Matrix, PDF417, Aztec) without mode switching. The Liquid Lens autofocus adjusts for distance; you don't need to manually select a reading profile.
Q: Is the PBT9501-DPMRB suitable for outdoor or wet environments?
A: IP65 rating means dust and water splash are handled, but it is not fully submersible. Wet-floor warehouses and light rain are fine; full water immersion or high-pressure washing requires IP67 or higher. The 2.0 m drop rating is for typical industrial handling, not repeated extreme drops.
Q: Can I use the PBT9501-DPMRB with an existing WMS or ERP system?
A: Yes. USB and RS-232 interfaces integrate into legacy systems with minimal configuration. Bluetooth and STAR 2.0 Radio wireless options work with modern warehouse management systems that support Bluetooth HID or proprietary radio protocols. Check with your WMS vendor if deploying wireless.
Q: How long does the battery last on a single charge?
A: 30,000+ reads per charge, which typically covers a full 8–12 hour shift depending on scan frequency. For multi-shift operations, a spare battery or charging dock is recommended.
Q: What's the warranty on the PBT9501-DPMRB?
A: 1-Year Limited Warranty covers manufacturing defects. Extended warranty and device protection plans are available separately; consult your sales contact for options tailored to your shift schedule and environment.
Q: Does the STAR 2.0 Radio require special infrastructure?
A: STAR 2.0 is a proprietary Datalogic radio protocol operating at 100 m range. It does not require WiFi or Ethernet infrastructure, but you will need a compatible Datalogic radio receiver/bridge connected to your WMS. Bluetooth is an alternative if you have existing Bluetooth infrastructure.
The PBT9501-DPMRB represents Datalogic's mature handheld strategy: eliminate mechanical complexity and operator variance through Liquid Lens autofocus. The 2D area imager (versus older laser scanners) means you're not dealing with moving parts or calibration drift. IP65 sealing and 2.0 m drop rating position this device squarely in the mid-durability tier—suitable for standard warehouse and manufacturing handling, but not for extreme abuse or full submersion scenarios. The real win here is connectivity flexibility. Wired USB/RS-232 serve legacy systems; STAR 2.0 Radio's 100 m range lets you deploy wireless across sprawling facilities without retrofitting WiFi infrastructure. That range and proprietary stability matter more than you might think in noisy, RF-congested warehouse environments where standard Bluetooth can struggle.
Technical Highlights:
- Liquid Lens Autofocus: No mechanical focus adjustment. Reads accurately from 10 cm to several feet without operator retraining. Reduces capture errors in high-velocity picking or sorting lines where distance varies constantly.
- 30,000+ Reads Per Charge: Covers a full 8–12 hour shift for a single operator without mid-shift charging. That translates directly to no downtime gaps and higher throughput per device deployed.
- STAR 2.0 Radio at 100 m Range: Wireless coverage across large distribution centers without WiFi infrastructure overhead. More stable than Bluetooth in RF-rich warehouse environments; backup USB/RS-232 for legacy systems.
Deployment Considerations:
- IP65 Is Not IP67: Water splash and dust are fine; full submersion or high-pressure wash cycles require a higher rating. If your facility does frequent deep cleaning or hose-down protocols, verify environment before deployment.
- STAR 2.0 Radio Requires a Receiver: The 100 m wireless range is only useful if you have a compatible Datalogic radio receiver/gateway wired to your WMS. Don't assume standard Bluetooth will work for long-distance warehouse scanning—STAR 2.0 is the better bet in that scenario, but you need infrastructure support.
- 2.0 m Drop Rating Is Typical Industrial, Not Extreme: Pallet jacks and concrete floors are fine. Repeated 3+ meter drops from racking or intentional abuse will exceed the design envelope.
The PBT9501-DPMRB is a solid fit for high-volume warehouse or manufacturing environments where barcode capture speed, operator fatigue, and connectivity flexibility matter more than extreme ruggedness or deep customization. If your facility already runs Datalogic infrastructure or needs STAR 2.0 wireless reach, this device integrates cleanly. If you need full submersion capability or extreme drop resistance, look to ruggedized mobile computers or industrial PDAs in the Datalogic lineup. For standard picking, packing, and receiving workflows, the PowerScan 9500 is a pragmatic choice with proven platform maturity.
