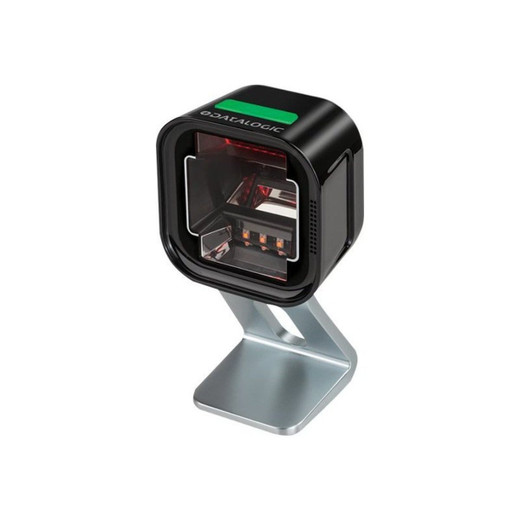

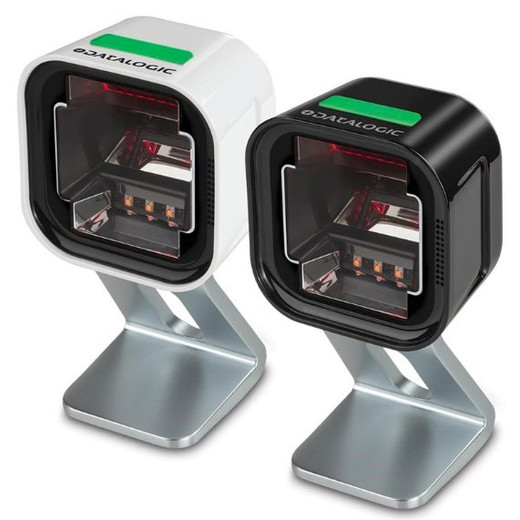

Datalogic MG1501-10231-0200 Magellan 1500i Presentation Barcode Scanner
The Datalogic MG1501-10231-0200 is a compact presentation scanner purpose-built for high-volume checkout and counter environments. With a 1 MP (1280 × 800) 2D area imager and 25 cm optimized read range, this wired scanner captures both 1D linear and 2D matrix codes reliably across retail, hospitality, and service deployments. The ultra-compact 80 × 90 × 79 mm footprint maximizes counter space — a meaningful constraint in tight checkout installations — while IP52 environmental sealing protects against the dust and moisture inherent in food service, grocery, and healthcare settings.
Key Features
- 1 MP 2D Area Imager (1280 × 800): Captures both linear and 2D codes with consistent accuracy at the 25 cm presentation distance typical of handheld or fixed counter-mounted use. No moving parts means reliable performance across multi-shift operations without mechanical wear.
- 25 cm Read Range: Optimized for on-counter presentation workflows. This fixed distance eliminates variability in operator scanning technique — codes must be held at a consistent distance, reducing failed reads and operator frustration in high-throughput lines.
- IP52 Environmental Rating: Protects against dust and water splash, a critical consideration in food service and hospitality environments where frequent sanitization and moisture exposure are routine. Not rated for full submersion; if water-resistant handheld use is required, confirm with site IT before deployment.
- Ultra-Compact Form Factor (80 × 90 × 79 mm, 250 g): Minimal counter footprint without sacrificing scan performance. In space-constrained checkout areas or service counters, this density matters — it won't crowd the point-of-sale terminal or compete for valuable surface real estate.
- Dual Wired Connectivity (USB and RS-232): Wired eliminates battery management, charge scheduling, and wireless pairing overhead. USB simplifies integration with modern POS systems; RS-232 support bridges legacy infrastructure. No wireless means consistent performance in multi-shift environments without signal degradation or interference concerns.
- 5-Year Limited Warranty with Datalogic Factory Support: Extends expected device life and reduces unplanned replacement cost. Factory-authorized repair services minimize downtime — critical in continuous retail operations where scanner failure halts a checkout lane.
Deployment Considerations
The Magellan 1500i is purpose-built for presentation scanning — operators bring codes to the scanner, not vice versa. Its fixed 25 cm read range works well in structured counter environments but is not suitable for mobile or roaming handheld use. Wired connectivity requires proximity to the POS terminal or a switch/hub; if cable run length exceeds available infrastructure, plan for extended RS-232 or USB runs or relocate the scanner closer to the terminal. The IP52 rating handles typical retail cleaning but does not protect against sustained water spray or submersion.
Integration & Compatibility
The MG1501-10231-0200 (often searched as MG1501 10231 0200) integrates with any POS system supporting USB or RS-232 input. No proprietary drivers or complex configuration are required — the scanner appears as a keyboard input to the operating system, allowing barcode data to populate checkout fields directly. Datalogic's proven imaging engine maintains compatibility across mainstream POS platforms used in retail, hospitality, and quick-service restaurant environments. Multi-location deployments benefit from standardized hardware — spare parts logistics, operator training, and device replacement follow a predictable path.
What's in the Box
The MG1501-10231-0200 ships with the presentation scanner unit. For mounting, cable assemblies, or stand hardware, consult the manufacturer documentation or contact your systems integrator.
Frequently Asked Questions
Q: Is the Datalogic MG1501-10231-0200 suitable for handheld scanning?
A: No. The Magellan 1500i is optimized for presentation scanning — operators bring barcodes to the fixed scanner on a counter or mount. Its 25 cm read range is set for that distance. For handheld or mobile scanning, consult a handheld barcode scanner or mobile computer platform within the Datalogic range.
Q: Does the MG1501-10231-0200 work with legacy RS-232 POS terminals?
A: Yes. The scanner supports both USB and RS-232 connectivity, allowing integration with both modern and legacy POS infrastructure. Confirm cable and connector type with your systems integrator during site survey.
Q: What is the warranty period on the MG1501-10231-0200?
A: The Magellan 1500i includes a 5-year limited warranty backed by Datalogic factory support and certified repair services.
Q: Can the MG1501-10231-0200 handle food-service environments?
A: Yes. The IP52 rating protects against dust and water splash, making it suitable for quick-service restaurants, grocery checkouts, and food-service counters where moisture and sanitation cycles are common. However, it is not rated for full submersion.
Q: What symbologies does the MG1501-10231-0200 read?
A: As a 2D area imager, the scanner decodes both 1D linear codes (UPC, Code 128, etc.) and 2D matrix codes (QR, Data Matrix, etc.). Specific symbology support should be confirmed with the manufacturer documentation.
Q: Does the MG1501-10231-0200 require any external power supply?
A: Power delivery depends on the connectivity method — USB provides power directly, eliminating the need for a separate power supply in most POS installations. RS-232 connectivity may require external power; confirm with your systems integrator during deployment planning.
The Datalogic MG1501-10231-0200 directly addresses a specific deployment need: high-throughput counter environments where presentation scanning is the norm and space is constrained. Its 1 MP 2D area imager is not the highest resolution in the Datalogic portfolio, but at a fixed 25 cm read distance, it delivers consistent accuracy without operator guesswork — a real advantage in high-volume retail lines where fatigue and technique variability cause read failures.
Technical Highlights:
- 1 MP 2D Imager (1280 × 800): Sufficient resolution for standard retail barcodes at 25 cm. The imaging engine prioritizes consistency over range — useful when you control the scanning distance and want to minimize failed reads in rapid-fire checkout sequences.
- IP52 Environmental Sealing: Dust and splash protection are mandatory in food-service and grocery settings. This rating allows routine sanitization without sensor degradation — a practical consideration overlooked in consumer-grade scanners but essential for 24/7 retail operations.
- Wired Dual Connectivity (USB and RS-232): Eliminates battery management and wireless pairing complexity. USB simplifies modern POS integration; RS-232 bridges legacy systems. In multi-shift operations, wired reliability outweighs wireless convenience — no missed scans due to signal loss or dead batteries.
Deployment Considerations:
- The 25 cm fixed read distance is a feature for presentation scanning but a limitation if you anticipate future roaming or mobile use. This scanner is not portable — it's a checkout fixture.
- Wired connectivity requires cable management and proximity to the POS terminal. In retrofit installations with long cable runs, budget for extended runs or plan terminal relocation.
- The 5-year warranty is valuable, but confirm repair service availability in your region — Datalogic maintains factory support, but response time and parts availability vary by geography.
The MG1501-10231-0200 is the pragmatic choice for multi-location retail and hospitality chains standardizing on fixed presentation scanning across checkouts. It prioritizes uptime and consistency over feature density — exactly what high-volume environments need. If your site requires handheld mobility or ultra-long-range scanning, this is not the model. But for seated or counter-based POS workstations in food service, grocery, or hospitality, the proven imaging platform and IP52 durability justify the investment across a fleet.
