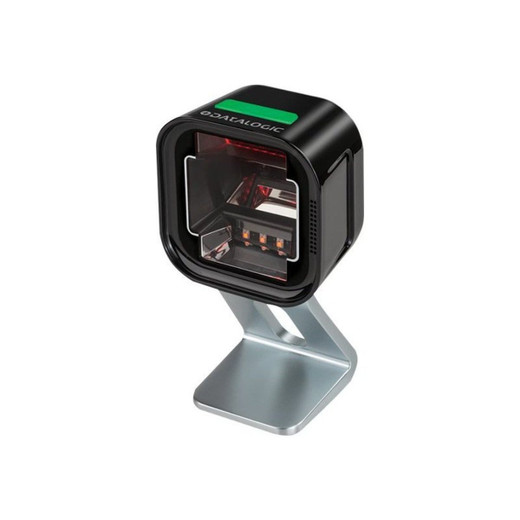

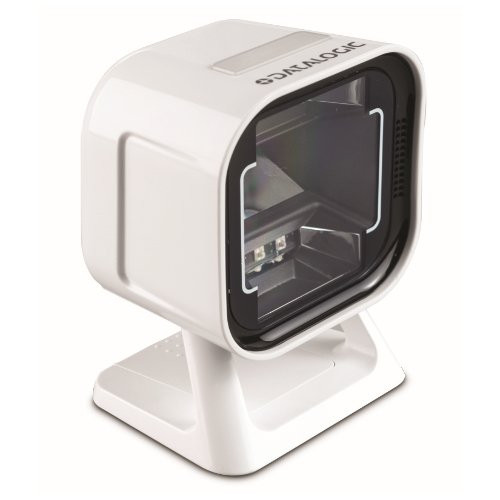

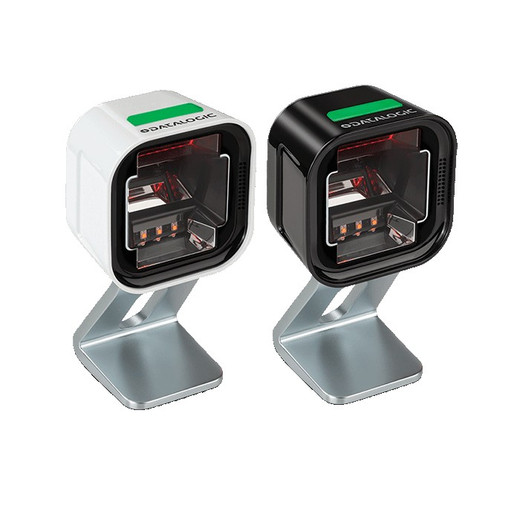

Datalogic MG1501-10210-0200 Magellan 1500i Presentation Scanner
The Datalogic MG1501-10210-0200 is a fixed-mount imaging scanner engineered for high-transaction retail, logistics, and service counter environments where space is constrained and barcode read reliability cannot slip. Built on the proven Magellan platform, this presentation-mode scanner combines 1 MP 2D imaging with a footprint small enough (80 × 90 × 79 mm) to fit into existing counter layouts without rework.
Key Features
- 1 MP 2D area imager (1280 × 800 resolution): Captures both linear barcodes and 2D matrix codes—QR, Data Matrix, PDF417—in a single read pass. The 1 MP sensor delivers sufficient pixel density to resolve standard retail barcodes at the 25 cm read distance without requiring a hand-scanner approach, reducing checkout friction in high-volume environments.
- 25 cm fixed read range: Optimized for presentation scanning—customers set items down on the counter and the scanner reads automatically. Unlike longer-range models, this distance eliminates the ergonomic strain of hand-held scanning and suits small-footprint checkout islands and service counters.
- IP52 environmental sealing: Dust and splash protection suitable for retail environments where cleaning agents, condensation, and incidental spills occur regularly. IP52 is adequate for countertop use but not designed for washdown or full submersion—if your deployment involves direct spray or immersion, you'll need an IP67-rated alternative.
- Dual connectivity (USB and RS-232): USB connects directly to modern POS terminals and workstations; RS-232 supports legacy serial infrastructure still found in many enterprise chains. This redundancy simplifies mixed-age fleet deployments and avoids the cost of wholesale system replacement.
- Lightweight 250 g construction: Reduces mounting load on counter stands and simplifies bracket installation. For facilities managing dozens of checkout stations, weight and ease of installation compound into real labor savings during rollout and maintenance cycles.
- Ultra-compact form factor: 80 × 90 × 79 mm dimensions mean the scanner occupies minimal counter real estate—critical when space is leased by the square inch in retail locations.
Integration and Deployment Context
The MG1501-10210-0200 integrates into existing POS networks without requiring specialized middleware. USB mode works plug-and-play with most modern terminals; RS-232 mode maintains compatibility with legacy systems where Ethernet hasn't yet reached the checkout line. The presentation-scanner design suits environments where throughput matters—retail chains, warehouse receiving docks, library circulation desks, and healthcare specimen intake stations all benefit from the "set and forget" scanning workflow.
Datalogic's Magellan platform family benefits from standardized spare parts, cross-compatible accessories, and field-proven repair networks. The 5-Year Limited Warranty, backed by Datalogic factory support, aligns with enterprise capital planning and reduces mean-time-to-repair downtime. For multi-location deployments, this ecosystem support translates directly to lower total cost of ownership and simplified fleet management.
When to Choose a Different Model
If your deployment requires longer read distances (beyond 25 cm), consider a higher-range variant within the Magellan line. If IP67 submersion protection or washdown resistance is necessary, look to industrial-rated imaging scanners outside the presentation category. If you need integrated barcode generation or label printing alongside scanning, explore combination printer-scanner solutions. For hand-held mobile scanning in warehouse or field environments, presentation-fixed scanners won't suit your workflow—mobile computer terminals or handheld imagers are the right choice there.
What's in the Box
Documentation and warranty details are available upon order confirmation. For complete package contents and accessory compatibility, refer to the product datasheet or contact Datalogic support directly.
Frequently Asked Questions
Q: What barcode formats does the MG1501-10210-0200 read?
A: The 1 MP 2D area imager reads both linear barcodes (Code 128, EAN, UPC, etc.) and 2D matrix codes (QR, Data Matrix, PDF417) in a single read operation. No configuration needed—the scanner automatically detects code type.
Q: Can the MG1501-10210-0200 be used in a wet or washdown environment?
A: The IP52 rating protects against dust and incidental splashes but is not rated for sustained washdown or full submersion. Typical retail counter use—cleaning solutions, condensation, spill cleanup—falls within IP52 protection. For high-pressure washdown or submersion, specify an IP67-rated scanner instead.
Q: Is the MG1501-10210-0200 compatible with legacy serial-based POS systems?
A: Yes. The scanner provides both USB and RS-232 serial connectivity. RS-232 mode supports legacy terminals and systems without requiring adapters or middleware, simplifying integration into older infrastructure.
Q: What warranty does the MG1501-10210-0200 include?
A: Datalogic provides a 5-Year Limited Warranty with factory support and certified repair availability. Extended coverage options are available through Datalogic's EaseOfCare program for multi-site deployments.
Q: Can the read distance be adjusted on the MG1501-10210-0200?
A: The 25 cm read range is fixed and optimized for presentation-mode scanning. It is not adjustable. If your deployment requires longer-range reading or hand-held operation, a different scanner model will be necessary.
Q: What mounting options are available for the MG1501-10210-0200?
A: The scanner is designed for counter-mount or pedestal stand deployment. Specific mounting brackets, stands, and cable routing accessories are available separately; consult the Datalogic catalog or your systems integrator for compatible options.
The Datalogic MG1501-10210-0200 targets a well-defined niche: presentation scanning for checkout and service counter environments where real estate is premium and barcode read reliability cannot fluctuate. This is not a hand-held scanner, not a wide-area reader, and not an industrial imaging system—it is a fixed-position presentation imager, and that specificity is exactly what makes it fit certain deployments perfectly and wrong for others.
Technical Highlights:
- 1 MP 2D area imager at 1280 × 800 resolution: Sufficient pixel density to resolve standard retail and logistics barcodes at the 25 cm presentation distance. The 2D capability means a single scanner reads EAN, QR, Data Matrix, and PDF417 formats without mode switching—simplifies POS configuration and reduces training overhead for staff.
- IP52 environmental sealing: Real-world retail counters involve cleaning agents, condensation swings, and spill incidents. IP52 guards against dust accumulation and splash, but it is not IP67 submersion-rated. If your environment involves high-pressure washdown or submersion, this scanner is not the answer—be explicit about that in the RFQ to avoid cost rework later.
- Dual USB and RS-232 connectivity: A pragmatic nod to the enterprise reality that legacy serial infrastructure coexists with modern IP-based systems. USB is plug-and-play on modern terminals; RS-232 eliminates the need for serial-to-USB converters or middleware on older POS systems. This redundancy reduces deployment friction across heterogeneous chains.
- 250 g weight and 80 × 90 × 79 mm footprint: Compact form factors compound into real labor and real estate savings across a 20-store or 200-store rollout. Lighter mounting brackets, faster installation, fewer structural reinforcements. On a multi-site deployment, that counts.
Deployment Considerations:
- The 25 cm read distance is fixed and optimized for presentation mode. If your store layout or workflow requires longer-range reading or hand-held operation, this model will not adapt. Clarify read distance requirements before procurement to avoid false starts.
- IP52 is adequate for typical retail counter use but a significant limitation if your facility includes washdown zones, high-humidity cold storage, or outdoor loading areas. Spec the right environmental rating the first time—field upgrades are expensive.
- Datalogic Magellan platform benefits from ecosystem maturity: spare parts, cross-compatible accessories, established field service networks. For multi-location chains, this ecosystem support reduces mean-time-to-repair and simplifies fleet inventory management.
The MG1501-10210-0200 is the right choice for retail checkout stands, warehouse receiving desks, library circulation counters, and service islands where presentation scanning is the workflow and environmental conditions stay within IP52 bounds. It is not the right choice for hand-held mobile scanning, long-range area scanning, or high-pressure washdown environments. Know your use case before ordering.
