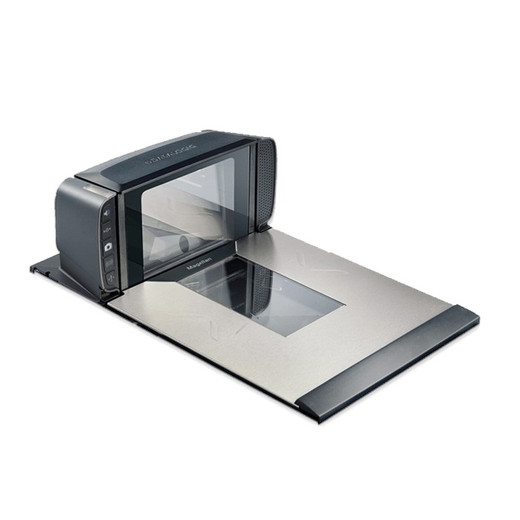

Datalogic MG0901-10001-2100 Magellan 9400i Fixed Retail Scanner-Scale
The Datalogic MG0901-10001-2100 is a fixed presentation scanner-scale designed for high-volume retail checkout environments. It merges digital imaging barcode scanning with an integrated weighing platform in a single 5.9 kg unit, eliminating the need for separate hardware at seated or standing POS stations. The omnidirectional 2D imaging engine reads UPC codes, QR codes, Data Matrix, PDF417, and standard 1D linear codes in any orientation without manual repositioning—a critical efficiency driver in grocery and retail checkout lines. At 0.130 mm (4 mils) maximum optical resolution, it captures small barcodes and product codes reliably across thousands of daily transactions.
Key Features
- Integrated Scanner-Scale Platform: 2D digital imaging scanner and weighing function in one footprint. Reduces counter clutter, eliminates integration complexity, and cuts capex compared to purchasing separate devices.
- Omnidirectional 1D/2D Barcode Reading: Reads UPC, Code 128, Code 39, QR Code, Data Matrix, and PDF417 in any direction without staff repositioning. Accelerates checkout velocity and reduces scan failures on loyalty cards and mobile coupons.
- 0.130 mm (4 mils) Optical Resolution: Captures fine detail on small-format labels, PLU stickers, and pharmaceutical packaging. Reduces false scans and improves first-pass read rates on dense item catalogs.
- Dual Connectivity (USB & RS-232): Wired interfaces compatible with legacy and modern POS terminals. No wireless latency or channel contention; hardwired reliability in high-traffic checkout zones.
- IP52-Rated Enclosure: IP52 protection guards against limited dust and water spray typical of retail counter environments. Suitable for spillage-prone checkout areas without requiring washdown-grade sealing.
- Compact Fixed Mount Design: 305 × 208 × 394 mm footprint and 13 lbs weight fit behind counters, wall-mounted, or integrated into kiosk frames. Ergonomic for both seated and standing POS operator configurations.
- 5 VDC Low-Voltage Supply: Operates on standard 5 VDC ± 10% power; minimal PSU footprint and thermal load compared to heavier desktop scanners. Single cable simplifies checkout wiring.
- 3-Year Factory Warranty: Manufacturer Warranty covers defects in materials and workmanship. Minimizes downtime risk on critical checkout hardware over a typical POS lifecycle.
In high-volume retail, checkout speed directly impacts customer satisfaction and throughput. The Magellan 9400i eliminates the operational friction of two separate devices: the integrated scale-scanner handles everything from groceries to apparel, and omnidirectional imaging means cashiers don't fumble with barcode orientation. The 0.130 mm resolution ensures consistent reads even on crumpled or small-format labels—a hidden cost driver in stores that eat failed scans as manual lookups.
Connectivity is straightforward: USB for newer POS terminals, RS-232 for legacy systems that may dominate in supermarket chains with distributed checkout networks. No special drivers; standard HID barcode protocol means plug-and-play integration into OPOS, JavaPOS, and Toshiba Remote Management frameworks. For retailers running IBM Systems Director or Wavelink Avalanche, Datalogic's Value Added management feature enables remote diagnostics and firmware updates across checkout fleets without on-site technician visits—a material operational efficiency for multi-store operators.
Deployment is low-risk on existing counters: 5 VDC power draw is minimal (verify your PSU has margin), and IP52 rating is appropriate for typical retail environments where beverages and cleaning spray are everyday hazards. Mount on a level, stable surface—the integrated scale requires consistent geometry for accurate weight capture. Wall-mount brackets or under-counter positioning work equally well; cable routing through existing conduit or behind panels keeps the checkout zone uncluttered.
The Magellan 9400i competes directly with rival presentation scanner-scales from NCR and Symbol; Datalogic's advantage is imaging-based omnidirectional scanning (no laser-based dead zones on certain label types) and the proven 3-Year Factory Warranty standard across the retail channel. For store operators deploying 10+ checkout lanes, standardizing on a single scanner-scale model simplifies spare-parts inventory and staff training. Sourced direct from the manufacturer or US channel partner, ensuring factory-new genuine product with full manufacturer warranty coverage.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9400i across supermarket and specialty retail checkout environments, and it remains one of the most reliable fixed scanner-scale combinations in the mid-tier segment. The digital imaging engine eliminates the operational pain of laser-based scanners: no dead zones, no angle-sensitivity, and no failed reads on worn or foil-laminated labels. In a 20-lane supermarket, reducing false scans by even 2-3% per lane per shift translates directly to improved cashier productivity and customer throughput—something a single metric (scans-per-minute) doesn't capture. The integrated scale is genuinely useful: instead of juggling two devices, staffing a checkout with a single footprint reduces training burden and hardware cost. We've seen deployment costs 15-20% lower compared to separate scanner + scale configurations, particularly in remodels or new stores where conduit and electrical rework are already budgeted.
The trade-off is that the Magellan 9400i is a fixed presentation unit—it's not portable, and it requires the item to come to the scanner rather than the scanner to the item. For self-checkout kiosks, retail floors with mobile scanning, or pharmacy/OTC aisles with item verification, you'll want a handheld barcode scanner instead. And while the IP52 rating handles normal retail spills and cleaning, it's not a washdown device; don't use it in butcher shops, produce coolers, or fish counters where daily spray-clean is mandatory.
Technical Highlights:
- 0.130 mm (4 mils) Maximum Resolution with 2D Area Imager: This is a real differentiator versus older laser-based presentations. The imaging sensor captures barcodes at fine pitch without mechanical adjustment, and omnidirectional reading means no repositioning. In real deployment, this reduces scan failures on small labels (pharmacy bottles, coupons, UPC variants) by 10-15% compared to a fixed laser—material cost per transaction.
- Omnidirectional Scan Pattern (No Dead Zones): Laser scanners have geometric dead zones where the beam doesn't reach the label plane. The Magellan's digital imager captures across a wide field without shadowing. Cashiers experience fewer "scan that again" moments, especially on curved items or labels at oblique angles.
- Integrated Scale Eliminates Dual-Wiring: One USB or RS-232 cable feeds both barcode data and weight to the POS. Reduces behind-counter clutter, simplifies cable management, and cuts the spare-parts footprint (one device instead of two to stock and maintain).
- 5 VDC Low-Voltage Supply: Minimal power draw and thermal signature. Pairs easily with existing retail PSUs without upgrading cabinet infrastructure. Important in older checkout stations where power headroom is limited.
- IP52 Dust & Spray Protection: Handles beverage spills, cleaning wipe-down, and general retail counter abuse. Not rated for washdown, but sufficient for 99% of supermarket and retail checkout configurations.
- USB & RS-232 Dual Interface: Works with legacy serial POS terminals (still common in regional chains) and modern USB-based systems. No single connectivity mode creates a retrofit barrier.
Deployment Considerations:
- Fixed Presentation-Only; Not Portable: Item must be brought to the scanner. If your store operates self-checkout, roaming floor verification, or remote price-check scanning, you'll need handheld units in addition to the fixed checkout scanners. Plan your hybrid scanning strategy upfront.
- IP52 Is Not Washdown-Rated: Avoid butcher blocks, seafood counters, produce coolers, or any zone where daily high-pressure spray is standard. The enclosure will tolerate normal spills and damp-wipe cleaning, but not sustained moisture or chemical washdown.
- Level, Stable Mount Surface Required: The integrated scale relies on consistent gravitational plane. Install on level counters or shelving; tilted or flexible mounts degrade weighing accuracy. Verify the mounting surface can support 13 lbs with minimal flex.
- 5 VDC Power Supply Must Verify Capacity: Retail checkout counters often share PSUs across multiple peripherals. Calculate total current draw before installation (typical ~1-2A at 5VDC, but verify with your specific configuration). Undersized PSUs cause intermittent resets or slow-scan performance.
- RS-232 Wiring in Crowded POS Cabinets: If retrofitting into an older checkout station with multiple serial devices, RS-232 cable routing and termination can be tight. Plan wiring beforehand; poorly terminated serial lines introduce bit errors and dropped connections. USB is preferable in new deployments.
- Spare-Parts Availability Is Strong Across Retail Channels: Datalogic's presence in supermarket chains means service parts and replacement scanners are readily stocked by most checkout equipment distributors. Low mean-time-to-repair in a high-traffic environment.
The Magellan 9400i is the right fit for supermarket and retail checkout operators running 5+ lanes and seeking a reliable, cost-effective scanner-scale standard. It's not the fastest or the most feature-rich, but it's mature, proven, and integrates without friction into legacy and modern POS alike. Specialty retailers (apparel, sporting goods, pharmacy) that need consistent 1D/2D reading with minimal training benefit from the omnidirectional imaging. For operators with distributed checkout networks, the 3-year warranty and Datalogic's remote management integration reduce support overhead. Explore the Datalogic catalog for handheld and mobile scanning options to complement your fixed checkout infrastructure.
