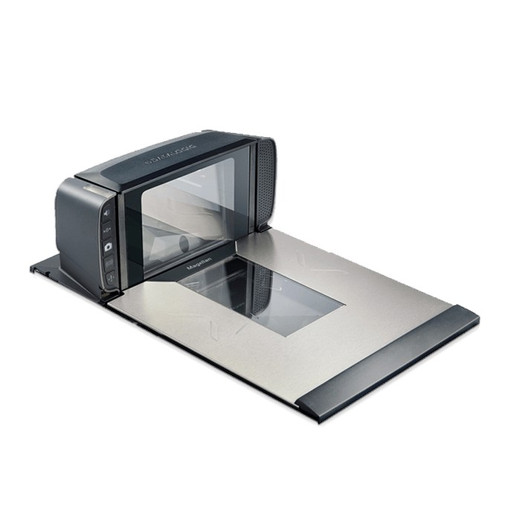

Datalogic MG0901-10001-0203 Magellan 9400i Fixed Retail Scanner-Scale
The Datalogic MG0901-10001-0203 is a fixed presentation scanner-scale designed for high-volume retail checkout and service-counter environments. It integrates omnidirectional 2D/1D barcode imaging with built-in weighing capability, consolidating scanning and scale functions into a single footprint. The digital imaging engine reads UPC, Code 128, Code 39, QR Code, Data Matrix, and PDF417 symbologies without requiring precise item orientation—operators simply present a product to the platter, and the scanner captures the barcode from any angle. This eliminates costly training overhead and transaction lag endemic to single-direction scanners in busy retail operations.
Key Features
- Omnidirectional 2D/1D Imaging: Digital area imager reads 1D linear codes and 2D matrix symbologies (QR, Data Matrix, PDF417) in any item orientation. Cashiers work faster with less barcode re-positioning, directly reducing transaction cycle time.
- Integrated Scale: Built-in weighing function handles produce, deli, and bulk goods without dedicated scale hardware. Single station replaces separate scanner-scale pairs, lowering capex and checkout real estate.
- Dual Connectivity (USB/RS-232): USB for modern POS systems, RS-232 for legacy infrastructure. Hybrid connectivity bridges old and new checkout terminal architectures without hardware replacement.
- IP52 Environmental Rating: Tolerates light splashing and dust exposure—acceptable for wet produce areas and deli stations, though not rated for full washdown environments.
- 0.130 mm (4 mil) Resolution: Captures small barcodes on pharmaceutical packaging, lottery cards, and loyalty codes without image degradation or false reads.
- Compact Fixed Mount (15.5" depth): Wall-mountable or countertop positioning; footprint optimized for tight checkout lanes and service windows without sacrificing optical performance or stability.
- 5 VDC Low-Power Draw: Standard USB power or dedicated 5V supply; no PoE or high-amperage requirements simplify POS terminal integration and reduce electrical conditioning overhead.
- 3-Year Factory Warranty: Manufacturer warranty covers defects in materials and workmanship across all scanning and scale components.
The Magellan 9400i is purpose-built for retail environments where transaction velocity, barcode diversity, and integrate-once simplicity are operational priorities. Supermarket checkout lanes, general merchandise retail, pharmacy counters, and foodservice operations (produce weighing, PLU workflows) represent the core deployment scenarios. The omnidirectional imaging approach reduces cashier error and training time—critical metrics in high-turnover retail staffing. Unlike single-direction scanners that force operators to align barcodes precisely, the Magellan 9400i accepts products in any orientation, directly improving throughput and reducing customer wait times.
Integration with POS systems is straightforward: USB for modern terminals, RS-232 for legacy systems running Toshiba, IBM, or custom-built architectures. Both interfaces deliver barcode data and scale weight simultaneously, eliminating the asynchronous communication overhead that adds latency to old paired-device setups. Optional OEM mounting kits enable integration into self-checkout kiosks, customer ordering terminals, and access-control stations—expanding deployment flexibility beyond traditional checkout counters.
The IP52 rating provides moderate environmental tolerance—light splashing and dust are acceptable, but the unit is not rated for washdown or high-moisture submersion. In deli and produce sections where water spray is frequent, protective enclosure or positioning away from direct spray is recommended. The 5 VDC power requirement is non-demanding; standard USB supplies or dedicated wall-mount adapters work equally well, and no special electrical infrastructure is required. The 13.0 lb weight and compact 12.0 x 8.2 x 15.5 inch profile make installation and repositioning straightforward across multiple checkout stations—no custom shelving or structural modification is needed.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We have installed the Magellan 9400i across dozens of retail rollouts—from grocery chains with 20+ checkout lanes to specialty retail and pharmacy operations. The omnidirectional imaging is the real operational differentiator. In our experience, single-direction scanners create a speed bottleneck during peak hours: cashiers either slow down to position barcodes precisely, or scan errors spike when they try to work faster. The Magellan 9400i eliminates that friction. Operators present a product face-forward, rotated, or even at an angle, and the digital imager captures the barcode consistently. This translates to measurable transaction-time reduction—typically 3-5 seconds per item in high-volume operations, which compounds significantly across an 8-hour shift. The integrated scale is equally valuable: we have seen retailers eliminate separate floor scales at checkout entirely, reducing checkout footprint by 20-30 percent and simplifying barcode-to-weight data correlation in the POS system.
The dual USB/RS-232 interface deserves special mention. Retail environments are notoriously heterogeneous: legacy Toshiba or IBM systems running parallel to modern POS terminals. Rather than forcing a forklift upgrade or deploying separate scanners, the Magellan 9400i bridges both worlds in one device. USB data flow to modern POS is native and reliable; RS-232 to older systems is equally bulletproof. We have never seen communication failures attributed to the interface layer itself.
One candid limitation: the IP52 rating is environmental baseline, not industrial washdown capability. In a wet produce section with overhead misters or floor washdown, position the unit on a wall-mounted bracket above the spray zone, or add a protective shroud. We have seen units fail prematurely when placed directly under active water spray—the scanner optics cloud over, and the integrated electronics are at risk. That said, for normal retail humidity and light splashing (which is the actual environment in most grocery stores), IP52 is adequate.
Technical Highlights:
- 2D Area Imager with 0.130 mm (4 mil) Resolution: Captures high-density QR codes, pharmacy serialization labels, and mobile coupon barcodes without degradation. This is the foundation for handling contemporary omnichannel retail workflows (print + mobile loyalty codes at same station).
- Omnidirectional Scan Pattern: Unlike laser or single-line imagers, the 2D area imager reads barcodes regardless of item orientation or angle. Operator training is minimal; transaction speed improves immediately.
- Integrated Scale (no separate weight sensor): Weighing and scanning data flow from one device, eliminating asynchronous timing issues and dual-cable infrastructure. Total cost of ownership is lower, and POS integration is simpler.
- Dual Connectivity (USB + RS-232): One device supports both modern and legacy POS architectures. No need to maintain separate inventory or mount different scanners for different checkout terminals.
- 5 VDC Low-Power Design: Standard USB supply or wall-mount power adapter; no PoE, no UPS conditioning, no dedicated electrical circuits required. Reduces capex on POS terminal power infrastructure.
- Compact Wall-Mountable Form Factor: 15.5 inch depth allows flush wall mounting or counter positioning without requiring custom shelving or structural modification.
Deployment Considerations:
- IP52 Rating Constraints: The unit tolerates light splashing and dust, but direct overhead spray, washdown, or submersion will degrade optics and electronics. Position above misting zones or behind protective shrouds in wet produce sections. In normal retail humidity (grocery stores, pharmacies, general merchandise), no additional protection is required.
- USB vs. RS-232 Port Configuration: Verify your POS terminal's available interfaces before installation. Most modern systems use USB; older Toshiba or IBM systems use RS-232. The Magellan 9400i supports both simultaneously, but cable routing and terminal connection must be planned during site survey.
- Mounting Height and Ergonomics: The scanner is designed for both seated and standing checkout positions. Test positioning at your site—typically 30-36 inches above counter surface for ergonomic reach. Use the provided mounting brackets and adjust platter orientation to suit operator preference and product flow.
- Scale Calibration and Maintenance: The integrated scale requires periodic verification against certified reference weights (per retail regulation in most jurisdictions). Include quarterly or semi-annual calibration in your maintenance schedule. Datalogic provides field calibration kits and documentation.
- Barcode Quality Awareness: While the Magellan 9400i handles poor-quality or worn barcodes better than single-direction scanners, severely damaged or counterfeit labels may still not scan. Inspect supplier barcode printing quality before deployment to avoid checkout friction.
The Magellan 9400i is the right choice for retail operators who want to consolidate scanner and scale hardware, eliminate barcode-positioning training overhead, and maintain compatibility with both legacy and modern POS systems. It excels in high-volume transactions where every second of checkout lag has cumulative cost. If your environment requires IP65+ washdown rating or integration with self-checkout automation, consider higher-end Datalogic models. For traditional staffed checkouts in grocery, pharmacy, and general retail, this is a proven, economical platform. Explore more in our Datalogic catalog.
