Datalogic Magellan 3600VSi Vertical - M3650-010212-01604

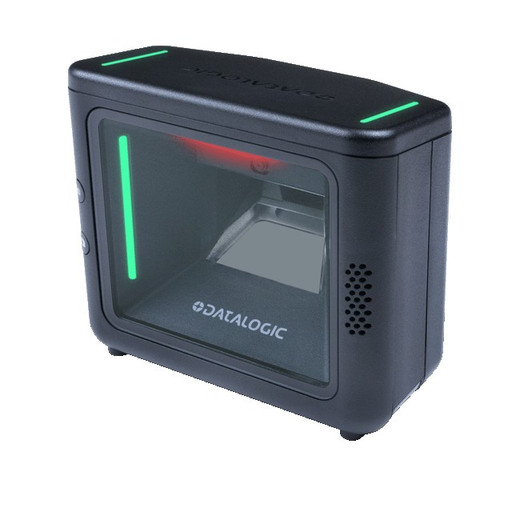

Datalogic M3650-010212-01604 Magellan 3600VSi Vertical Presentation Scanner

The Datalogic M3650-010212-01604 is a fixed vertical presentation scanner designed for point-of-sale counters, self-checkout stations, and high-throughput retail environments where counter footprint is a premium. It combines 1D/2D barcode imaging with integrated RFID capability and a 1MP camera into a 152 × 137 × 94 mm enclosure—small enough to coexist with payment terminals, PIN pads, and customer-interaction zones without crowding the work surface. At 408 g (0.9 lb) and consuming only 1.2 W, it adds negligible weight and power overhead to existing checkout infrastructure, making it an economical retrofit for retailers modernizing barcode and RFID inventory capture without replacing countertop hardware.

Key Features

• Dual-Mode Imaging Engine: 2D barcode imager reads 1D and 2D symbologies (QR, PDF417, Data Matrix, UPC/EAN) with no moving parts. Integrated RFID antenna supports simultaneous barcode + tag-based inventory verification in omnichannel workflows.
• 1MP Integrated Camera: Built-in imaging sensor enables item verification and exception workflows without a secondary camera device, reducing counter clutter and integration complexity.
• Ultra-Low Power Consumption: 1.2 W draw means USB bus power suffices in most POS terminals; no dedicated PSU required. In multi-scanner checkout environments (10+ units), cumulative power savings reduce facility load and operational cost.
• Vertical Presentation Form Factor: Counter-mounted orientation positions the scan window for customer-facing barcode presentation and self-checkout scenarios. Compact 152×137×94 mm profile fits standard retail counter layouts without custom brackets.
• Dual Connectivity (USB + RS-232): Wired interfaces ensure deterministic latency and no wireless interference in high-RF retail environments (payment processors, Wi-Fi access points). USB allows modern POS integration; RS-232 maintains backward compatibility with legacy terminal systems.
• 940nm Invisible IR Illumination: Infrared LED imaging engine is invisible to the human eye, reducing visual glare on countertops and supporting discreet barcode capture in bright retail lighting conditions.
• Extended Warranty and Support: Datalogic 3-Year Limited warranty with manufacturer support covers hardware defects and ensures predictable total cost of ownership across multi-year checkout deployments.

Retail Deployment Context

The Magellan 3600VSi addresses a specific friction point in modern checkout design: integrators cannot rely on handheld scanners alone in high-throughput or self-service environments, yet mounting a full-sized imaging scanner or NCR-style presentation scanner consumes valuable counter real estate. The vertical presentation design solves this by placing the scan window at customer eye level for barcode presentation, while the rear-mounted cable connections keep the counter surface clean. The integrated RFID antenna bridges barcode-centric POS systems with inventory tags on hanging apparel, electronics, and grocery items marked for rapid checkout—enabling a single device to capture both symbologies without operator workflow interruption.

In self-checkout kiosk installations, the compact form factor and integrated camera allow system designers to implement item verification (detecting shrinkage or mis-scans) while keeping the scanner footprint minimal. The 1.2 W power draw is critical in kiosk environments where POS integration boards supply limited USB amperage; a 5 W scanner might force a dedicated power supply, whereas the Magellan 3600VSi typically runs directly from the POS USB hub.

Integration and Operational Considerations

The Magellan 3600VSi connects via standard USB (for modern POS terminals) or RS-232 serial (for legacy systems). Confirm with your POS integrator that the target terminal accepts native barcode input (either HID keyboard emulation over USB or serial data stream over RS-232). RFID functionality requires POS middleware or inventory management software that can parse RFID tag data in parallel with barcode input—not all retail systems are equipped for multi-technology capture out of the box. Test RFID antenna range in your specific checkout environment; proximity to metal payment terminals or high-RF devices (wireless card readers) may degrade tag read distance.

The integrated 1MP camera is useful for exception handling (detecting item mismatches between barcode and inventory), but does not provide real-time video streaming or analytics—it captures still images on demand. If your checkout process requires continuous video recording or analytics-driven loss prevention, pair the Magellan 3600VSi with a separate surveillance camera system rather than relying on the built-in imager as a standalone solution.

Total Cost of Ownership

On a per-unit basis, the Magellan 3600VSi is positioned as a premium presentation scanner—more capable and compact than basic handheld USB models, but less expensive and complex than full-sized fixed-mount imaging stations. The key operational savings materialize when you calculate cumulative hardware consolidation: replacing a handheld scanner, a separate RFID reader, and a verification camera with one compact device reduces support surface area, training overhead, and spare-parts inventory. The 1.2 W power consumption is negligible in single-unit deployments, but across a 50-checkout supermarket or a chain with dozens of self-checkout kiosks, the electricity cost savings compound. Warranty support is factory-direct, reducing downtime risk in critical checkout environments.

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

We've deployed the Magellan 3600VSi in high-volume retail environments where counter space is fought over by payment terminals, PIN pads, and receipt printers. The vertical presentation form factor is the real differentiator—it lets you mount the scanner at customer eye level without eating into the horizontal work surface. The integrated RFID antenna is a practical win for retailers rolling out RFID tagging on apparel and high-shrink categories; instead of wiring a separate RFID reader module, you get it built in. In our experience, the 1.2 W power consumption matters most in kiosk environments where you're running 10+ scanners from a single POS board—every watt counts when your USB hub is already near capacity. The 1MP camera is genuinely useful for exception workflows (customer scanned wrong item, system flags it, camera captures proof), but don't oversell it as a surveillance tool—it's event-triggered, not continuous video. The dual USB/RS-232 interface is defensive engineering; you'll use USB in new installations, but the RS-232 port earns its keep in legacy POS retrofit projects where the terminal has zero USB on the checkout counter. Trade-offs: the scanner is wired-only (no Bluetooth), so cable routing must be planned carefully on crowded checkout counters. RFID range is typical for a compact antenna (1–2 meters in free air), sufficient for handheld item verification but not for long-range portal detection. The camera resolution (1MP) is adequate for exception capture, not high-resolution forensics. Right-size this product for tight checkout spaces and omnichannel inventory verification; if you need cordless flexibility, look at handheld 2D imagers instead. For retailers standardizing on Datalogic hardware, the Magellan 3600VSi integrates into existing Datalogic DL.Code middleware and support ecosystems. Explore the Datalogic catalog for complementary handheld scanners and RFID readers.

Technical Highlights:

• 2D Imaging Engine with 1D/2D Capability: Reads both traditional barcodes (UPC, Code 128, EAN) and 2D symbologies (QR, Data Matrix, PDF417) without mechanical focus or moving parts. Solid-state imaging means no maintenance, longer operational life, and faster scan cycles in high-throughput environments.
• Integrated RFID Antenna: Eliminates the need for a separate RFID reader module on the checkout counter. Typical read range 1–2 meters on passive UHF tags; pair it with POS middleware that can buffer barcode and RFID events simultaneously.
• 1MP Camera with On-Demand Capture: Event-triggered imaging for verification workflows (customer presents item, barcode scans, camera records image to associate with transaction). Not a continuous surveillance stream, but reduces manual exception handling in high-shrink retail.
• USB Bus Power (1.2 W): Most modern POS terminals supply adequate 5V/500mA over USB to operate the scanner without a dedicated power supply. Test your specific POS hub during pilot; legacy terminals with weak USB ports may require external 12V DC module (order separately).
• 940nm Invisible IR LED: Infrared illumination is eye-safe and invisible, reducing visual clutter on checkout counters and maintaining aesthetic appeal in point-of-sale environments where customers see the scanner.
• Datalogic Support Ecosystem: Factory warranty and direct manufacturer support; integrates with DL.Code middleware and existing Datalogic device management platforms if your retail POS infrastructure is Datalogic-aligned.

Deployment Considerations:

• Wired-Only Connectivity: USB and RS-232 are hardwired; Bluetooth and Wi-Fi are not available. Plan cable routing early in checkout counter design to avoid tangling with payment terminals and customer-facing cable clutter.
• RFID Range Expectations: Typical 1–2 meter read distance on passive UHF tags in free air. Performance degrades near metal (payment terminals, cash drawers) and high-RF environments (Wi-Fi access points, wireless card readers). Run a site survey with your RFID tag type before full deployment.
• POS Middleware for Multi-Technology Capture: Basic USB keyboard emulation will only relay barcode data; RFID tags require POS software that understands RFID event streams (usually vendor-specific middleware). Confirm your POS platform supports simultaneous barcode + RFID input before integrating.
• Camera is Event-Triggered, Not Continuous: The 1MP imager captures still frames on demand (typically when an exception is flagged by the POS system). Do not rely on it as a security camera; pair it with a separate surveillance system for loss-prevention video.
• Counter Mounting Stability: The scanner is passive (no integrated mounting bracket in the base). Provide a stable counter position or order a wall-mount bracket separately; vibration from high-volume scanning can shift alignment on loose surfaces.

The Magellan 3600VSi is ideal for integrators designing high-throughput checkout environments (supermarket express lanes, self-checkout kiosks, pharmacy counters) where RFID inventory verification, barcode capture, and exception imaging must coexist in minimal counter space. Whether you are retrofitting legacy POS terminals (RS-232) or building modern kiosk stations (USB), the dual connectivity ensures flexibility. Retailers serious about omnichannel inventory accuracy and shrink reduction will find the integrated RFID antenna a practical asset. Explore the Datalogic catalog for related presentation scanners and handheld devices to round out your point-of-sale imaging strategy.
