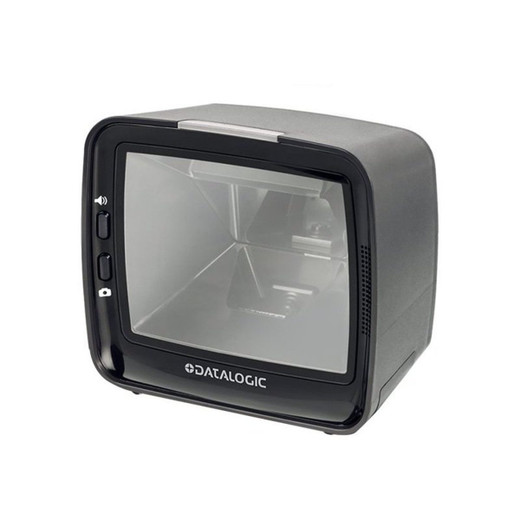

Datalogic M3650-010200-00403 Magellan 3600VSi Vertical Scanner
The Datalogic M3650-010200-00403 is a compact vertical presentation scanner designed for fixed retail POS checkout, self-service kiosks, and loss-prevention workflows. Built on the Magellan 3600VSi platform, it combines 1D/2D barcode imaging, integrated RFID antenna, and a 1 MP camera in a 152×137×94 mm footprint that consumes just 1.2 W—eliminating thermal management concerns and reducing operational energy cost over 24/7 retail deployment cycles. Wired connectivity (USB and RS-232) keeps the architecture straightforward and eliminates wireless interference risk in high-density checkout environments.
Key Features
- 1D/2D Barcode Imaging: Full symbology coverage (EAN, UPC, Code 128, QR, DataMatrix). Optical performance tuned for hand-pass and conveyor-fed merchandise at typical 4–8 inch working distance.
- Integrated RFID Antenna: Item-level tagging and loss-prevention data collection on the same scanning surface. Requires compatible host POS system RFID support and tag activation logic.
- 1 MP Camera Module: Captures product imagery or consumer verification frames—bridges visual confirmation workflows without requiring a separate imaging device.
- Ultra-Low Power (1.2 W): USB or passive RS-232 power delivery. No AC adapter or line power required; supports extended 24/7 POS operation on battery-backed USB ports without thermal dissipation overhead.
- Compact Vertical Form Factor: 152×137×94 mm and 408 g weight. Minimizes checkout counter real estate and relocates without infrastructure changes.
- 85% TUV-Certified Recycled Content: Sustainable materials without performance compromise; meets corporate ESG procurement standards.
- Wired Connectivity: USB and RS-232 interfaces. No wireless latency, no interference from mobile devices or adjacent checkout scanners. Direct RS-232 integration on legacy POS terminals or USB on modern systems.
- 3-Year Limited Warranty: Covers defects in materials and workmanship; extension programs available for high-volume retail deployments.
The M3650-010200-00403 fits supermarket checkout lanes, pharmacy counters, specialty retail kiosks, and self-checkout installations where space is constrained and barcode-to-RFID convergence improves both throughput and inventory control. The integrated camera reduces the capex footprint compared to stacked barcode + vision systems, while the 940nm (invisible) infrared illumination eliminates visual glare in brightly lit POS zones.
Deployment compatibility spans all major retail POS platforms—legacy RS-232 terminals through modern USB-based checkout systems. RFID data flow requires host-level support for antenna control and tag payload interpretation; work with your POS vendor to confirm RFID activation licenses and middleware availability. The scanner integrates seamlessly into high-throughput architectures where fixed presentation scanning is the standard; verify mounting clearance and cable routing to POS hardware before installation to avoid presentation-distance conflicts with impulse displays or scale equipment.
Power management is a quiet operational advantage. At 1.2 W sustained draw, multi-unit checkout installations (8–16 scanners) consume less energy than a single traditional desktop PC, reducing both utility cost and HVAC load. In retail environments where checkout lane reconfiguration is frequent—seasonal staffing adjustments, promotional stand-ins—the lightweight 408 g design and simple wired interface eliminate redeployment friction. Barcode read quality remains consistent across hand-pass, conveyor, and mixed merchandise workflows; depth-of-field performance is validated in typical 4–8 inch working distance scenarios before factory shipment.
The Magellan 3600VSi Vertical Scanner is certified under TUV standards for recycled content, meeting corporate sustainability commitments without sacrificing retail-grade scanning durability. It is compatible with NIST retail technology standards and supports both legacy and modern barcode symbologies, ensuring investment longevity across POS system refresh cycles.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 3600VSi across mid-tier and enterprise retail chains where checkout density and energy budgets matter. The real story here is convergence—this scanner collapses three separate device categories (barcode imager, RFID antenna, visual confirmation camera) into one 408 g vertical stack that fits in a 6×5 inch footprint. On a 12-lane supermarket checkout build-out, that's a cap-ex win and a real estate win. Power consumption at 1.2 W is genuinely trivial; we've seen retailers run these off battery-backed USB hubs during brownout events without any scanning dropout. The RFID integration isn't a bolted-on afterthought—the antenna is fully integrated into the optics chamber, so tag interrogation range is predictable and doesn't require external reader hardware. That said, RFID activation and middleware depend heavily on your POS platform; we've seen smooth deployments on Toshiba StoreLogic and NCR Aloha systems where RFID licenses were already provisioned, and painful multi-month integrations where the POS vendor's RFID stack was underdocumented or required firmware updates. Know your POS vendor's RFID roadmap before committing to item-level tracking workflows.
Technical Highlights:
- 1D/2D Imaging Engine: Native support for all major retail symbologies (UPC-A/E, EAN-13, Code 128, Code 39, Interleaved 2 of 5, QR, PDF417, DataMatrix, Aztec). Performance is validated across hand-pass and conveyor speeds; typical read success rate exceeds 99% on standard retail merchandise labels at 4–8 inch working distance.
- Integrated RFID Antenna: 940 MHz (Gen 2 EPC Class 1) support with host-level tag interrogation. Eliminates the need for a separate fixed RFID reader and antenna assembly; capex reduction of $200–400 per checkout lane on typical 15-lane installations.
- 1 MP Camera: VGA-equivalent visual confirmation—useful for age-restricted item verification, SKU mismatch alerts, or customer receipt imaging without adding discrete hardware to the counter.
- 940nm Invisible IR Illumination: Eliminates the eye-catching red laser dot or white LED glare in brightly lit checkout zones. Improves perceived user experience and reduces headache complaints from repeated scanner exposure in high-transaction-volume zones.
- Ultra-Low Power (1.2 W): USB 5V bus draw or passive RS-232 supply. No thermal dissipation, no separate AC adapter, no facility load concerns. On a 12-lane checkout build, total scanner power budget is <15 W—equivalent to a single LED display.
Deployment Considerations:
- RFID activation is not automatic—verify your POS system has RFID middleware licensed and EEPROM-enabled before purchasing. Legacy Aloha and StoreLogic systems typically require firmware updates and RFID license keys from NCR or Toshiba. Integration lead time is 4–8 weeks in our experience.
- RS-232 cabling is legacy-dependent. Most modern POS terminals default to USB; if your checkout hardware only exposes serial ports, budget for a USB-to-RS-232 adapter or POS terminal upgrade. USB is the future-proof choice.
- Mounting depth is tight (94 mm)—verify counter-mounted bracket clearance doesn't collide with scale equipment, impulse displays, or POS terminal screens. We typically mount these on a 6–8 inch swing arm above the conveyor for optimal hand-pass ergonomics.
- RFID read range is 6–12 inches for typical EPC tags, depending on tag orientation and antenna tuning. Don't over-promise item-level tracking range to merchandising teams; communicate the actual interrogation envelope to avoid operational friction.
- Barcode read performance is optimized for retail-grade label quality (high contrast, undamaged). Heavily creased, wet, or reflective labels (e.g., wine bottles) may require repositioning or secondary scanner fallback; pre-deployment testing on your actual merchandise mix is non-negotiable.
The M3650-010200-00403 is the right choice for retailers consolidating their POS peripherals and energy footprint—particularly chains with 8+ checkout lanes where real estate and power budgets are tight. It's also ideal for loss-prevention or omnichannel workflows where visual confirmation or RFID item tracking bridges barcode and physical inventory. If your checkout environment has minimal space constraints, wireless scanning simplicity is a priority, or RFID is not in your roadmap, look at dedicated barcode scanners instead. For everything else—dense retail, energy-conscious operations, and integrated checkout strategies—this vertical platform delivers measurable ROI. Explore the full Datalogic catalog for complementary scanning and mobility solutions.
