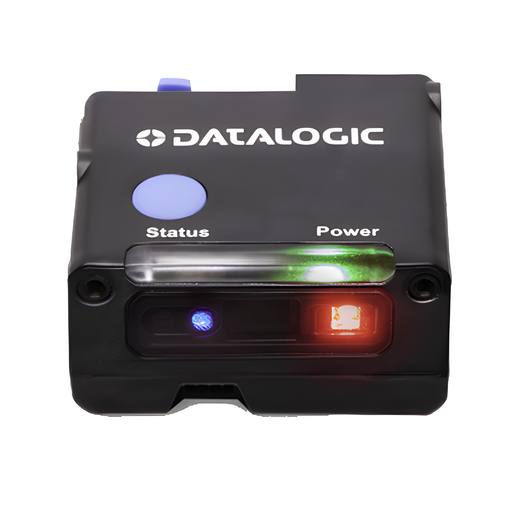

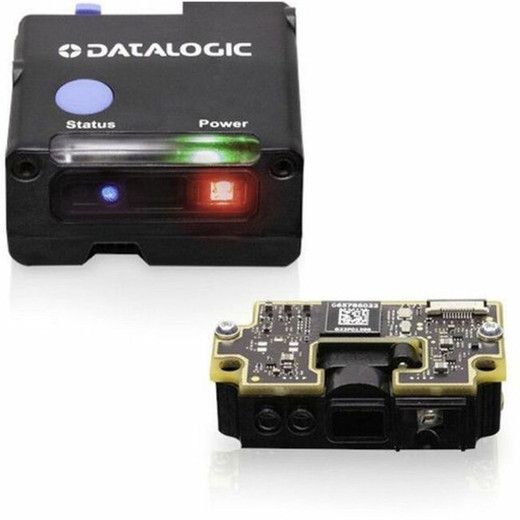

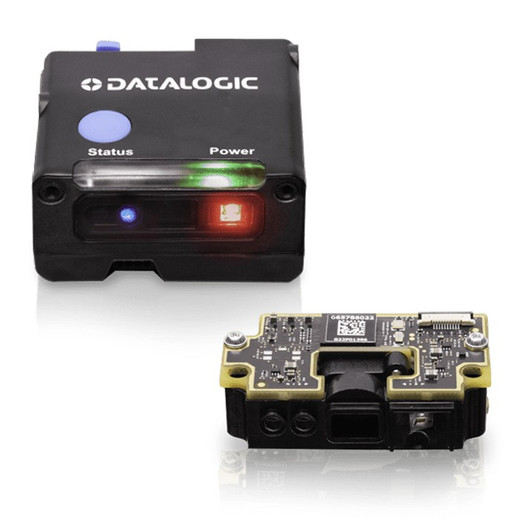

Datalogic Gryphon 4500 GFS4590-BK-RED Fixed Mount Barcode Scanner
The Datalogic Gryphon 4500 Fixed Series (GFS4590-BK-RED) is a compact megapixel 2D imager designed for fixed-mount OEM integration, kiosk installations, and retail point-of-sale environments. This ultra-compact scanner delivers enterprise-grade barcode capture performance in a form factor optimized for space-constrained deployments, making it ideal for organizations seeking high-resolution imaging without sacrificing installation flexibility.
Key Features
- Megapixel 2D imaging sensor for high-resolution barcode capture
- Ultra-compact dimensions: 41 x 30 x 36 mm (1.6 x 1.2 x 1.4 inches)
- Lightweight design at 100 g (0.22 lb) for flexible mounting
- IP54 ingress protection rating for dust and moisture resistance
- Micro-USB connectivity for simplified integration
- Red and white illumination options for varied lighting conditions
- 5-year limited factory warranty
Technical Highlights
The Gryphon 4500 Fixed Series employs megapixel 2D imaging technology to capture high-contrast barcode data with minimal positioning sensitivity. The IP54 environmental sealing provides reliable operation in retail, warehouse, and manufacturing environments where dust and splash exposure is common. Micro-USB connectivity enables straightforward OEM integration with minimal wiring requirements, reducing installation complexity and total cost of ownership.
The scanner's compact form factor—among the smallest in its class—allows integration into kiosks, vending machines, self-checkout counters, and conveyor-based automation systems. Datalogic's proven imaging algorithms ensure consistent read rates across 1D and 2D barcode symbologies, supporting both legacy and modern barcode formats without firmware updates.
Ideal Applications
- Retail POS and self-checkout systems
- Kiosk and interactive display integration
- Warehouse and inventory management
- Manufacturing and production line scanning
- Healthcare and pharmaceutical supply chain tracking
- OEM equipment and appliance integration
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Gryphon 4500 Fixed Series represents Datalogic's strategy for the embedded and OEM scanner market, where space constraints and integration simplicity drive purchasing decisions. The megapixel 2D imager provides superior image quality compared to fixed-focus alternatives, enabling reliable reads on damaged, poorly printed, or small barcodes—a critical advantage in high-volume retail and logistics environments.
IP54 rating indicates protection against dust ingress and low-pressure water jets, sufficient for most indoor commercial environments but not for wash-down or outdoor installations. The 5-year warranty reflects Datalogic's confidence in sensor reliability and aligns with typical enterprise device lifecycle expectations.
For organizations evaluating fixed-mount barcode solutions, the Gryphon 4500 balances imaging performance, durability, and integration flexibility. Its lightweight design and compact footprint minimize structural stress on mounting hardware, reducing installation labor and long-term maintenance costs. Deployment across multiple facility types using identical hardware simplifies inventory management and technician training.
