Datalogic GFS4520-BKK1-RED Gryphon 4500 Fixed 2D Scanner

Datalogic GFS4520-BKK1-RED Gryphon 4500 Fixed 2D Scanner

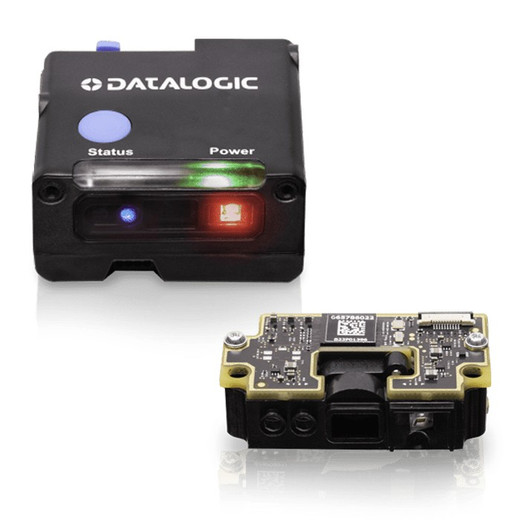

The Datalogic GFS4520-BKK1-RED is a compact megapixel 2D imager engineered for fixed-mount barcode capture in space-constrained OEM integration, automated kiosk systems, and warehouse logistics environments. This ultra-compact module delivers consistent high-resolution barcode and 2D symbol capture without the complexity or cost overhead of larger fixed-position systems.

Key Features

• Megapixel 2D Imager: High-resolution image sensor captures detailed 1D and 2D barcode data — essential for supply chain workflows where barcode quality can vary. Supports degraded or damaged barcodes that lower-resolution imagers miss, reducing failed reads and downstream processing delays.
• Ultra-Compact Dimensions (41 x 30 x 36 mm): At just 1.6 x 1.2 x 1.4 inches, the GFS4520-BKK1-RED fits into tight OEM enclosures, kiosk windows, and conveyor-mounted brackets without requiring custom mechanical re-design. Integrators can deploy multiple units in parallel scanning stations without eating into cabinet real estate.
• 100-Gram Weight: Lightweight design simplifies mounting bracket selection and reduces structural load on retrofit installations. Minimal mass also means flexible positioning — arm mounts, window cutouts, or embedded kiosk panels all viable without reinforcement.
• IP54 Environmental Sealing: Dust and light water-splash resistance means the GFS4520-BKK1-RED can operate in warehouse bay doors, production floors with periodic washdown, and outdoor-adjacent environments without a protective housing enclosure. IP54 will not survive direct spray or submersion — if you need those conditions, specify an IP67 or higher variant.
• Wired Micro-USB Connectivity: Fixed power and data via USB eliminates battery lifecycle management, wireless sync latency, and pairing overhead. Consistent power delivery ensures 24/7 operational readiness in unattended scanning stations. Single cable simplifies installation: one Micro-USB to host system covers both power and data.
• Red and White Illumination Options: Red (660nm) and white illumination variants address different barcode inks and ambient lighting. Red illumination improves contrast on certain dark inks; white suits general-purpose retail and logistics barcodes. Confirm your barcode substrate compatibility before specifying red vs. white.
• 5-Year Limited Warranty: Datalogic's extended coverage window reflects confidence in component reliability and supports predictable total cost of ownership in multi-unit deployments. Replacement parts remain in stock across the warranty term, reducing unplanned downtime.

Integration & Deployment Context

The Gryphon 4500 Fixed Series (GFS4520-BKK1-RED) is purpose-built for integrators and OEM partners designing automated scanning solutions. Typical deployments include:

• Conveyor and Parcel Automation: Embedded in line-scan tunnels and sortation gateways where barcode orientation is fixed and read cycles must complete in milliseconds.
• Kiosk Barcode Capture: Window-mounted or enclosure-integrated for self-service ticketing, parcel drop-off, and self-checkout workflows where user positioning is controlled.
• Point-of-Sale Integration: OEM scanner module for retail POS terminals, payment kiosks, and transaction-capture stations requiring compact, sealed imaging.
• Manufacturing and Warehouse Pick Operations: Fixed-position verification scanners mounted at workstations, dock doors, and production checkpoints to enforce barcode validation before downstream processing.
• Healthcare and Laboratory Specimen Tracking: Specimen and inventory label capture in controlled environments where barcode accuracy and read consistency are safety-critical.

Organizations standardizing on the Datalogic Gryphon 4500 platform across multiple sites benefit from simplified spare parts management, consistent firmware baselines, and unified configuration workflows. Integrators appreciate the modular design — the compact footprint and wired power architecture reduce mechanical complexity and accelerate time-to-market in custom OEM platforms.

When to Choose a Different Model

The GFS4520-BKK1-RED is optimized for fixed-position, space-constrained scanning. If you require wireless (Bluetooth) operation or need to eliminate the USB cable entirely, consider a battery-powered variant in the Gryphon mobile scanner line. If your environment is fully submerged or requires full protection against high-pressure spray (carwash, food-processing washdown), you'll need an IP67-rated scanner — contact Datalogic directly for sealed variants. For applications requiring long-range barcode capture (1–3 meters) with moving barcodes or handheld scanning flexibility, a handheld 2D imager or mobile computer with barcode engine may be more practical.

Frequently Asked Questions

Q: What barcode symbologies does the GFS4520-BKK1-RED support?

A: The megapixel 2D imager engine captures standard 1D (Code 39, Code 128, UPC/EAN, etc.) and 2D formats (QR, Data Matrix, PDF417). Exact symbology support depends on the host decoder firmware — confirm your decoder module or integration platform supports your specific barcode types before deployment.

Q: Is the GFS4520-BKK1-RED NDAA or TAA compliant?

A: Compliance certifications are not listed in the product evidence. Contact Datalogic or your reseller directly for federal compliance documentation if required for government contracting.

Q: Can the GFS4520-BKK1-RED be mounted at an angle or in an upside-down orientation?

A: The compact module supports flexible mounting — wall, ceiling, pendant, and angled bracket installations are all viable. No orientation restrictions are documented, but test your specific mounting angle during integration to confirm barcode visibility and focus range.

Q: What is the maximum read distance for the GFS4520-BKK1-RED?

A: Read distance depends on barcode size, contrast, illumination intensity, and host optical configuration. Evidence does not specify maximum range. Consult the manufacturer datasheet or conduct a test read with your barcode substrate and mounting distance before finalizing the design.

Q: Does the GFS4520-BKK1-RED require special drivers or firmware on the host system?

A: Micro-USB connectivity typically appears as a standard serial or HID (Human Interface Device) port to the host. Most host systems (PCs, embedded Linux, industrial controllers) recognize Micro-USB scanners without special drivers. Confirm host OS compatibility and decoder firmware support with your integration platform.

Q: What power consumption can I expect from the GFS4520-BKK1-RED?

A: Specific wattage is not listed in the evidence. Micro-USB (5V standard) typically delivers 100–500mA depending on imager load and illumination mode. Verify current draw with the manufacturer datasheet or contact Datalogic to confirm your USB host power budget supports the unit without degradation.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Datalogic GFS4520-BKK1-RED represents a deliberate engineering trade: pack megapixel 2D imaging into the smallest possible form factor, seal it against light dust and splash, then rely on the host system or host platform to provide focus control, symbology decoding, and workflow integration. That strategy makes sense for OEM partners and integrators who already own the mechanical design and have a clear read distance and barcode specification — you're not buying a standalone scanner, you're buying an imaging module for custom integration. The 41 x 30 x 36 mm envelope is genuinely compact; most fixed-position scanning tunnels, kiosk windows, and conveyor-mounted cutouts can accommodate this without redesign.

Technical Highlights:

• Megapixel 2D Imager: High-resolution image sensor resolves degraded, torn, or low-contrast barcodes where standard-resolution imagers fail — translates to lower read-failure rates and fewer manual overrides in warehouse and logistics environments.
• IP54 Environmental Rating: Dust and splash protection removes the need for protective enclosures in most warehouse and production settings. Not submersible, so skip this if you need IP67 or higher for washdown or wet environments.
• 100-Gram Weight + Compact Footprint: Minimal mass and size simplify retrofit mounting, reduce bracket load, and enable dense parallel scanning stations without Cabinet real estate penalties.
• Wired Micro-USB Power and Data: No battery management, no wireless sync latency — ideal for 24/7 unattended scanning. Single cable to host reduces installation complexity and eliminates power supply SKU proliferation across multi-site deployments.

Deployment Considerations:

• Read distance and focus range are not specified in available evidence — you must test your barcode substrate and mounting distance during integration. Datalogic's compact design assumes relatively fixed barcode position and controlled illumination on the host's side.
• Symbology and decoder support depend on your host decoder firmware or integration platform, not the scanner module itself. Confirm your barcode types and decoder compatibility before committing to this module in production design.
• Micro-USB power will draw minimal current (likely under 500mA), but verify your host USB port or hub can supply sufficient power without brownout or data corruption on long cable runs (over 3–5 meters may require active USB hubs).

The GFS4520-BKK1-RED is the right choice for OEM integrators designing conveyor scanners, kiosk barcode readers, and automated parcel sortation gateways where the barcode position is fixed and the focus/illumination strategy is set during mechanical design. If you need a handheld or mobile scanning solution, or if your environment demands IP67 sealing or long-distance barcode capture, look elsewhere — this is a purpose-built imaging module for tight spaces and controlled workflows.
