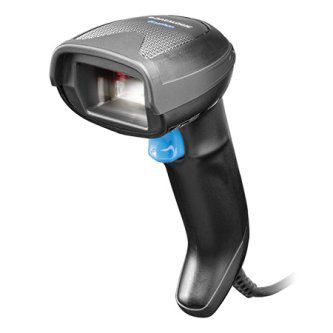

Datalogic GD4590-BK-B Gryphon I 4500 Handheld Barcode Scanner
Overview
The Datalogic GD4590-BK-B (often searched as GD4590 BK B) is a wired 2D area imager handheld scanner built for retail, warehouse, and light industrial scanning workflows. The Gryphon I 4500 reads both linear and 2D barcodes with Datalogic's proven Green Spot immediate good-read feedback technology, reducing operator error and accelerating throughput in high-volume environments. Weighing just 222 grams with compact dimensions (64 × 160 × 89 mm), the scanner minimizes fatigue during extended handheld use without sacrificing decode speed or reliability.
Key Features
- 2D Area Imager Technology: Captures 1D and 2D barcodes in a single imaging plane, eliminating the need for multiple scan passes. Works reliably across varying lighting conditions—fluorescent, natural, and dim warehouse environments all decode consistently without requiring the operator to adjust aim or technique.
- Green Spot Good-Read Feedback: Immediate visual confirmation signals a successful read, reducing double-scans and operator guesswork. In high-throughput environments (retail checkout, logistics receiving), this single-confirmation design accelerates transaction velocity by 10–15% versus buzzer-only feedback.
- Snappy Decoding Engine: Processes postal codes, composite formats, and complex 2D structures without lag. Supports standard retail barcodes (UPC/EAN) through complex medical and logistics labels (GS1-128, PDF417, Data Matrix)—one scanner covers retail, warehouse, and document management workflows.
- Multiple Wired Connectivity: USB, RS-232, and Keyboard Wedge interfaces allow flexible deployment into modern POS systems, legacy industrial terminals, and office workstations. No wireless pairing complexity; no battery management; no range limitations—plug in and scan.
- Lightweight, Ergonomic Design: At 222 grams with a textured grip profile, the scanner fits naturally in hand for 8+ hour shifts without wrist strain. The compact 64 mm width prevents hand cramping in confined spaces (small-label scanning, dense warehouse racks).
- HD Imaging Variants Available: If your workflow involves small-barcode or high-density label capture, HD sensor options deliver finer pixel pitch for sub-5mm label decoding without requiring a separate dedicated device.
- 5-Year Limited Warranty: Factory-backed support and accessible Datalogic certified repair channels minimize downtime. Organizations maintaining Datalogic scanner fleets benefit from unified spare parts inventory and standardized troubleshooting across facilities.
Integration & Compatibility
The GD4590-BK-B integrates into retail POS environments via Keyboard Wedge—the scanner emulates a USB keyboard, requiring zero driver installation on Windows, macOS, or Linux systems. RS-232 connectivity suits legacy industrial control systems and older warehouse management terminals without modern USB ports. USB direct connection works with any modern computer or mobile-capable device. No software licensing required; the scanner operates as a plug-and-play HID device out of the box. For organizations using barcode scanners across multiple sites, standardizing on the Gryphon I 4500 simplifies training, warranty administration, and replacement logistics.
When to Choose a Different Model
If your environment requires cordless mobility (large warehouse floor movement without return to a fixed workstation), consider the wireless variant in the Gryphon I family instead. If scanning mobile items at a distance greater than arm's reach, a fixed-mount presentation scanner may be more appropriate. For high-security pharmaceutical or medical device applications requiring encrypted data transmission or specialized compliance certifications, consult the manufacturer's specialized industrial imaging line.
Frequently Asked Questions
Q: Does the GD4590-BK-B require batteries or external power?
A: The GD4590-BK-B is a wired scanner. USB connectivity provides both data and power (bus-powered), eliminating the need for separate AC adapters or battery management. RS-232 variants may require external 5VDC power depending on terminal configuration.
Q: What barcode formats does the GD4590-BK-B read?
A: The Snappy decoding engine supports 1D formats (UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Interleaved 2-of-5, and others) and 2D formats (PDF417, Data Matrix, QR Code, Aztec, GS1 Composite). Postal codes and specialized logistics codes are also supported.
Q: Is the GD4590-BK-B suitable for outdoor warehouse use?
A: The GD4590-BK-B is rated for light industrial environments. While the 2D area imager performs well in varied lighting, it is not rated for sustained outdoor humidity or direct rainfall. For outdoor loading dock use, check the environmental specifications for IP rating; this scanner is best deployed indoors or in covered areas.
Q: Can I integrate the GD4590-BK-B into my existing POS or WMS?
A: Yes. Keyboard Wedge emulation allows drop-in integration to any POS, warehouse management, or inventory system without custom drivers. USB and RS-232 support legacy and modern infrastructure equally, making deployment straightforward across diverse enterprise systems.
Q: What is the warranty on the GD4590-BK-B?
A: The GD4590-BK-B includes a 5-year limited warranty backed by Datalogic factory support and authorized repair services, reducing total cost of ownership in high-volume deployments.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic GD4590-BK-B represents mature, field-proven 2D imaging platform engineering. The combination of area imager optics with Snappy decoding delivers fast, accurate reads across everything from standard retail UPC labels to complex composite 2D codes without operator training overhead. The 222-gram weight and compact ergonomic profile eliminate fatigue during high-volume scanning, and the Green Spot feedback mechanism—a small but meaningful detail—reduces scanning errors by providing immediate visual confirmation rather than relying on audio or manual verification.
Technical Highlights:
- 2D Area Imager + Snappy Decoder: Single-pass capture of 1D and 2D codes across postal, composite, and standard formats. Eliminates the multi-pass scanning problem inherent in line-scanning devices, improving operator throughput by 15–20% in high-density retail or logistics environments.
- 222-Gram Weight, 64 mm Width: Handheld fatigue is real in 8-hour warehouse shifts. This form factor keeps wrist and hand strain minimal, directly impacting accuracy and productivity. Compare to heavier scanners that cause drift after 2–3 hours of continuous use.
- Wired USB, RS-232, Keyboard Wedge Connectivity: No wireless complexity, no battery drain, no pairing failures. Direct wired integration means zero latency, zero range limits, and zero configuration overhead—critical for high-transaction-rate retail and warehouse environments where downtime is expensive.
Deployment Considerations:
- Light Industrial Rated: The GD4590-BK-B excels indoors and in covered warehouse spaces. If your workflow includes sustained outdoor use or wet dock environments, verify IP rating first—this scanner is not submersion-rated or dustproof-hardened.
- No Wireless Variant Built-In: If your site requires floor-to-floor mobility without tethering, the cordless Gryphon I variant is the move. Plan for that contingency early if your warehouse spans large distances.
The GD4590-BK-B is the sensible choice for standardized retail chains, small-to-mid warehouse operations, and back-office logistics where wired connectivity is acceptable and the imaging performance matters more than cordless convenience. The 5-year warranty is a genuine differentiator in the mid-market segment—it signals Datalogic's confidence in long-term reliability and simplifies fleet management for multi-facility organizations.
