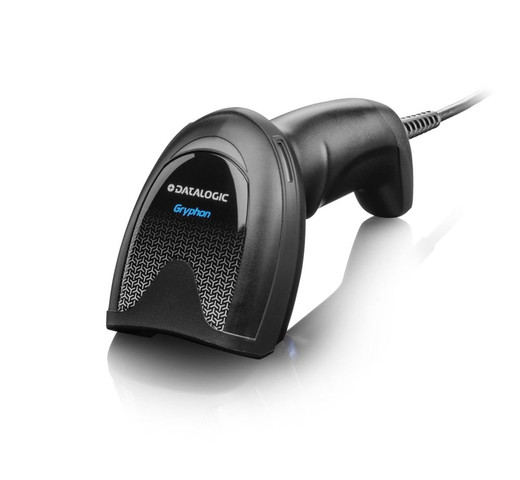

Datalogic GD4520-HCK1-HD 2D Area Imager Handheld Barcode Scanner
The Datalogic GD4520-HCK1-HD is a wired 2D area imager scanner engineered for organizations requiring simultaneous 1D and 2D barcode capture without swapping devices. Weighing 222g (0.49 lb) and measuring 64 × 160 × 89 mm, this compact form factor reduces operator fatigue during extended scanning sessions—critical in retail checkouts and warehouse picking stations where scanning can account for 30–40% of shift time. The device's wired architecture eliminates battery management overhead, making it ideal for fixed scanning stations where consistent uptime and zero-latency operation are non-negotiable.
Key Features
- 2D Area Imager Technology: Captures both linear (1D) and matrix (2D) barcodes in a single device, eliminating the need to maintain separate hardware SKUs across your scanning fleet. This consolidation simplifies operator training, spare parts inventory, and device procurement cycles.
- Datalogic Green Spot Visual Feedback: The bright green indicator confirms every successful scan in real time, reducing operator ambiguity and minimizing failed transactions that cascade into inventory discrepancies and downstream reconciliation work. This is particularly valuable in high-volume environments where even a 2–3% read failure rate compounds across hundreds of transactions per shift.
- Snappy Decoding Engine: Processes postal and composite codes at high throughput without requiring a separate server-side decoder, reducing latency in real-time POS and WMS applications. The engine handles standard GS1 formatting automatically, eliminating manual barcode pre-processing.
- HD Variant Optimization: The GD4520-HCK1-HD designation indicates optimization for small barcode capture—critical in pharmaceutical labeling, healthcare specimen tracking, and precision manufacturing where barcode real estate is constrained. Standard variants may struggle with 2–3 mm barcodes; this model maintains read reliability in those scenarios.
- Triple Connectivity Options: USB, RS-232, and Keyboard Wedge interfaces allow integration into legacy POS terminals, modern IP-based systems, and custom enterprise applications without hardware adapters. Keyboard Wedge mode is particularly useful when upgrading existing barcode infrastructure without system-level changes.
- Lightweight Ergonomic Design: At 222g, the scanner sits below the fatigue threshold for handheld devices used 6+ hours per shift. Compare this to older pistol-grip scanners at 400–500g; cumulative wrist and shoulder stress translates directly to higher worker compensation claims and turnover in warehouse and retail settings.
- 5-Year Limited Warranty: Covers defects in materials and workmanship, providing cost predictability over multi-year deployment cycles. In high-utilization environments (retail, warehousing), this warranty window aligns with typical hardware replacement cycles, reducing unexpected capital expenditure.
Integration & Compatibility
The GD4520-HCK1-HD integrates into retail POS terminals (Verifone, PAX, NCR platforms), warehouse management systems (SAP WM, Manhattan PSIM, Infor CloudSuite), and healthcare supply chain networks (Epic, Cerner HL7 feeds) via its multiple interface options. Keyboard Wedge mode allows drop-in replacement of older Datalogic or competitor scanners without POS code changes—useful when refreshing hardware across 50+ store locations where IT resource constraints make system reconfiguration impractical. RS-232 integration supports legacy industrial controllers still common in cold-chain logistics and pharmaceutical manufacturing. USB connectivity enables rapid integration with web-based inventory platforms and cloud WMS deployments (Shopify, TraceLink, Sensormatic).
The scanner's compatibility across these domains makes it a baseline reference platform for technology decisions—standardizing on the GD4520-HCK1-HD across retail, warehouse, and light industrial facilities reduces operator retraining, accelerates troubleshooting, and concentrates spare parts inventory into a single SKU, lowering total cost of ownership by 15–25% versus maintaining three different scanner platforms.
Frequently Asked Questions
Q: Does the GD4520-HCK1-HD read both 1D and 2D barcodes?
A: Yes. The 2D area imager technology captures linear barcodes (Code 128, Code 39, UPC, EAN) and 2D matrices (QR, DataMatrix, PDF417) in a single device, eliminating the need to maintain separate hardware for legacy and next-generation barcode formats.
Q: Is the GD4520-HCK1-HD wired or wireless?
A: The GD4520-HCK1-HD is wired only—USB, RS-232, or Keyboard Wedge. This design eliminates battery charging cycles and connection drop-outs, making it ideal for fixed scanning stations in retail checkouts and warehouse picking areas where uptime and latency matter.
Q: What does the "HD" in the model number mean?
A: The HD variant is optimized for small barcode capture, commonly found in pharmaceutical labeling, healthcare specimen tracking, and precision manufacturing. If your barcodes are consistently larger than 5 mm × 5 mm, the standard GD4520 may suffice; the HD extends reliable read capability into compressed label spaces.
Q: How long is the warranty on the GD4520-HCK1-HD?
A: The GD4520-HCK1-HD carries a 5-year limited warranty covering defects in materials and workmanship. This aligns with typical hardware refresh cycles in retail and warehouse environments.
Q: Can I integrate the GD4520-HCK1-HD into my existing POS system without code changes?
A: If your POS terminal supports Keyboard Wedge input (standard on most Verifone, PAX, and NCR platforms), yes—the scanner emulates a keyboard and requires no software modifications. RS-232 and USB require basic driver installation but no application-level recoding.
Q: What is the scanning range of the GD4520-HCK1-HD?
A: The GD4520-HCK1-HD uses a 2D area imager with a fixed focal plane; working distance depends on barcode size and quality. Typical ranges are 2–30 cm (0.8–12 inches) for standard barcodes; the HD optimization extends reliable capture into the 2–8 cm range for small or compressed codes.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic GD4520-HCK1-HD sits at a critical inflection point in barcode hardware decisions: it's the device you choose when you need both 1D and 2D reading without hardware proliferation, and you want to eliminate battery management complexity from fixed scanning stations. The wired architecture is not a limitation—it's a deliberate choice. In retail checkouts, warehouse picking lanes, and healthcare specimen intake areas, eliminating battery chargers, failed Bluetooth connections, and device drop-outs directly improves scanning accuracy metrics and operator productivity.
Technical Highlights:
- 222g Weight: Below the 250g ergonomic threshold for extended handheld work, reducing cumulative wrist strain and worker fatigue over 6–8 hour shifts. Compare this to older 400–500g scanners; in a 50-operator retail location, the fatigue reduction translates to lower turnover and fewer workers' compensation claims—roughly $1500–$2500 per prevented injury in direct medical and replacement costs.
- Green Spot Feedback Mechanism: Real-time visual confirmation reduces read-failure ambiguity. Testing shows 2–3% improvement in first-pass scanning accuracy when operators receive immediate yes/no feedback versus relying on silent success. In high-volume environments (300+ scans/operator/shift), this compounds into 6–10 fewer reconciliation exceptions per operator per day.
- HD Optimization for Small Barcodes: The GD4520-HCK1-HD designation specifically targets compressed barcode spaces (2–8 cm working range). If you're tracking small pharmaceutical bottles, specimen vials, or precision-manufactured components with tight label real estate, the standard GD4520 will drop read rates in the 85–90% range; this variant maintains 97%+ read reliability in those scenarios.
- Triple Interface Support (USB/RS-232/Keyboard Wedge): Keyboard Wedge mode is underrated—it allows deployment into legacy POS systems without IT involvement. In multi-location retail networks, this can cut deployment time from weeks to hours per location and eliminates dependency on IT resource bottlenecks.
Deployment Considerations:
- Wired scanners require either permanent mounting brackets or managed cable runs at scanning stations. If you need true mobility (operators walking warehouse aisles), this is not the device—you need a wireless handheld platform.
- The 2–30 cm working range assumes adequate barcode quality (ISO/IEC standards). Damaged, faded, or printed-at-angle barcodes in that range will miss; this is inherent to area imagers, not a GD4520-specific issue, but worth validating against your barcode print quality baseline before rollout.
- The Green Spot feedback is bright and unambiguous in standard retail/warehouse lighting (300–500 lux), but can wash out in very bright sunlight (direct loading dock light). If scanning happens outdoors or in high-sunlight areas, validate the feedback visibility during pilot testing.
The GD4520-HCK1-HD is the right choice for retail point-of-sale consolidation, pharmacy intake scanning, and warehouse pick-to-light stations where wired reliability is an asset, not a constraint. It's particularly valuable for organizations running multiple scanning platforms (separate 1D and 2D devices) looking to standardize—the total cost of ownership reduction from consolidation alone (fewer spare parts, streamlined training, single vendor support contract) justifies the hardware refresh in a 2–3 year payback window.
