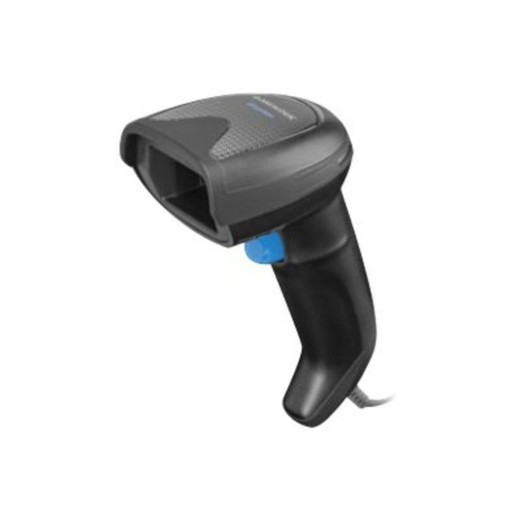

Datalogic GD4520-BK-B-USB 2D Area Imager Handheld Barcode Scanner
The Datalogic GD4520-BK-B-USB is a wired 2D area imager handheld scanner designed for high-transaction retail, warehouse, and light industrial environments where reliable barcode capture and operator feedback are non-negotiable. The 2D imager architecture decodes both traditional 1D linear barcodes and modern 2D matrix codes (QR, Data Matrix, PDF417) in a single device—eliminating the need for separate laser and 2D readers and reducing operator training overhead when barcode formats shift across product lines or suppliers.
Key Features
- 2D Area Imager Engine: Captures linear and matrix barcode formats simultaneously, meaning checkout counters and receiving docks handle mixed barcode types without swapping hardware. This flexibility cuts device proliferation costs in multi-department warehouses.
- Datalogic Green Spot Good-Read Feedback: Green LED confirmation light signals a successful read immediately, so operators know instantly whether a scan registered. Eliminates the ambiguity of beep-only feedback in noisy retail or warehouse floors, reducing mis-scans and double-entries that inflate transaction times.
- Snappy Decoding Engine: Rapid barcode processing supports high-velocity checkout and inventory operations. The scanner handles postal codes and composite barcode standards, so it works out-of-the-box in retail, healthcare, and logistics workflows without custom firmware.
- Multiple Connectivity Options (USB, RS-232, Keyboard Wedge): USB connection integrates directly into modern POS terminals and inventory systems without a separate interface card. RS-232 and Keyboard Wedge modes support legacy systems. One device adapts to existing infrastructure—no forced hardware refresh.
- Compact Ergonomic Form Factor: Measures 64 x 160 x 89 mm and weighs 222 g—light enough for all-shift handheld operation without operator fatigue. The balanced weight distribution suits retail staff working checkout lanes 8+ hours daily or warehouse picking teams moving between zones.
- Wired Power Eliminates Battery Management: Continuous USB power means no daily charging cycles, no battery degradation concerns, and no mid-shift scanner failures due to depleted cells. Fixed-position installations (POS counters, receiving windows) benefit most; tethered scanners stay docked until needed.
- HD Variant Available: High-definition optics option supports small or densely-printed barcodes common in pharmaceutical, electronics, or high-SKU retail environments where barcode real estate is tight.
- 5-Year Limited Warranty with Factory Support: Extended warranty period reduces unplanned downtime costs. Datalogic factory support (not third-party reseller only) ensures fast repair turnaround critical in retail environments where a broken scanner at a checkout lane immediately impacts transaction processing.
Integration & Compatibility
The GD4520-BK-B-USB pairs with any POS system, inventory management platform, or ERP that accepts USB input or serial data. The Keyboard Wedge mode emulates a USB keyboard, so no driver installation is required on many systems—scan data flows directly into the active text field. This simplicity appeals to retail chains deploying across hundreds of stores with inconsistent IT infrastructure. The scanner's small footprint fits into existing POS cart layouts and checkout counter spaces without redesign.
Enterprise organizations standardizing on the Gryphon I 4500 series across multiple facilities reduce spare parts inventory, simplify operator cross-training (one scanner model, consistent behavior), and negotiate consolidated support contracts. The proven decoding engine and multi-interface flexibility also support seasonal demand spikes—temporary staffing can be handed a GD4520 with minimal instruction.
Applications
- Retail Checkout & Returns: Fast barcode capture reduces transaction times and customer wait times; Green Spot feedback prevents scanner-error refunds.
- Warehouse Receiving & Putaway: USB or RS-232 integration logs inbound shipments into WMS in real-time; light weight suits mobile cart deployment.
- Order Picking & Inventory Audits: 2D imager reads both product barcodes and location labels (often 2D codes) in a single scan, accelerating pick accuracy and cycle-count cycles.
- Office Document & Asset Tracking: Manages mail sorting, equipment tracking, or archive barcode indexing without proprietary scan engines.
- Light Industrial Work-In-Process: Component identification and batch tracking in electronics, pharmaceuticals, or light manufacturing where barcode density and format mix demand a robust 2D solution.
Frequently Asked Questions
Q: Does the GD4520-BK-B-USB require a driver or special software?
A: USB and Keyboard Wedge modes work plug-and-play on Windows, macOS, and Linux systems without driver installation. RS-232 mode may require a serial driver depending on your operating system and terminal application. The scanner ships with configuration documentation for each interface type.
Q: Can I use the GD4520-BK-B-USB with my existing POS system?
A: Yes, provided your POS accepts USB input or serial data. The Keyboard Wedge mode (scanner emulates a USB keyboard) works with nearly all modern POS terminals. If your system predates USB entirely, confirm RS-232 compatibility before ordering.
Q: What's the difference between the standard GD4520 and the HD variant?
A: The HD (high-definition) variant uses sharper optics to read small or densely-printed barcodes. Choose HD if you handle pharmaceutical labels, electronics components, or high-SKU retail products where barcode size is constrained. Standard GD4520 suits most retail and warehouse applications.
Q: Is the GD4520-BK-B-USB suitable for outdoor or wet environments?
A: No. The GD4520-BK-B-USB is wired (requires USB power) and not rated for outdoor, wet, or dusty environments. It's engineered for indoor retail counters, offices, and climate-controlled warehouses. If you need rugged outdoor scanning, consider a mobile computer or industrial handheld terminal with built-in battery and IP67 rating.
Q: Does the wired connection limit mobility?
A: Yes—the USB cable tether restricts range to the cable length (typically 10–15 feet depending on extender). The GD4520-BK-B-USB suits fixed-position checkouts, receiving docks, and tethered workstations. Mobile picking or multi-floor warehouse operations benefit more from wireless or battery-powered scanners like Datalogic's Gryphon I GBT4200 or GBT4500 series.
Q: What's covered under the 5-year warranty?
A: The 5-year Limited Warranty covers defects in materials and workmanship under normal use. Accidental drops, liquid damage, and cosmetic wear are not covered. Datalogic EaseOfCare extended service plans (optional) add repair coverage and device replacement for accidental damage—check with your distributor for pricing and terms.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic GD4520-BK-B-USB occupies a pragmatic middle ground in the handheld scanner market. Its 2D area imager architecture addresses a real pain point—the need to handle both linear and matrix barcode formats without hardware swapping. The Green Spot visual feedback is deceptively valuable; in retail noise and warehouse din, a LED confirmation signal cuts misread errors measurably compared to beep-only scanners, which translates directly to fewer transaction voids and faster checkout cycles.
Technical Highlights:
- 2D Area Imager with Postal & Composite Code Support: One engine decodes all barcode types your suppliers ship—no format surprises requiring device changes or operator retraining. The Snappy decoding engine prioritizes speed, critical in checkout environments where scan velocity directly impacts customer throughput.
- USB, RS-232, and Keyboard Wedge Compatibility: Three interface options mean the GD4520 adapts to legacy POS terminals (RS-232), modern retail systems (USB), and temporary installations (Keyboard Wedge emulation). No forced middleware or hardware refresh required.
- Compact 222-gram Form Factor: Light enough for all-shift handheld use without forearm fatigue. Retail staff and warehouse pickers operating 8–10 hours daily notice the difference; heavier scanners (300+ grams) elevate repetitive strain complaints and slower scanning pace.
- Wired USB Power Eliminates Battery Anxiety: No overnight charging, no mid-shift capacity loss, no battery replacement cycles. Fixed-position scanners on tethered cables stay live indefinitely. This simplicity is why POS checkout counters still favor wired scanners despite wireless alternatives.
Deployment Considerations:
- The USB tether constrains mobility—expect roughly 10–15 feet of range depending on cable quality and port location. Dock-side receiving and fixed checkout lanes thrive; multi-zone warehouse picking or cross-floor audits demand a wireless or battery-powered scanner instead.
- Barcode density matters. If you handle pharmaceutical labels, high-SKU electronics, or compact QR codes, confirm the standard GD4520 optics meet your print quality. Request the HD variant if barcode resolution is marginal at your sites.
- Keyboard Wedge mode bypasses custom drivers but also bypasses control—scan data flows directly into the active field with no ability to validate, reformat, or reject bad reads in real-time. Evaluate this against your application's error tolerance.
The GD4520-BK-B-USB is the right fit for retail chains and mid-tier warehouses standardizing on a single handheld scanner across multiple facilities. The 5-year warranty and Datalogic factory support reduce total cost of ownership when deployed at scale. Skip it if mobility is non-negotiable or if barcode density and format variability outpace the imager's optical capability—in those cases, evaluate a higher-spec industrial terminal or a dedicated mobile computer platform instead.
