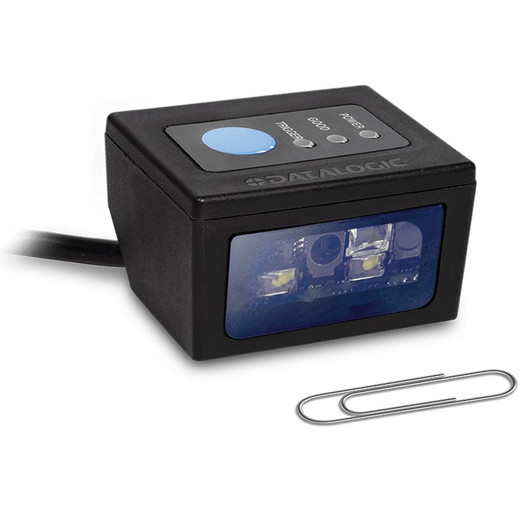

Datalogic DSM0452-WA Decoded 2D Scan Engine Module

Datalogic DSM0452-WA Decoded 2D Scan Engine Module

The Datalogic DSM0452-WA is a compact decoded 2D scan engine module designed for space-constrained OEM and enterprise environments. Part of the DSE0451-R series, this module delivers high-speed 2D barcode imaging with onboard decoding, making it ideal for remote scanner installations where integration flexibility and reliable data capture are critical.

Key Features

• 2D imager with 60 fps high-speed image capture
• Onboard decoded processing for immediate data output
• RS-232/UART wired connectivity for seamless integration
• Compact form factor: 25 x 20 x 30 mm (1.0 x 0.8 x 1.2 inches)
• Lightweight at 27 g (0.06 lb) for flexible mounting
• Support for all standard 1D and 2D barcode symbologies
• 1-Year Limited Warranty

Technical Highlights

The DSM0452-WA combines speed and reliability through its 60 fps image capture rate, enabling real-time barcode processing in high-throughput environments. The decoded onboard processing eliminates the need for external decoding hardware, reducing system complexity and integration costs. RS-232/UART connectivity ensures compatibility with legacy and modern systems across enterprise deployments.

Applications

This module is well-suited for warehouse management systems, inventory tracking, retail point-of-sale integration, manufacturing floor automation, and any OEM application requiring embedded 2D barcode scanning. The compact design supports remote scanner installation scenarios where space limitations or custom form factors demand a modular approach.
