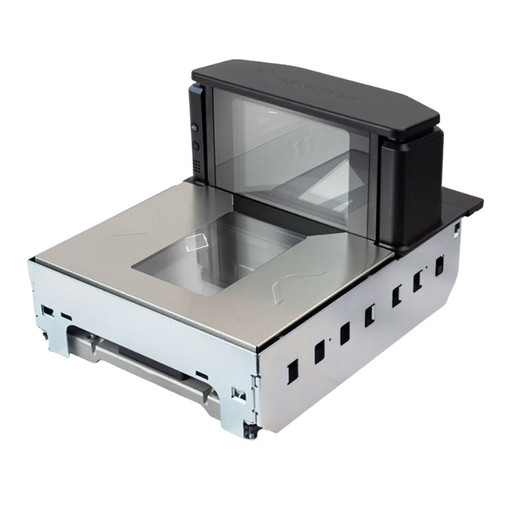

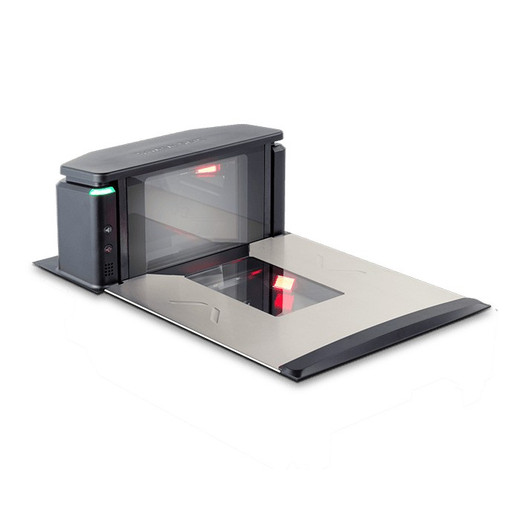

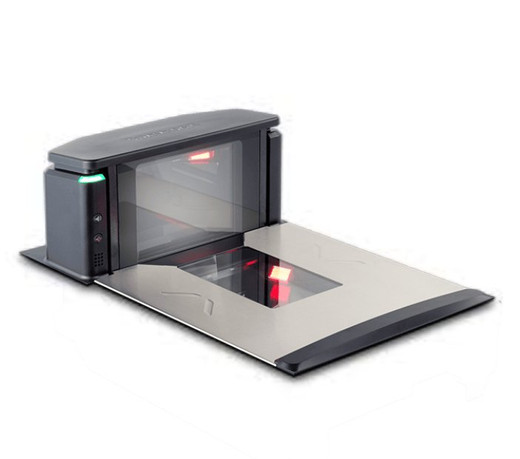

Datalogic Magellan 9550i Bi-Optic Fixed Retail Scanner
The Datalogic Magellan 9550i (957011001) is a fixed bi-optic imaging scanner engineered for high-volume retail checkout and point-of-sale environments where transaction speed and read reliability directly impact customer throughput and labor cost. The 2D digital imaging engine captures 1D linear codes (Code 128, Code 39, UPC, EAN) and 2D symbologies (QR, Data Matrix, PDF417) across omnidirectional scanning planes — both horizontal and vertical — without operator repositioning. GS1 2D Digital Link support enables next-generation product identification and supply chain transparency, future-proofing the checkout for evolving retail data standards.
Key Features
- Omnidirectional 2D Imaging Engine: Reads 1D and 2D codes in any presentation angle (vertical and horizontal planes). Eliminates the need for operator hand rotation or repositioning, reducing transaction time and checkout fatigue.
- GS1 2D Digital Link Support: Decodes next-generation product codes and supply chain information. Positions your POS for emerging retail data standards without hardware replacement.
- USB and RS-232 Connectivity: Dual wired interfaces integrate directly into legacy and modern POS terminals. Wired connections eliminate wireless latency and pairing overhead critical for high-throughput checkouts.
- Drop, Thermal Shock, and Surge Testing: Validated durability in retail environments subject to spills, temperature swings, and electrical transients. Fixed mounting eliminates device loss and theft risk inherent to handheld scanners.
- Compact Fixed Form Factor: 305 × 216 × 406 mm footprint (6.4 kg) engineered for permanent counter installation. Guaranteed consistent scanning geometry across all barcode angles presented at checkout.
- High-Volume Checkout Rating: Designed for grocery, department store, pharmacy, and quick-service restaurant environments processing dozens of transactions per hour with minimal read failures.
The Magellan 9550i addresses a specific operational requirement in modern retail: eliminating the scanning time variability introduced by operator technique or barcode orientation. In a grocery checkout processing 15–20 items per minute, a scanner requiring rotation or repositioning compounds labor cost and customer queue friction. The omnidirectional imaging geometry guarantees consistent first-scan read rates whether the cashier presents a product face-up, at an angle, or upside-down. This consistency translates directly to reduced re-scan events and checkout dwell time.
Integration into existing POS infrastructure is straightforward. USB and RS-232 provide deterministic, low-latency communication to retail terminals and registers without the pairing complexity or battery management overhead of wireless protocols. The fixed mounting configuration works with standard checkout counter layouts and integrates into modular checkout configurations used in grocery and retail chains. Retailers upgrading from older single-plane laser scanners gain immediate read-rate improvement on 2D codes (QR, Data Matrix) while maintaining 100% backward compatibility with UPC/EAN barcodes already in circulation.
Durability validation includes drop testing, thermal shock cycles, and electrical surge tolerance — standard retail counter hazards that claim handheld and wireless devices. The fixed form factor eliminates the operational friction of device loss, theft, or battery failure mid-shift. A checkout operator has no device to forget at break or lose in a spill; the scanner is part of the counter infrastructure. This removes an entire class of retail operational overhead: device inventory, replacement logistics, and pairing/authentication time between shifts.
GS1 2D Digital Link support is a forward-compatibility feature. As suppliers and retailers adopt digital product identifiers linked to online product data, nutrition information, and supply chain provenance, the Magellan 9550i reads those codes without firmware update or hardware replacement. This positions the scanner as a long-term checkout asset rather than a technology that becomes obsolete within 3–5 years.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9550i across grocery chains, department stores, and specialty retail environments, and it earns its place on a checkout counter by eliminating a persistent source of transaction friction: barcode presentation variance. In high-volume checkout environments processing 15–25 items per minute, the operator overhead of rotating or repositioning a single-plane scanner to read an upside-down barcode compounds across hundreds of transactions per day. The omnidirectional imaging geometry on the 9550i solves that operationally — every barcode reads first scan, regardless of orientation. On a 12-lane grocery checkout, that translates to measurable throughput improvement and lower operator fatigue. The fixed form factor is a secondary but important benefit; it removes device loss, theft, and battery management as operational variables. Compared to handheld imagers or wireless solutions, the 9550i is deterministic infrastructure, not a managed asset.
Technical Highlights:
- 2D Digital Imaging Engine with Omnidirectional Scanning: Reads 1D (Code 128, Code 39, UPC, EAN) and 2D (QR, Data Matrix, PDF417) codes across horizontal and vertical planes without operator rotation. In practice, this eliminates the 2–3 second re-scan time that occurs when a single-plane laser scanner fails on a mis-oriented barcode — compounded across 1,000+ transactions per day, that's hours of cumulative labor.
- GS1 2D Digital Link Support: Future-ready for supply chain transparency and digital product data. As retailers adopt linked product codes, the 9550i reads them natively without hardware replacement — a 5-year-plus lifecycle advantage over scanners locked to legacy barcode formats.
- Wired USB/RS-232 Connectivity: Deterministic, low-latency POS integration without wireless pairing overhead or battery management. On a busy checkout, wireless latency or intermittent connectivity becomes operationally visible; wired eliminates that failure mode entirely.
- Drop, Thermal Shock, and Surge Tested: Validated durability against spills, temperature extremes, and electrical transients common in retail. Fixed mounting eliminates device loss and replacement logistics — no pre-shift checkout verification needed, no mid-shift device hunting.
- Fixed Form Factor Locks Scanning Geometry: Guaranteed consistent read performance across all barcode angles. Handheld imagers introduce operator-technique variability; the fixed counter mount ensures every transaction follows the same optical path and lighting conditions.
Deployment Considerations:
- Fixed installation requires permanent counter real estate and wired connections. High-volume checkouts with dynamic layout changes or temporary self-checkout configurations may find the fixed form factor limiting — evaluate counter layout stability before commissioning.
- USB and RS-232 are legacy wired protocols; modern POS terminals support both natively, but verify connector type (USB-A, micro-USB, etc.) and serial port availability on target registers. Wired connections require cable routing and strain relief in active checkout areas subject to spills and foot traffic.
- Omnidirectional imaging is most effective on flat, printed barcodes at readable distance (typically 5–15 cm). Heavily damaged, wrinkled, or reflective labels (e.g., metallic stickers) may degrade read performance; test barcode condition before full deployment to high-traffic checkouts.
- The 6.4 kg weight and 305 × 406 mm footprint require solid counter mounting. Verify checkout counter structure and available surface area before purchase; retrofit mounting on older checkouts may require custom brackets or structural reinforcement.
- 1-Year Limited Warranty covers hardware defects. Retail environments subject to frequent spills or impact stress should evaluate extended warranty programs; Datalogic extension programs are available through authorized distribution channels.
The Magellan 9550i is the right choice for high-volume retail operations where transaction throughput and read consistency directly impact labor cost and customer experience. Grocery chains, department stores, and specialty retailers processing 100+ transactions per checkout per day will see immediate ROI in reduced re-scan time and operator fatigue. For lower-traffic checkouts or environments requiring mobility, handheld imagers or mobile devices may be more cost-effective. Learn more in the Datalogic catalog.
