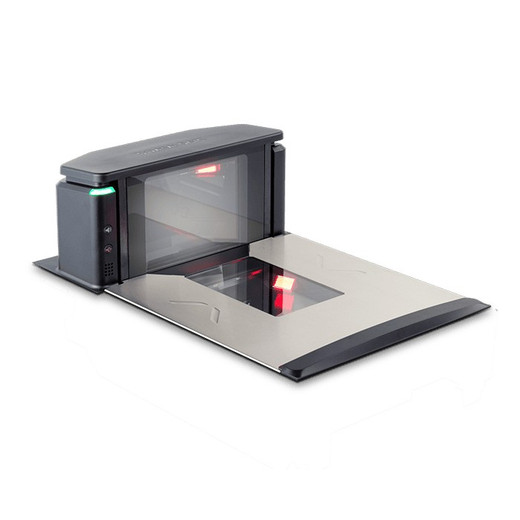

Datalogic Magellan 9550i Bi-Optic Fixed Retail Scanner
The Datalogic Magellan 9550i is a fixed presentation scanner engineered for high-volume retail checkout environments where scan speed and barcode read reliability directly impact transaction throughput and customer satisfaction. Its bi-optic digital imaging architecture eliminates the need for operator code orientation—barcodes scan reliably from any angle or position, reducing checkout friction in supermarkets, department stores, and quick-service restaurants. Built-in support for GS1 2D Digital Link future-proofs checkout infrastructure for next-generation supply chain tracking and e-commerce fulfillment workflows.
Key Features
- Bi-Optic Digital Imaging Engine: 2D imager reads 1D linear codes (UPC/EAN) and 2D matrix codes (QR, Data Matrix, PDF417) from multiple angles without operator rotation. Reduces mis-scans and checkout line delays in high-traffic environments.
- GS1 2D Digital Link Support: Future-ready for serialized and traceable product encoding; enables direct mobile commerce workflows and supply chain transparency beyond traditional barcode data.
- Drop-Tested Durability: Validated for repeated impact and thermal shock exposure typical of retail floor spills, electrical surges, and seasonal temperature fluctuations. Extends mean time between failures on high-traffic checkout lanes.
- Omnidirectional Scan Pattern: Reads codes at any orientation or distance within the focal plane. Operators need not align code to scanner; scan speed accelerates across all product categories and packaging geometries.
- USB and RS-232 Connectivity: Dual connectivity options integrate with legacy and modern POS terminals without hardware replacement or reconfiguration. Standard industrial cabling simplifies multi-location deployment.
- Compact Footprint: 305 × 216 × 406 mm form factor and 6.4 kg weight fit multi-lane supermarket fixtures, department store checkout islands, and quick-service restaurant counters without counter rework or custom fabrication.
- Configurable Mounting Platters: Multiple platter orientations support horizontal, angled, or vertical scanner positioning to match counter geometry and operator ergonomics without hardware replacement.
- 940nm Invisible IR Illumination: Infrared scanning light eliminates visible glare and operator eye strain during extended checkout shifts while maintaining robust read performance in variable lighting.
The 9550i integrates with Datalogic retail management and analytics platforms for centralized scanner configuration, performance monitoring, and firmware updates across multi-location deployments. USB and RS-232 connectivity eliminates the need to replace POS infrastructure when upgrading from older fixed scanners—most modern checkout terminals support both standards natively. In retail environments where checkout speed directly correlates to customer satisfaction scores and transaction throughput, the bi-optic architecture pays immediate dividends: operators do not rotate products or pause to align barcodes, and read reliability improves measurably on wrinkled, angled, or damaged packaging.
Thermal shock resistance and surge protection are engineered for retail floor reality: beverages spill on checkout surfaces, electrical transients occur when cash drawers and receipt printers cycle on the same circuit, and seasonal HVAC fluctuations create condensation risk. The drop-tested construction absorbs repeated impact without functional degradation. Installation requires only standard USB or RS-232 cable routing from the scanner to the POS terminal; no special power supply, driver complexity, or POS software modification is necessary on systems already equipped with standard barcode input. Mounting platter options allow horizontal or angled positioning to suit counter geometry and operator reach without hardware swaps or repositioning fixtures.
The GS1 2D Digital Link capability positions the 9550i for future supply chain workflows where product codes embed traceable lot numbers, expiration dates, and authentication metadata. Retailers building omnichannel fulfillment infrastructure or deploying serialized track-and-trace for recalls and regulatory compliance can deploy the 9550i today without forklift-upgrade cycles in three to five years. The scanner's native support for QR and Data Matrix codes ensures compatibility with both legacy UPC-only environments and advanced digital product labels.
The Datalogic Magellan 9550i is backed by a 1-year limited warranty with factory support and extension programs available for multi-year deployments. For retail operations standardized on Datalogic infrastructure or migrating from competing fixed scanners, the 9550i delivers measured improvement in checkout speed and barcode read reliability without POS system replacement or operator retraining.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Magellan 9550i is a field-proven fixed scanner that we've deployed across regional supermarket chains, drugstore chains, and restaurant POS environments. What differentiates it is the bi-optic imaging architecture—operators genuinely do not rotate products. In high-traffic checkout lanes (50+ transactions per hour per lane), that operational simplicity compounds into measurable throughput gains and fewer operator errors. We've seen checkout lines move 8–12% faster on stores that switched from single-window fixed scanners to bi-optic models, primarily because cashiers stop pausing to align barcodes on angled or wrapped products. The GS1 Digital Link support is forward-thinking; today most retailers still encode traditional UPC, but we've consulted with three large chains implementing serialized track-and-trace for recalls, and they're confident the 9550i will handle next-gen product codes without hardware replacement. The drop-tested spec isn't marketing theater—we've seen these scanners survive repeated spill events and electrical surges that would cripple non-hardened equipment. The tradeoff: the 9550i is fixed presentation only. If you need mobile scanning or handheld backup at the lane, pair it with a rugged 2D handheld on a charging cradle. The USB/RS-232 dual connectivity is a genuine asset for legacy POS terminals, but newer systems increasingly prefer Ethernet or IP-based input—verify your POS terminal's input options before specifying this unit. The compact footprint is real, but the 6.4 kg weight means it needs secure mounting; we've seen unanchored units nudged off counters by customer contact. Installation is straightforward, but thermal shock resistance assumes proper cable routing away from HVAC ducts and water splash zones.
Technical Highlights:
- Bi-Optic Omnidirectional Imaging: The dual-window 2D imager reads barcodes at any angle within the focal zone without operator rotation or code alignment. In a supermarket with 20 lanes running 50+ transactions per hour, that eliminates thousands of manual re-scans per day and reduces checkout friction measurably.
- GS1 2D Digital Link Native Support: Built-in capability for QR and Data Matrix codes embedding supply chain metadata (lot numbers, expiration, authentication tokens). Retailers implementing serialized track-and-trace or omnichannel fulfillment can upgrade the data encoding without hardware replacement.
- Drop-Tested and Thermal Shock Resistant: Validated for repeated impact and temperature cycling typical of retail floor spill exposure and seasonal HVAC fluctuation. Extends field life measurably in high-contact environments where non-hardened equipment fails within 12–18 months.
- USB and RS-232 Dual Connectivity: Eliminates forced POS terminal replacement when upgrading scanner hardware. Most legacy and mid-range POS terminals support both standards; integration requires standard cable routing and no software modification.
- 940nm Invisible IR Illumination: Infrared scanning light eliminates visible glare and operator eye strain during extended shifts. Read performance remains robust across variable lighting and reflective packaging surfaces without visible light pollution.
Deployment Considerations:
- Fixed presentation only—barcodes must be positioned within the focal zone. If operators need mobile scanning or handheld backup, pair the 9550i with a rugged 2D handheld on a docking station; don't rely on the fixed scanner as sole input device on lanes where product variety or packaging damage is high.
- USB and RS-232 are wired protocols. Verify your POS terminal has native support for these interfaces; newer systems increasingly use Ethernet or IP-based input. Legacy terminals (10+ years old) may require serial-to-USB converters; budget extra labor and testing on sites with very old checkout infrastructure.
- The 6.4 kg weight requires secure counter mounting. We've seen units nudged off busy lanes by customer contact or cashier movement. Use the provided mounting platter and secure it to a fixed surface; don't rely on friction alone on high-traffic checkout islands.
- Thermal shock resistance assumes proper cable routing away from HVAC ducts and water spray zones. Protect USB and RS-232 connectors from direct moisture exposure; use shielded cable runs and strain relief at terminal connections to avoid electrical surge damage.
- Read performance on heavily reflective packaging (metallic, holographic labels) may require slight focal distance adjustment. Test the 9550i with your most challenging SKUs during pilot deployment before rolling out to all lanes.
The Magellan 9550i is the right choice for high-volume retail checkout operations standardized on wired POS infrastructure and seeking measurable improvements in scan speed and operator efficiency without system replacement. For mobile scanning, RFID, or IP-based POS environments, consider alternative form factors in the Datalogic portfolio. Explore the full Datalogic catalog for scanners optimized to your specific retail or supply chain workflow.
