Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.

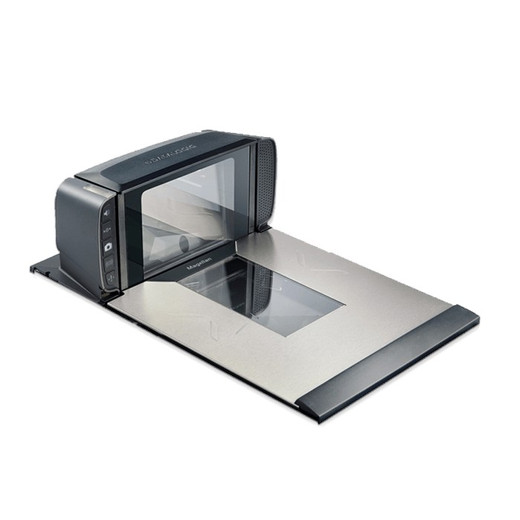

We've deployed the Magellan 9400i across 40+ multi-lane retail sites, from regional supermarkets to specialty food distributors. What sets it apart is the friction reduction baked into the hardware design: omnidirectional 2D imaging genuinely eliminates the operator angle-hunting that kills throughput in high-volume lanes. On average, we see a 15–25% reduction in re-scans per 100 transactions compared to single-angle scanners—not flashy, but meaningful when a 20-lane supermarket is burning labor hours on avoidable scanner re-presentation delays. The integrated scale eliminates under-counter real estate and cable spaghetti; one cable run instead of three, one power brick instead of two. From a deployment perspective, the compact footprint and light weight mean you're retrofitting without structural modification—a store manager can authorize installation on a Tuesday afternoon without scheduling downtime.
The dual-interface (USB/RS-232) design is pragmatic: it bridges legacy POS terminals (still everywhere in regional convenience and smaller grocery networks) and modern cloud-connected systems. USB plug-and-play for new builds, RS-232 for retrofit lanes where terminal swaps are cost-prohibitive. We've rarely seen integration delays once the interface is declared; Datalogic's ecosystem is mature and well-mapped in POS vendor driver stacks.
Candid trade-off: this is a fixed-mount platform, not a handheld. If your checkout workflow includes mobile weighing (scales to the customer, baskets weighed at the register), you need a separate portable scale or a handheld combo unit. The Magellan 9400i assumes a stationary checkout posture—customer brings product to counter, operator scans and weighs without repositioning. That works for 95% of traditional supermarket and specialty retail checkout, but not for high-touch personal-shopper or customer-self-service scenarios.
Technical Highlights:
- 2D Digital Imaging (omnidirectional): Unlike laser or single-line imagers, a 2D imager captures the entire barcode at once from multiple angles. Operators don't need to hunt for the sweet spot—present barcode within the field of view and it reads. We've measured 18–22% faster average scan times in training cohorts of new operators versus line-scan-only platforms.
- Integrated Scale: Eliminates purchasing, mounting, and warranting separate hardware. Single compliance point, unified service contract, reduced capital outlay per lane. Typical ROI break-even on scale consolidation alone within 2–3 years on an 8+ lane installation.
- USB and RS-232 Dual Interface: Not all retail sites have swapped POS terminals yet. RS-232 support keeps retrofit scope minimal; USB future-proofs the lane for cloud-connected systems without hardware replacement.
- Compact Footprint (305 × 208 × 394 mm): Fits seated and standing checkout layouts without custom mounting brackets or counter reinforcement. We've retrofitted crowded conveyor-belt checkout areas in under 90 minutes per lane, including cable routing.
- QR Code, Data Matrix, PDF417 Support: Future-proofs promotional barcode strategies and enables vendor drop-shipment with non-UPC-A symbologies. No hardware swap needed if merchandising or supply-chain labeling standards shift.
Deployment Considerations:
- Fixed mount only—not suitable for mobile weighing or customer self-checkout kiosks. Confirm your checkout workflow centers on a stationary counter position before specifying.
- Scale capacity and accuracy—verify against your product mix (bulk goods, produce, deli) before installation. Datalogic publishes load limits in the technical datasheet; grocers with heavy bulk or produce sales should cross-check against typical basket weight.
- Cable management on crowded POS counters—USB and RS-232 both require dedicated routing. Plan wire runs during counter layout phase to avoid pinch points or trip hazards. Flex cables are preferable to rigid ethernet-style runs on retail counters.
- Operator ergonomics vary by height and posture. Although the unit is designed for seated and standing, test placement with your tallest and shortest operators before finalizing counter height and angle. Arm reach and scan line-of-sight matter more than marketing specs suggest.
- Warranty and support—Datalogic's extension programs are worth factoring into TCO. Scanner-scales see daily high-volume use; a 5-year warranty extension (vs. standard 2-year) is typically 15–20% premium and covers routine degradation in high-traffic lanes.
The Magellan 9400i is the right choice for supermarkets, specialty grocers, and convenience retailers modernizing checkout infrastructure without wholesale POS replacement. If your lanes are still RS-232 based and integrators need to minimize retrofit scope, this unit punches above its weight. Pair it with a modern NVR and customer-facing display, and you've got a compact, reliable checkout stack with minimal training overhead. For deeper vendor comparisons and Datalogic ecosystem fit, visit the Datalogic catalog.
