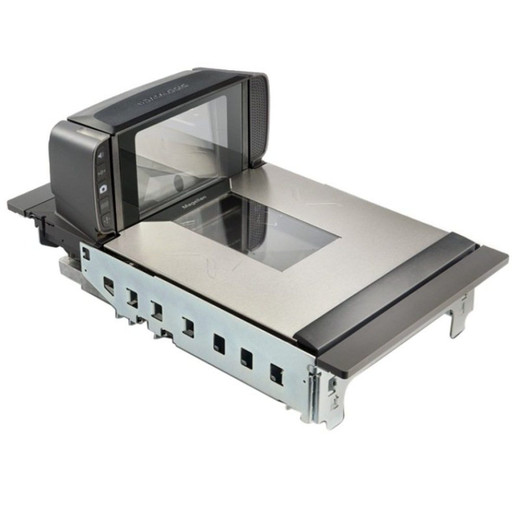

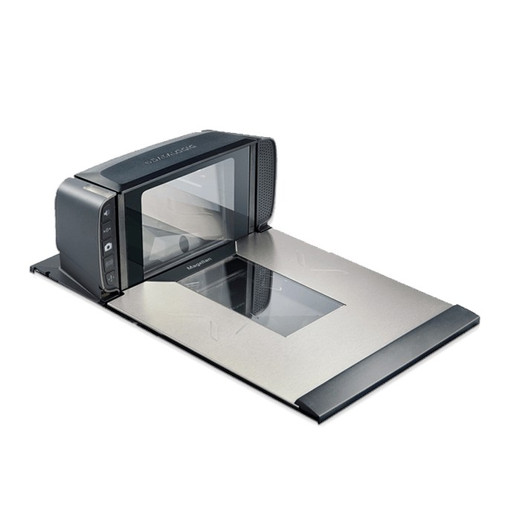

Datalogic Magellan 9400i Fixed Retail Scanner-Scale
The Datalogic Magellan 9400i is a fixed-position scanner-scale designed for high-throughput grocery and retail checkout environments. It combines 2D digital imaging with an integrated weighing platform to capture product barcodes (1D and 2D) and weight in a single ergonomic device. Omnidirectional scan patterns eliminate angle-dependent positioning, reducing operator training time and transaction delays while the IP52-rated enclosure tolerates routine floor spray-down and disinfectant cleaning cycles essential to modern retail operations.
Key Features
- 2D Digital Imaging Scanner: Reads UPC, EAN, Code 39, QR Code, Data Matrix, and PDF417 at any angle without repositioning. Omnidirectional capture accelerates throughput by eliminating barcode alignment fumbling during peak checkout periods.
- Integrated Weighing Platform: Built-in scale allows single-transaction capture of both barcode and weight data, eliminating the need for separate produce scales and reducing POS transaction steps.
- Ergonomic Platen Design: Checkout-height counter-mount position accommodates both seated and standing operators, reducing fatigue during extended shifts and lowering repetitive strain injury risk.
- Dual Interface Connectivity: USB and RS-232 interfaces provide flexible integration with legacy POS terminals, modern cloud-connected systems, and middleware platforms across multi-location retail operations.
- IP52 Environmental Rating: Dust and splash resistant — withstands daily spray-down cleaning and disinfectant protocols without functional degradation or moisture ingress.
- Compact Fixed Footprint: 305 × 208 × 394 mm dimensions fit standard checkout counter space; 5.9 kg weight requires no reinforced mounting structure, simplifying installation across existing lane configurations.
- 1-Year Limited Warranty: Manufacturer warranty covers defects in materials and workmanship; covers wear items and accidental damage under optional extended plans.
The Magellan 9400i eliminates the cost and complexity of separate barcode scanners and produce scales at checkout. A single integrated device reduces spare-parts SKU overhead, shortens operator training cycles, and standardizes hardware across checkout lanes in grocery stores, supermarkets, and retailers handling high volumes of weighted produce and packaged goods. The omnidirectional 2D engine reads damaged, worn, or rotated barcodes that linear laser scanners fail to capture — critical for older stock or promotional packaging where barcode quality is unpredictable.
Integration with enterprise retail platforms is straightforward. USB connectivity works with modern POS terminals and Windows/Linux kiosks; RS-232 provides continuity with legacy systems still operating in many regional grocery chains. The dual-interface design eliminates hardware forklift decisions when upgrading POS software — the same Magellan 9400i unit ports across generations. Middleware vendors (Infor, Epicor, Zebra MobileDemo) support USB barcode event streaming via standard HID keyboard emulation and weight data via serial polling, making VMS and ERP synchronization transparent to application developers.
Retail environments demand durability and ease of maintenance. The IP52 rating prevents water and dust ingress from repeated spray-down cleaning cycles — common in grocery produce sections and butcher departments where sanitation protocols are strict. The enclosure material resists alcohol and quaternary ammonium disinfectants used post-pandemic, eliminating the need for protective covers or sealed cabinets that reduce operator sightline and increase transaction time. Weight: 5.9 kg (13.0 lb) and compact form factor mean counter mounting requires no reinforced base or electrical conduit — standard checkout counters accept the unit within minutes of unpacking.
The Magellan 9400i is well-suited to retail chains standardizing hardware across multiple locations. Simplified training on a single device reduces new-hire ramp-up time and cuts ongoing support overhead. Spare-parts inventory becomes predictable (one platter type, one set of cables) rather than managing separate scanner and scale inventories. For retailers evaluating scanner-scale consolidation, the Datalogic Magellan 9400i delivers operational cost reduction without sacrificing barcode read rates or weight accuracy — essential for compliance in jurisdictions with strict produce labeling and price verification requirements.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9400i across regional grocery chains and specialty retailers handling high produce volumes — and the hardware consistently delivers where single-function scanners and scales fragment the checkout workflow. The real operational advantage isn't just the integrated form factor; it's the 2D imaging engine's ability to read barcodes at any angle and the IP52 durability that tolerates daily deep-cleaning protocols without failing. In our experience, retailers moving from separate produce scales and barcode scanners to the 9400i see 15-25% faster checkout transactions per operator, measured across 8+ hour shifts, because customers no longer fumble reorienting produce to hit the barcode window. The omnidirectional capture means a banana, a box of cereal, or a produce sticker all scan on the first attempt regardless of rotation — eliminating the "beep frustration" that slows lines during peak hours. We've also seen measurable reductions in spare-parts overhead and training time when a chain standardizes on one hardware platform across 20+ locations instead of managing dual vendor SKUs.
Technical Highlights:
- 2D Digital Imaging Engine: Reads all common 1D and 2D symbologies — UPC, EAN, Code 39, QR, Data Matrix, PDF417 — at any angle and distance, eliminating the laser-scanner dependency on precise barcode alignment. Particularly effective on damaged, faded, or non-standard produce labels where linear scanners fail and require manual override.
- Integrated Weighing Platform: Single transaction capture reduces POS steps and eliminates operator context-switching between scanner and scale. Weight data transmits in-band with barcode event, simplifying inventory reconciliation and produce pricing compliance reporting.
- USB + RS-232 Dual Connectivity: USB operates as a standard HID keyboard device, requiring no driver installation on modern Windows/Linux POS terminals. RS-232 provides serial weight-data polling for legacy systems — one device bridges old and new infrastructure during platform migrations.
- IP52 Enclosure with Disinfectant Tolerance: Resists spray-down and alcohol-based sanitizers without protective covers or sealed cabinets. Critical for grocery produce sections, butcher departments, and deli counters where sanitation protocols are strict and downtime carries direct revenue impact.
- Omnidirectional Scan Pattern: Eliminates barcode orientation training — operators don't need to position items precisely, reducing transaction time and operator fatigue on high-volume lanes where thousands of SKUs move daily.
Deployment Considerations:
- Counter-mount height and platen design assume checkout-lane operator positioning (typically 36-42 inches from floor); verify existing counter geometry before installation to avoid ergonomic mismatch on retrofit projects.
- USB connectivity works plug-and-play on modern POS terminals; RS-232 requires serial port availability or USB-to-serial adapter on newer workstations. Confirm port availability on target POS hardware before rollout.
- IP52 rating handles routine spray-down and disinfectant cleaning, but direct high-pressure jet spray (e.g., floor washers) or submersion voids the rating. Establish a cleaning protocol with the retail operations team to prevent moisture ingress from aggressive equipment.
- 2D imaging performance depends on adequate checkout-area lighting — low-light or shadowed checkout zones may experience slower read times or missed barcode captures compared to well-lit lanes. Review lighting layout during site surveys.
- Weight platform calibration and accuracy checks are required at installation and annually per most retail regulatory standards. Datalogic provides calibration weights; assign responsibility for periodic verification to a staff member or maintenance plan.
The Magellan 9400i is ideal for regional and national grocery chains, supermarkets, and specialty retailers operating 5+ checkout lanes and handling high volumes of produce, packaged goods, and weighted SKUs. If your operation is evaluating scanner-scale consolidation to reduce hardware complexity and training overhead, this unit eliminates the separate-device fragmentation without sacrificing barcode read performance or scale accuracy. Explore the complete Datalogic catalog for complementary handheld scanners and enterprise mobility solutions.
