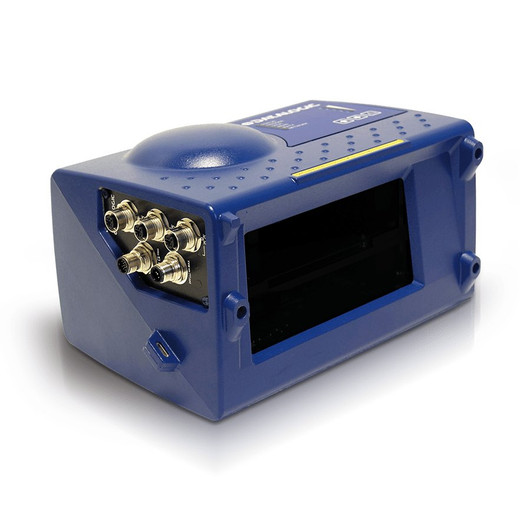

Datalogic DM3610 Industrial Dimensioner Scanner

Datalogic DM3610 Industrial Dimensioner Scanner

The Datalogic DM3610 is an ultra-high performance in-motion overhead dimensioning system engineered for automated parcel handling, manifesting, and space optimization in warehouse, distribution, and logistics operations. This Legal-For-Trade certified platform delivers NTEP and OIML certified accuracy with the speed and reliability required for high-volume enterprise environments.

Key Features

• NTEP certified accuracy: ±0.2 inches (L/W), ±0.1 inches (H)
• OIML certified accuracy: ±5 mm
• In-motion dimensioning at belt speeds up to 620 fpm (3.1 m/s)
• IP65 rated construction for durability in demanding environments
• Available in 1-head or 2-head configurations
• Legal-For-Trade certification for compliant dimension capture
• Wired connectivity via Ethernet and Serial interfaces
• 2-Year Limited Warranty

Technical Specifications

The DM3610 operates across a wide temperature range of -10°C to 50°C (14°F to 122°F), making it suitable for both climate-controlled facilities and varied warehouse conditions. The scanner weighs 8.4 kg (18.48 lb), facilitating installation and integration into existing conveyor systems. Its IP65 ingress protection rating ensures reliable performance in environments with dust, moisture, and operational wear.

Connectivity is handled through robust Ethernet and Serial connections, enabling seamless integration with warehouse management systems, parcel handling software, and enterprise logistics platforms. The system supports real-time dimension data transmission for immediate processing and validation.

Applications

• Parcel and package dimensioning in distribution centers
• Automated manifesting and billing accuracy
• Freight optimization and space utilization
• High-speed conveyor line integration
• Enterprise fleet standardization across multiple facilities

Karl Wilson

The DM3610 addresses a critical operational challenge in logistics: accurate dimension capture at production speeds without manual intervention. Its dual certification (NTEP and OIML) ensures compliance with legal-for-trade requirements in North America and international markets, eliminating costly dimension disputes and billing inaccuracies. The ±0.1 inch height accuracy specification is particularly significant for volumetric weight calculations, where even small errors compound across high-volume operations.

For organizations managing multiple facilities or integrating with third-party logistics providers, standardizing on the DM3610 reduces training overhead, simplifies spare parts inventory, and leverages consistent performance metrics across the fleet. The 620 fpm belt speed capability aligns with modern high-throughput conveyor systems, supporting 24/7 operations without bottlenecks. IP65 rating provides cost-effective protection against common warehouse hazards—dust accumulation, moisture from cleaning cycles, and incidental impacts—while maintaining dimensional accuracy over extended service life.

Deployment considerations should include integration testing with existing sortation software, network bandwidth requirements for real-time dimension streaming, and environmental validation within specific facility conditions. Datalogic's factory support and certified repair services ensure rapid issue resolution, minimizing downtime in mission-critical operations.
