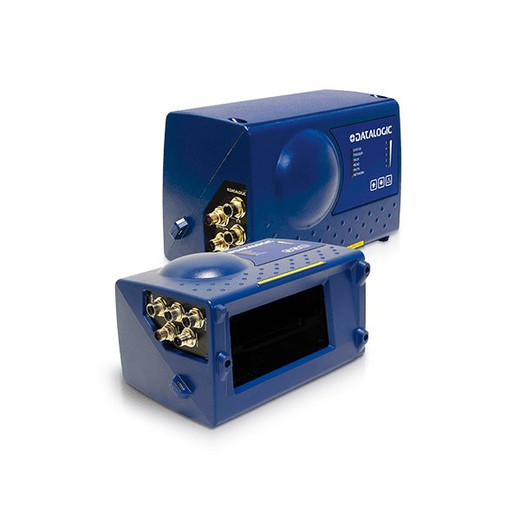

Datalogic DM3610 Industrial Dimensioner Scanner
The Datalogic DM3610 is a high-performance in-motion overhead dimensioning system engineered for automated parcel and package measurement in warehouse, distribution, and logistics environments. Built for enterprise-scale operations, this Legal-For-Trade certified dimensioner delivers precise, real-time dimension capture at conveyor belt speeds up to 620 fpm, enabling seamless integration into high-volume manifesting, sortation, and space optimization workflows.
Key Features
- Ultra-high performance in-motion dimensioning with Legal-For-Trade certification
- NTEP certified accuracy: ±0.2 inches (L/W), ±0.1 inches (H)
- OIML certified accuracy: ±5 mm
- Conveyor belt speed support up to 620 fpm (3.1 m/s)
- IP65 ingress protection rating for harsh warehouse environments
- Available in 1-head or 2-head configurations
- Wired connectivity via Ethernet and Serial interfaces
- Operating temperature range: -10°C to 50°C (14°F to 122°F)
- 2-Year Limited Warranty
Technical Specifications
The DM3610 weighs 8.4 kg (18.48 lb) and integrates seamlessly into overhead conveyor systems. Its IP65 rating ensures reliable operation in dusty, humid, and temperature-variable warehouse settings. Dual connectivity options (Ethernet and Serial) enable flexible integration with existing warehouse management systems and sortation platforms. The system's compact footprint and modular design support single-lane or multi-lane dimensioning deployments.
Applications
- Parcel and package dimensioning for e-commerce and 3PL operations
- Automated manifesting and label generation
- Dimensioning-based surcharge calculation and billing
- Cube optimization and space utilization analysis
- High-speed conveyor-based sortation systems
- Returns processing and damage assessment workflows
The DM3610 addresses a critical operational gap in modern logistics: accurate, auditable dimension capture at line speed. Legal-For-Trade certification and dual accuracy standards (NTEP and OIML) position this scanner for use in billing-sensitive applications where dimension discrepancies directly impact revenue or customer disputes. The dual-head configuration option enables simultaneous measurement of length/width and height, eliminating the need for sequential scanning passes and further accelerating throughput.
Organizations standardizing on the DM3610 gain consistency across multiple facilities, reducing training overhead and simplifying spare parts inventory management. The IP65 rating and extended temperature range ensure reliable operation in non-climate-controlled warehouse environments, where cheaper alternatives typically fail. Datalogic's factory support and certified repair services provide enterprise-grade reliability backing.
