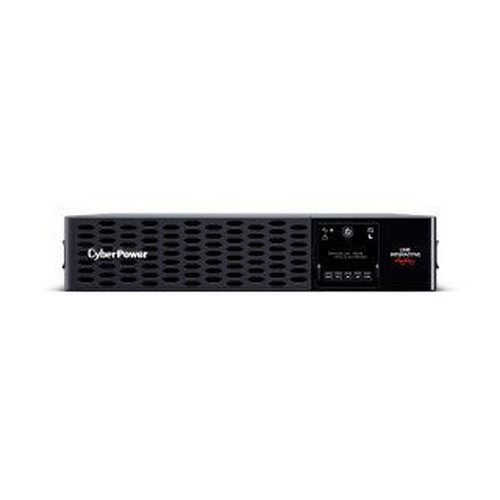

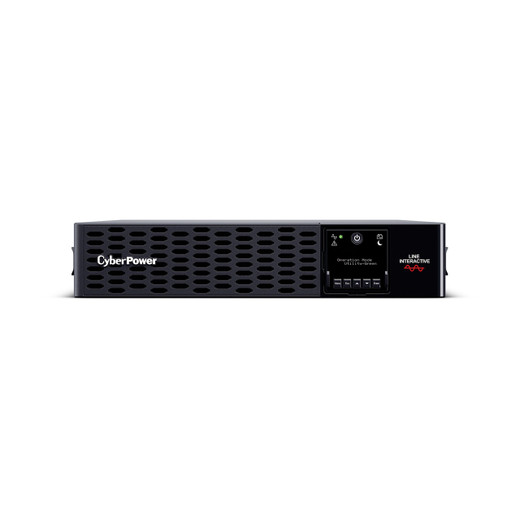

CyberPower PR2200RTXL2UHVAN 2200W Line-Interactive Rack/Tower UPS
Overview
The CyberPower PR2200RTXL2UHVAN is a 2.2 kVA / 2200 W line-interactive UPS designed for rack or tower deployment in environments where power quality is critical — think multi-camera NVR closets, enterprise network rooms, and edge server installations where a 4 ms switchover and a true sine wave output are non-negotiable. With an input operating range of 148–288 V and automatic voltage regulation, it corrects brownouts and overvoltages without touching the battery, extending battery life where utility power is unreliable.
This is not a basic standby unit. The CyberPower PR-series is engineered for active power conditioning — the kind of load-bearing reliability that network equipment and security infrastructure require during a grid event. If you're specifying power protection for a network video recorder rack or a PoE switch stack, the 2200 W capacity and wide input voltage window make this a deployable fit where lesser units would already be running on battery.
Key Features
- 2.2 kVA / 2200 W Output Capacity: Enough headroom to carry a densely populated 2U NVR, a managed PoE switch, and auxiliary network gear simultaneously. Sizing at 80% of rated load is standard practice — plan for roughly 1760 W of continuous draw before you start trimming the load list.
- True Sine Wave Output: Active PFC power supplies (common in modern servers, NVRs, and high-end network gear) require a sine wave UPS or they choke on the stepped approximation that cheaper units produce. The PR2200RTXL2UHVAN delivers a clean sine wave whether on utility or battery — no compatibility surprises at 2 a.m.
- Line-Interactive Topology with AVR: Automatic Voltage Regulation corrects input voltage swings between 148 V and 288 V without switching to battery. In facilities with chronic undervoltage (common in older buildings or at the end of long branch circuits), this extends battery cycle life significantly because the battery isn't cycling on every sag.
- 4 ms Transfer Time: At 4 ms, the switchover from utility to battery sits well below the 8–20 ms tolerance of most enterprise-grade equipment. Double-conversion UPS units offer zero transfer time, but for most security and network rack applications, 4 ms is adequate — and line-interactive avoids the efficiency penalty of continuous AC-DC-AC conversion.
- 2430 J Surge Energy Rating: Surge protection rated at 2430 joules handles the kind of transients that come in on utility feeds during storm events or utility switching operations. Coupled with EMI/RFI noise filtering, this cleans up what reaches your equipment on both sides of the event.
- Wide Input Frequency Range (47–63 Hz): Accepts both 50 Hz and 60 Hz input, making the PR2200RTXL2UHVAN deployable in international facilities or mixed-grid environments without additional conditioning upstream.
- Output Voltage Regulation to ±5%: Output is held within 5% of nominal across the 200–240 V output range. For sensitive switching equipment and storage controllers, tight voltage regulation reduces wear on internal regulators and power stages.
- Audible Alarm System: Dedicated low battery and overload alarms give technicians an audible heads-up before a load-shedding event. In unmanned server rooms, this matters — a triggered alarm before battery exhaustion provides a window to safely shut down non-critical loads.
- Rack/Tower Convertible Form Factor: Ships ready to deploy in either orientation — 2U rack-mount in a standard 19-inch enclosure or freestanding tower beside a workstation or small NVR stack. No separate chassis required for either mode.
- EMI/RFI Noise Filtering: Inline filtering suppresses conducted noise from the utility feed before it reaches connected equipment. For surveillance systems with analog video or sensitive sensor inputs, reducing electrical noise upstream is a straightforward quality-of-signal improvement.
Integration & Compatibility
The PR2200RTXL2UHVAN outputs 200–240 V AC at 50/60 Hz, making it compatible with international rack equipment and dual-voltage appliances. The 20 A maximum output current supports mixed loads including PoE switches, NVR appliances, and edge computing nodes. For facilities deploying PoE network switches alongside camera infrastructure, the PR2200RTXL2UHVAN's capacity and surge rating provide a solid upstream power conditioning layer. Review your UPS management software compatibility and communication port options against this model's interface specifications before finalizing the deployment — runtime management and graceful shutdown scripting depend on the communication interface available.
Frequently Asked Questions
Q: What is the output power capacity of the PR2200RTXL2UHVAN?
A: The PR2200RTXL2UHVAN is rated at 2.2 kVA / 2200 W output. For sustained loads, best practice is to keep connected equipment below 80% of rated wattage — approximately 1760 W continuous.
Q: Does the PR2200RTXL2UHVAN produce a true sine wave output?
A: Yes. The PR2200RTXL2UHVAN outputs a true sine wave on both utility and battery power. This is required for compatibility with active PFC power supplies found in modern servers, NVRs, and managed network switches.
Q: What input voltage range does the PR2200RTXL2UHVAN accept?
A: The unit accepts input voltages between 148 V and 288 V via its built-in Automatic Voltage Regulation (AVR), correcting sags and surges without switching to battery power.
Q: Can the PR2200RTXL2UHVAN be rack-mounted?
A: Yes. The PR2200RTXL2UHVAN is a convertible rack/tower unit. It installs in a standard 19-inch equipment rack (2U) or operates freestanding in tower orientation — no additional chassis needed for either configuration.
Q: What is the transfer time to battery during a power failure?
A: The PR2200RTXL2UHVAN switches to battery in 4 ms, which is within the tolerance of virtually all enterprise-grade servers, NVRs, and network equipment.
Q: What surge energy rating does the PR2200RTXL2UHVAN provide?
A: Surge protection is rated at 2430 joules. The unit also includes EMI/RFI noise filtering to suppress conducted interference from the utility feed.
The PR2200RTXL2UHVAN sits in a category where the topology choice — line-interactive vs. double-conversion — is genuinely debated for security infrastructure. My read: for most NVR-and-switch rack builds, the 4 ms transfer time and true sine wave output of this unit hit the practical ceiling of what the load actually needs, and you avoid the 10–15% efficiency tax that always-on double-conversion imposes. The 148–288 V AVR window is wide enough that I'd deploy this in most North American commercial buildings without hesitation.
Technical Highlights:
- 2430 J Surge Rating: Among the more substantial surge ratings in this class — meaningful when utility feeds serve mixed industrial and commercial loads where switching transients are routine rather than rare.
- AVR Range 148–288 V: A 140 V span on the input window means brownouts and overvoltages that would cycle a narrower-tolerance UPS onto battery are handled transparently. Battery life improves directly as a result in facilities with marginal utility power.
- Pure Sine Wave on Battery: The spec that separates this from budget alternatives — active PFC supplies in NVRs and enterprise switches will fault or throttle on a simulated sine wave. This unit removes that failure mode entirely.
Deployment Considerations:
- At 2200 W output, confirm your branch circuit is protected at 20 A minimum for the 200–240 V output side — the unit's maximum output current is rated at 20 A, so circuit sizing must match exactly, not approximate.
- The 50/60 Hz dual-frequency input is useful in mixed environments, but verify the output frequency matches connected equipment expectations — some precision instruments are sensitive to output frequency drift under load.
This is a well-matched choice for a 10–20 camera NVR rack in a commercial building with a known history of voltage sags: the wide AVR window does real work there, and the 2200 W headroom covers a densely loaded 2U recorder plus a managed PoE switch without pushing the unit past safe operating thresholds.
