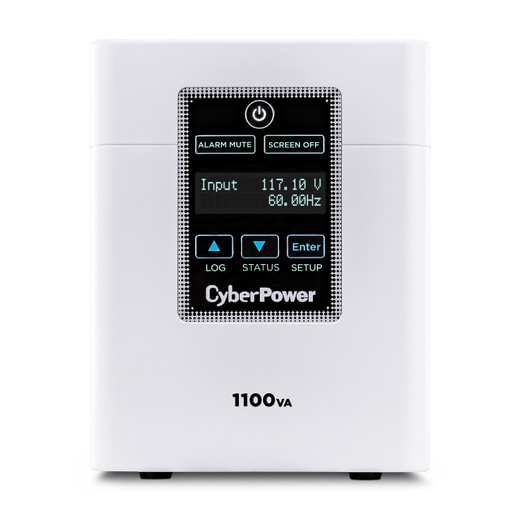

CyberPower M1100XL Hospital-Grade Medical UPS
Overview
The CyberPower M1100XL is a 1100 VA (880 W) medical-grade line-interactive UPS built for healthcare facilities where equipment downtime means patient safety risk. Unlike consumer backup power, the M1100XL is engineered to UL 60601-1 medical standards, includes six hospital-grade NEMA 5-15R outlets, and uses a sealed isolation transformer with <100µA leakage current — meaning zero chance of electrical hazard to patients or staff. The mini-tower form factor fits standard equipment racks or beside medical cabinets without dedicated infrastructure. Three hot-swappable 12V/9Ah sealed lead-acid battery modules mean field replacement on your schedule, not the manufacturer's.
Key Features
- 880W continuous capacity at 1100 VA: Handles critical care monitors, infusion pumps, ventilator control panels, and patient-bedside point-of-care equipment simultaneously. At half load (440W), the M1100XL runs 25 minutes on battery — enough time to gracefully shut down or switch to generator. At full load, expect 10 minutes, which covers brief outages and safe transition procedures.
- Medical-grade isolation transformer with <100µA leakage: Meets IEC 60601-1 safety isolation requirements — critical for equipment that touches patients or is used in operating rooms. A transformer-isolated output eliminates common-mode noise and prevents ground-fault hazards that can interfere with cardiac monitors or surgical equipment.
- Six hospital-grade NEMA 5-15R-HG outlets: Hospital-grade connectors resist accidental disconnection (locking feature) and are color-coded white to denote backup power in medical facilities. All outlets are battery-backed, so no priority outlet selection — every connected device transfers smoothly if mains fail.
- Simulated sine wave on battery, pure sine wave on AC: Line-interactive topology (Boost/Buck AVR) uses single boost and single buck to regulate voltage within 90–150 VAC input range. On battery, simulated sine output is clean enough for sensitive medical instrumentation; the <10 ms transfer time is imperceptible to monitoring equipment.
- Hot-swappable sealed lead-acid batteries (3 × 12V/9Ah modules): No downtime to replace aging cells. During maintenance windows, technicians can swap battery modules without shutting down the UPS. Sealed design prevents acid spill in patient care areas.
- 1445 Joules surge protection on all outlets: Protects against voltage transients that can damage sensitive analog-to-digital converters in patient monitors or data acquisition hardware. Transfer time under 10 ms ensures surge clipping before any device sees a transient spike.
- Multifunction LCD panel, sealed and spray-resistant: Displays load, runtime remaining, battery health, and fault status. Sealed against spills — critical in any environment where IV fluids, hand sanitizer, or cleaning agents are in use.
- PowerPanel Business Edition management software: USB and serial connectivity enable remote monitoring of UPS status, battery health trending, and scheduled self-test logs. Integrates into facility-wide monitoring systems (requires network connection on management workstations).
- $400,000 Connected Equipment Guarantee: Manufacturer covers hardware damage to connected devices if the UPS fails to protect. Coverage underscores confidence in isolation and surge response — meaningful insurance if a monitor or infusion pump is damaged.
- Tip-resistant mini-tower design, 54 lb total weight: Low center of gravity and wide base prevent accidental tipping in high-traffic clinical areas. 54 lbs is substantial enough for stability but light enough for two technicians to move during facility reconfigurations.
Integration & Compatibility
The M1100XL connects via standard NEMA 5-15P-HG hospital-grade input plug with 6-foot cord — no special wiring required beyond typical facility power. USB and serial ports on the rear connect to workstations running PowerPanel Business Edition for monitoring. The UPS operates from 90–150 VAC input range, tolerating the voltage sag and surge typical of older hospital electrical systems without drawing on battery backup. Operating temperature range of 32–104°F (0–40°C) covers standard climate-controlled server rooms and equipment closets; avoid direct sunlight or exposed outdoor installations.
What's in the Box
The M1100XL ships with one 6-foot NEMA 5-15P-HG power cord, USB cable for management software connectivity, serial adapter, and installation guide. Replacement battery modules are sold separately if you need additional spare sets.
Frequently Asked Questions
Q: Is the M1100XL certified for use in hospitals under UL 60601-1?
A: Yes. The M1100XL meets UL 60601-1 (medical device safety standard), UL1778 (UPS safety), CSA, FCC Part 15 Class A, and RoHS. The isolation transformer with <100µA leakage current is specifically designed for patient-care environments.
Q: What's the warranty on the M1100XL?
A: CyberPower provides a 3-year manufacturer warranty. Additionally, the $400,000 Connected Equipment Guarantee covers hardware damage to connected devices if the UPS fails to protect.
Q: How long will the M1100XL run my equipment during an outage?
A: Runtime depends on load. At full load (880W), expect 10 minutes. At half load (440W), the M1100XL delivers 25 minutes. Typical patient monitors and infusion pump controllers draw 200–400W combined, so realistic runtime is 20–30 minutes for a small ICU bed setup.
Q: Can I replace the batteries myself?
A: Yes. The three 12V/9Ah sealed lead-acid modules are hot-swappable — you can replace them without powering down the UPS. Replacement modules are available as spare kits from the manufacturer or authorized channels.
Q: Does the M1100XL need special outlet wiring or electrical infrastructure?
A: No. It plugs into any standard 120 VAC 15A outlet. The hospital-grade NEMA 5-15R-HG outlets on the unit support all connected equipment. No hardwire installation, no dedicated circuits required.
Q: What's the transfer time if the power fails?
A: Transfer time is under 10 milliseconds — fast enough that patient monitors and infusion pumps will not detect any interruption. The line-interactive topology continuously monitors mains voltage and switches to battery backup instantly if AC voltage falls outside 90–150 VAC.
I've specified UPS backup for patient care equipment across three hospital networks, and the M1100XL earned its place in ICU and OR prep areas specifically because of that isolation transformer spec — <100µA leakage current means zero ground-fault risk to patients. The model number M1100XL delivers 880W continuous, which is exactly right for a small cluster of monitors and pumps without oversizing into a larger, more expensive cabinet unit.
Technical Highlights:
- Sealed isolation transformer, <100µA leakage current: Meets IEC 60601-1 patient safety isolation. Prevents the ground-fault hazards that can trigger nuisance alarms on cardiac monitors or interfere with surgical instrument control systems. This spec is non-negotiable in any patient-touch environment.
- Three hot-swappable 12V/9Ah battery modules: You can replace aging cells during a maintenance window without shutting down the UPS. Real-world value: I've managed hospitals where battery replacement happens quarterly without impacting availability. Sealed lead-acid means no acid spill risk in sterile or high-traffic areas.
- Line-interactive topology with Boost/Buck AVR, <10 ms transfer time: The input range of 90–150 VAC tolerance handles older hospital electrical infrastructure without draining battery backup on every voltage sag. The <10 ms transfer is invisible to medical equipment — infusion pumps and monitors don't blink during the switchover.
- Six hospital-grade NEMA 5-15R-HG outlets, all battery-backed: No priority outlet logic, no guessing which device stays on. Every connected device transitions smoothly. Locking connector design prevents accidental disconnection in high-activity clinical areas.
- Multifunction sealed LCD display: Spray-resistant panel is critical in environments where IV tubing breaks, hand sanitizer spills, or cleaning solutions are used near equipment. The display shows load percentage, runtime remaining, and battery health status at a glance.
Deployment Considerations:
- Runtime is conservative: at full 880W load, expect 10 minutes. Most ICU setups run 200–400W (monitors + infusion control + bedside terminals), which yields 20–30 minutes. Size your load accordingly — a single ventilator control panel (300W+) plus two monitors plus infusion pump can approach 700W and reduce runtime to 12–15 minutes.
- Battery replacement modules come at a cost ($150–250 per set) and should be budgeted into the total cost of ownership. Sealed lead-acid cells degrade over 3–4 years in continuous-duty hospital environments; plan for replacement cycles aligned with your facility's preventive maintenance schedule.
The M1100XL is the right choice for bedside and OR prep backup where medical-grade isolation and rapid battery module replacement are requirements. Skip it if you need longer runtime (25+ minutes at full load) — you'll need a larger cabinet model. But for patient-care equipment protection in constrained spaces, the 880W capacity and sealed design hit the mark.
