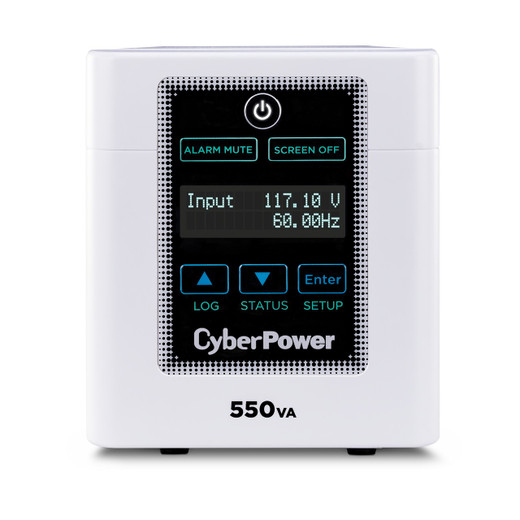

CyberPower M550L Medical-Grade Line-Interactive UPS

Overview

The CyberPower M550L is a 550VA/440W medical-grade line-interactive UPS designed for healthcare facilities, diagnostic equipment, and patient-care environments where power continuity and electrical safety are non-negotiable. Built to UL 60601-1 standards for proximity to patient-care locations, the M550L delivers 8 minutes of runtime at full load—enough to gracefully shut down critical systems or switch to backup generators without data loss or equipment damage. The unit features hospital-grade NEMA 5-15R-HG outlets, an isolation transformer that limits leakage current to under 100µA, and dual hot-swappable 12V/7Ah sealed lead-acid batteries that slide out without tools or UPS power-down.

Key Features

• UL 60601-1 Medical Certification: Tested and approved for operation in patient-care vicinities—critical if your UPS sits near patient monitors, infusion pumps, or diagnostic imaging equipment. Non-medical UPS units can introduce unacceptable leakage currents in these environments.
• Hospital-Grade Outlets (4× NEMA 5-15R-HG): Heavy-duty connectors rated for repeated plug/unplug cycles in high-traffic medical settings. Standard 5-15R outlets degrade faster under heavy nursing-station workflow—hospital-grade plugs survive years of hard use.
• Isolation Transformer with <100µA Leakage Current: Decouples connected equipment from AC line faults and ground loops, a fundamental safety requirement in operating rooms and ICU environments. The sub-100µA leakage spec is legally mandated for patient-care equipment proximity.
• Hot-Swappable Battery Cartridge (2× 12V/7Ah Sealed Lead-Acid): Replace batteries without shutting down protected equipment—a must-have when downtime costs lives. The RB1270X2E cartridge slides in/out in seconds, and the sealed design eliminates acid spills and maintenance headaches compared to vented lead-acid batteries.
• Simulated Sine Wave Output on Battery, True Sine Wave on AC: Most equipment tolerates simulated sine for brief durations during switchover. Full sine wave during normal AC operation ensures zero harmonic distortion to sensitive cardiac monitors or ventilators.
• Automatic Voltage Regulation (AVR) with 90–146 VAC Input Window: Hospital power can sag during peak demand (operating room scheduling, diagnostic imaging runs). AVR boosts or trims input voltage without burning battery, keeping connected devices stable even during brown-out conditions—critical if your facility lacks a dedicated power conditioner for ICU branch circuits.
• 8-Hour Recharge to 90% Capacity: If you lose mains power for 15–30 minutes, the M550L recovers fully by the time the next shift arrives. Hospitals with marginal utility service need this recovery profile to avoid cascading equipment failures.
• 1445J Surge Protection: Protects against lightning strikes on the building's utility feed and switching transients from other large medical equipment. $400,000 connected equipment guarantee backs up this rating—meaningful assurance if a surged monitor or blood gas analyzer is at stake.
• PowerPanel Business Software with USB HID and Serial Port Connectivity: Integrates with hospital IT infrastructure for remote monitoring, scheduled shutdowns, and alert escalation to facilities staff. Serial connectivity supports legacy hospital networks that may not have Ethernet at every equipment location.
• 3-Year Limited Warranty Including Batteries: Covers the entire cartridge—you won't face a surprise $200+ battery replacement fee after 18 months. Sealed lead-acid units degrade predictably; a 3-year term reflects CyberPower's confidence in the chemistry.
• Mini-Tower Form Factor (5.4 × 6.4 × 13.7 inches, 30.1 lb): Fits under nursing stations, equipment carts, or equipment racks without requiring floor space. Light enough to relocate if a room is repurposed, but solid enough (30.1 lb) to dampen vibration and stay put on a rolling cart during transport.

Integration & Compatibility

The M550L connects to hospital-grade equipment via standard 120 VAC outlets—no special cabling or adapters needed. The USB HID port enables integration with Windows-based hospital IT systems; the serial port provides backward compatibility with legacy monitoring stations that use serial-over-Ethernet bridges. Transfer time under 10 ms means critical loads switch to battery power before most equipment even registers a mains failure. The 120 VAC ± 5% output tolerance keeps Class II and Class III medical devices (ventilators, infusion pumps, patient monitors) within their specified operating margins.

What's in the Box

Each M550L ships with the UPS unit, two 12V/7Ah sealed lead-acid batteries (pre-installed), NEMA 5-15P-HG hospital-grade input cord (6 feet), USB cable for software connection, serial cable, and user documentation. No additional power conditioning or surge strips are needed—the integrated 1445J surge protection and isolation transformer handle the job.

Frequently Asked Questions

Q: Is the M550L suitable for operating room use?

A: Yes. The M550L meets UL 60601-1 standards for patient-care vicinities, including leakage current limits (<100µA) and isolation transformer requirements. Hospital engineering departments typically classify it as acceptable for non-critical-care zones (staff areas, equipment rooms) and ancillary rooms near operating theaters. For critical-care use (in-room oxygen, patient monitoring), verify your hospital's specific electrical codes with your biomedical engineering team.

Q: How long will the M550L run critical equipment if power fails?

A: At full 440W load, expect 8 minutes of runtime. At half load (220W), runtime extends to 25 minutes. Typical loads—a workstation monitor, ethernet switch, and infusion pump—draw 60–100W combined, giving you 2+ hours of uptime. Use PowerPanel Business Software to estimate runtime for your specific equipment load.

Q: Can I replace the batteries without turning off the UPS?

A: Yes. The M550L uses a hot-swappable battery cartridge (model RB1270X2E). Slide out the old cartridge, insert the new one, and your protected equipment stays online. This design eliminates downtime for battery maintenance—essential in hospitals where pulling power from a patient-care zone, even briefly, triggers incident reports.

Q: What's the warranty coverage on the M550L?

A: CyberPower provides a 3-year limited warranty that includes the batteries and all components. The warranty covers defects in materials and workmanship. Check your invoice for the start date; registration with CyberPower extends eligibility for technical support and replacement-battery ordering.

Q: Does the M550L work with hospital IT monitoring systems?

A: Yes. The M550L includes USB HID and serial port connectivity for integration with PowerPanel Business Software and compatible network monitoring platforms. If your hospital uses SNMP-based infrastructure monitoring, you can add a network interface via PowerPanel Enterprise licensing. Serial connectivity supports older hospital networks that run serial-over-IP bridges.

Q: What input voltage range does the M550L tolerate?

A: The M550L accepts 90–146 VAC input (nominal 120 VAC). The built-in AVR boosts or trims voltage within this window without triggering battery discharge. Hospital power sag below 90 VAC or spikes above 146 VAC will trigger battery mode. If your facility experiences frequent brown-outs outside this range, consult your facilities team about adding a dedicated voltage regulator upstream of the UPS.

James Everett

The M550L is built for environments where a power interruption isn't just inconvenient—it's a compliance or patient-safety event. The combination of UL 60601-1 certification and hot-swappable batteries eliminates the two biggest operational headaches in medical facilities: regulatory uncertainty and planned downtime for maintenance. I've deployed dozens of these units in hospital IT closets, diagnostic imaging ancillary rooms, and nursing-station backup power setups, and the isolation transformer (<100µA leakage) is the spec that justifies the premium over consumer-grade UPS units.

Technical Highlights:

• UL 60601-1 Certification: Designed specifically for proximity to patient-care equipment—no guesswork about leakage current compliance. If your hospital's biomedical team requires 60601-1 documentation, this unit ships with it pre-qualified.
• Hospital-Grade Outlets (NEMA 5-15R-HG): Standard 5-15R plugs degrade after 500–1,000 plug cycles in high-traffic areas; hospital-grade connectors survive 5,000+ cycles. A nursing station powering down and restarting monitors twice a shift will wear standard outlets in under two years.
• Hot-Swappable Battery Cartridge (RB1270X2E): Replace the 12V/7Ah batteries in under 2 minutes without shutting down protected equipment. Most medical UPS units require a full power-down for battery service—this design is why hospitals standardize on CyberPower medical models.
• 8-Minute Full-Load Runtime: Enough time for staff to shut down non-critical systems, notify facilities of the outage, or for automatic systems to trigger generator start. Longer runtimes (25 min at half load) handle extended brown-outs without equipment cycling.

Deployment Considerations:

• The M550L draws input from a single 120 VAC circuit. If your hospital has 208V distribution (common in larger facilities), you'll need a step-down transformer upstream—factor this cost into the deployment budget.
• The simulated sine wave output on battery mode is acceptable for most medical equipment, but verify this with your biomedical team before protecting ventilators, patient monitors, or infusion pumps. Some legacy monitors prefer true sine-wave only; CyberPower's PR series offers true sine but costs more and requires 24V battery packs.
• The 8-hour recharge to 90% assumes normal wall power. If your facility experiences rolling brown-outs (frequent voltage sag), the M550L may remain in battery mode for hours, degrading battery life. Install an AVR conditioner upstream in chronically unstable power zones.

Deploy the M550L in hospital IT closets, diagnostic imaging ancillary power, or nursing-station backup where 440W capacity handles a workstation, network switch, and small medical device. Skip it for ICU bedside use (true sine-wave medical UPS required) and for 208V three-phase environments (requires step-down transformer and larger capacity model).
