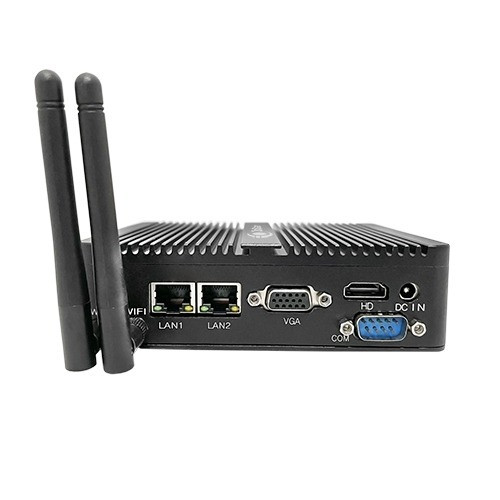

PioneerPOS QCT-MA4FCQ-WB Compact x86 Point-of-Sale Terminal
The PioneerPOS QCT-MA4FCQ-WB (CT15M) is a compact x86 terminal engineered for point-of-sale, kiosk, and localized video recording applications. Built around the Intel Celeron J1900 quad-core processor—a low-power CPU rated for continuous 24/7 operation—it combines modest compute capacity with a thermal footprint small enough for countertop or wall-mount deployment where rack infrastructure isn't feasible. Shipping with 4GB DDR3 RAM, 120GB SSD storage, and Windows 10 Pro pre-installed, the unit operates as a standalone POS workstation, lightweight edge recorder, or secondary surveillance node in distributed architectures.
Key Features
- Intel Celeron J1900 Processor: Quad-core, 1.92–2.42 GHz. Handles 2–4 simultaneous camera streams (720p–1080p) or POS transaction processing without bottleneck; sufficient for edge analytics on modest deployments.
- 4GB DDR3 RAM: Supports Windows 10 Pro and lightweight surveillance client software. Adequate for local recording workflows; not sized for high-concurrency multi-user environments or real-time 4K decoding.
- 120GB SSD Storage: Pre-partitioned for OS and application data. Provides local recording buffer (typically 1–3 days of H.264 two-camera footage at standard bitrate). Supports Windows Update cycles and surveillance plug-in deployment without external NAS.
- Windows 10 Pro: Pre-licensed and activated. Native ONVIF client compatibility via third-party recording software (Milestone, Genetec, Axis Camera Station). TPM 2.0 integration enables Bitlocker drive encryption and credential vault for multi-user security policies.
- Dual Connectivity (Ethernet + Wi-Fi): Gigabit Ethernet (RJ45) for primary uplink; integrated 802.11ac Wi-Fi for redundant or secondary network path. Useful in retail or kiosk environments where cable routing is constrained.
- TPM 2.0 Security Module: Hardware-backed encryption and secure boot. Isolates surveillance credentials and POS transaction keys from OS-level threats. Supports Windows Hello (if display peripheral included) and enterprise domain join policies.
- Compact Form Factor: Small footprint (approximately 200mm × 150mm × 60mm) — fits under-counter, above-door, or wall-mounted without occupying rack space. Operating range −40°C to +60°C; sustained >45°C requires active cooling or low ambient.
- Low Power Consumption: Typically 20–28W under surveillance load. Compatible with 12V/24V DC power supplies or PoE+ injector upgrade (non-standard PoE, requires secondary injector). No external UPS required for brief power dips due to onboard battery-backed RTC.
Surveillance & POS Integration
The QCT-MA4FCQ-WB functions as either a standalone POS terminal or an embedded edge recorder in surveillance networks. Windows 10 Pro natively supports ONVIF Profile S clients, meaning plug-and-play integration with Milestone XProtect, Genetec Security Center, and Axis Camera Station without proprietary gateway hardware. The J1900 can record 2–4 H.264 camera feeds simultaneously at 1080p/30fps to local SSD; for higher channel counts or 4K encoding, offload to a primary NVR or cloud gateway. The TPM 2.0 module is critical in retail environments where POS and surveillance data coexist — it encrypts sensitive transaction logs and video metadata at the hardware level, isolating them from credential compromise at the OS layer.
In kiosk deployments (ticketing, self-checkout, information displays), the unit's compact size and pre-loaded Windows 10 Pro environment accelerate time-to-deployment. Integrators can install custom kiosk lockdown software, point-of-sale applications, or third-party recording clients without touching the BIOS. Dual network connectivity (Ethernet + Wi-Fi) ensures uptime in environments where single-path connectivity is unreliable — a common scenario in temporary retail pop-ups or outdoor kiosks.
Storage & Recording Workflow
The 120GB SSD is partitioned for OS, applications, and local recording buffer. In a typical two-camera H.264 workflow (1080p, 4 Mbps per stream, 24/7 operation), expect approximately 1.5–2 days of local retention before circular buffer overwrites. This design is intentional: the CT15M is not a primary archive NVR but rather an edge node that buffers critical footage locally while streaming to a central management platform via Ethernet or Wi-Fi. If longer retention is required, configure the device to push footage to network-attached storage (NAS) or cloud gateway via RTSP or proprietary client API. The SSD eliminates mechanical spin-down latency, improving boot time and video seek performance relative to spinning HDD alternatives — critical for forensic review in retail or loss-prevention scenarios.
Environmental & Physical Considerations
Operating temperature ceiling is +60°C; in retail or outdoor kiosk installations above 45°C ambient, provision active cooling (fan ducting or cabinet ventilation). The onboard battery-backed RTC (real-time clock) preserves system time and logging timestamps during brief power interruptions, preventing forensic clock-skew artifacts. Power supply is 12V or 24V DC via proprietary connector (not USB, not standard 120V AC); ensure your installation includes appropriate power conditioning. No monitor, keyboard, or mouse are included — integrators must supply display peripherals and configure remote management tools (RDP, SSH via third-party terminal) for headless operation. Windows 10 Pro is pre-activated; fresh OS installation is possible but not recommended without a valid product key.
Compliance & Warranty
The QCT-MA4FCQ-WB carries a 4-year manufacturer warranty covering parts and labor. Windows 10 Pro is pre-licensed (OEM license, non-transferable). The unit does not carry NDAA Section 889 certification nor is it marketed for classified government use — it is a commercial off-the-shelf (COTS) retail and surveillance device. For deployments requiring FIPS 140-2 encryption or formal security accreditation, consult with your system architect before selection. The device integrates with standard enterprise management frameworks (Microsoft SCCM, Intune) via Windows domain join and TPM policies, simplifying lifecycle management in multi-site deployments.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the PioneerPOS QCT-MA4FCQ-WB across small-to-medium retail chains, QSR counters, and kiosk networks where the combination of POS workload and localized surveillance recording must coexist in a single compact unit. The real value here is not raw compute power — the J1900 is not a performance workhorse — but rather the pragmatic balance between thermal footprint, power efficiency, and Windows 10 Pro's ecosystem flexibility. In retail environments, space under the counter or above the door is precious; a compact x86 terminal that runs both POS client software and a lightweight ONVIF recorder eliminates the need for two separate appliances, reducing capex and integration complexity. The TPM 2.0 module is the differentiator we see overlooked most often: in loss-prevention scenarios, having hardware-backed encryption for concurrent POS transactions and surveillance metadata prevents a single compromised OS credential from leaking both payment card data and forensic video evidence. That separation is worth the upgrade cost alone.
That said, the J1900 is not a beast. We don't recommend it for facilities trying to record more than four camera streams simultaneously or decode 4K content in real time. On a single 120GB SSD, you're looking at roughly 48 hours of dual-camera H.264 recording before circular buffer kicks in — that's by design, and it works well if the unit is configured as an edge node that streams to a central NVR. Where we've seen friction: integrators who specify it as a primary recorder for six cameras, then encounter CPU saturation and disk thrashing. The device is not designed for that role. Know your channel count and bitrate before installation.
Technical Highlights:
- Intel Celeron J1900 quad-core processor: Rated for continuous 24/7 operation at low thermals (TDP ~10W). Sufficient for 2–4 simultaneous 1080p H.264 streams or POS client + light recording concurrently. CPU headroom is spare, but thermal footprint is minimal — critical for small-footprint countertop or wall-mount installations.
- 120GB SSD with battery-backed RTC: SSD eliminates mechanical latency, accelerating video seek and forensic review. Onboard battery preserves system time during brief power loss, preventing timestamp artifacts in recorded evidence. Circular buffer design encourages integration with central NVR rather than sole reliance on local storage.
- TPM 2.0 + Windows 10 Pro Bitlocker: Hardware-encrypted credential vault isolates POS and surveillance secrets from OS-level compromise. In retail environments, this means payment data and video evidence are protected by separate cryptographic domains — single credential breach does not leak both.
- Dual network (Ethernet + Wi-Fi 802.11ac): Redundant uplink paths improve availability in retail environments with unreliable single-path cabling. Wi-Fi fallback is practical for temporary kiosk deployments or locations where running Ethernet is cost-prohibitive.
- 4-year warranty coverage: OEM parts + labor warranty simplifies field replacement and reduces total cost of ownership across multi-site deployments. Pre-activated Windows 10 Pro license (OEM, non-transferable) avoids licensing friction at installation.
Deployment Considerations:
- CPU saturation occurs above 4 simultaneous 1080p H.264 streams; if your application requires more channels, spec a J3455 variant or migrate to a multi-core NVR. The J1900 is not the answer to "we need cheap surveillance for many cameras."
- SSD capacity (120GB) yields roughly 48 hours of two-camera dual-stream recording at standard bitrate. Configure circular buffer aggressively and architect a streaming path to central NVR; don't rely on the CT15M as sole archive.
- Operating temperature ceiling is +60°C; sustained operation above 45°C requires active cooling or low-ambient environment. In hot retail (near kitchen, under skylights, outdoor kiosks), plan for ductwork or cabinet fan intake to avoid thermal throttling.
- Power supply is proprietary 12V/24V DC connector (not standard 120V AC or USB-C). Ensure your installers carry correct power adapter and that site power conditioning is adequate. PoE integration requires third-party injector (non-standard PoE).
- No integrated display, keyboard, or mouse. Provision separate peripheral hardware and configure remote management (RDP, SSH) for headless operation. Windows 10 Pro is pre-activated OEM license; do not attempt OS reinstall without valid product key.
- Suitable for: single-location or small-chain retail POS + local surveillance, kiosk networks (ticketing, self-checkout), secondary/failover recording nodes in distributed surveillance, edge analytics on 2–4 camera feeds. Not suitable for: high-channel-count primary NVR, 4K multi-stream recording, outdoor enclosure without active cooling.
The PioneerPOS QCT-MA4FCQ-WB is the right fit for integrators building small-footprint retail surveillance or kiosk networks where POS and video must coexist in one compact appliance. It's not a performance bargain — it's a space and power efficiency bargain, and its TPM 2.0 security module is genuinely valuable in retail environments. Pair it with a well-scoped central NVR, configure it as an edge recorder, and it'll deliver years of reliable operation. For more options across the PioneerPOS lineup, see our PioneerPOS catalog.
