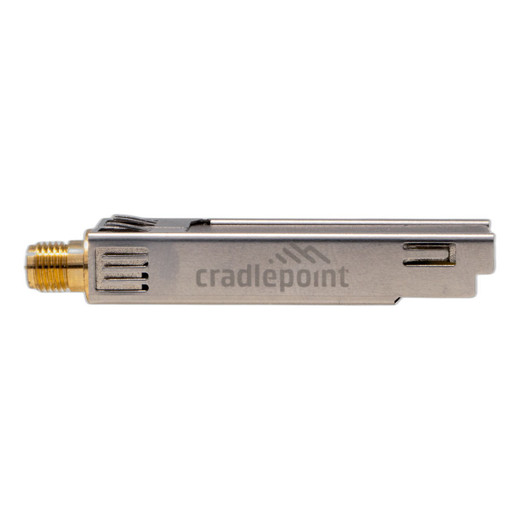

Cradlepoint BF-MC20-BT Bluetooth 5.1 LE Plug-In Module
Overview
The Cradlepoint BF-MC20-BT (often searched as BF MC20 BT) is a Bluetooth 5.1 Low Energy module designed as a plug-in adapter for Cradlepoint edge routing and IoT connectivity deployments. This module operates in two distinct modes—beacon mode for proximity-based marketing and location services, and gateway mode for direct sensor connectivity—making it versatile across warehouse automation, retail analytics, and enterprise IoT scenarios. The BF-MC20-BT integrates into the 2.4 GHz band and requires no additional firmware updates for standard IoT and proximity deployments, reducing commissioning complexity.
Key Features
- Bluetooth 5.1 LE Protocol Support: Native Bluetooth 5.1 Low Energy stack handles both advertisement (beacon) and direct sensor-gateway communication. Bluetooth 5.1 delivers improved range and throughput compared to earlier versions, which matters when coverage must extend across large warehouse floors or outdoor asset-tracking zones without adding repeaters.
- Dual Operational Modes: Toggle between beacon mode for proximity detection and marketing triggers, and gateway mode for continuous sensor data ingestion. This flexibility avoids the cost of deploying separate hardware for proximity versus persistent IoT collection.
- Plug-In Module Form Factor: Installs directly into compatible Cradlepoint appliances without external enclosures, adapters, or significant space overhead. Integration as a network adapter simplifies cable runs and reduces the number of separate devices in your edge rack.
- 2.4 GHz Band Operation: Operates in the unlicensed 2.4 GHz spectrum alongside Wi-Fi and Zigbee. This band is global and unregulated, but congestion can occur in dense RF environments—confirm channel planning if you're co-locating multiple wireless systems.
- Standard Bluetooth 5.1 LE Sensor Ecosystem Compatibility: Works with off-the-shelf BLE sensors and tags—no proprietary hardware lock-in. This is a critical advantage if you're integrating wearables, temperature sensors, or asset trackers already deployed elsewhere in your facility.
- Simplified Deployment Path: No firmware updates required for standard IoT and proximity use cases, shortening time-to-production and reducing the risk of configuration errors during initial deployment.
Integration and Deployment Context
The BF-MC20-BT is designed to extend the capability of Cradlepoint edge routing platforms into the Bluetooth domain. If you're running a Cradlepoint edge router or similar appliance, this module plugs in to add BLE ingestion without requiring a separate gateway device. Common deployments include warehouse location tracking (asset position via beacon proximity), environmental monitoring (temperature and humidity sensors in cold-chain logistics), and enterprise IoT hubs where the same edge appliance already handles cellular failover and VPN backhaul.
The module's support for both beacon and gateway modes means a single BF-MC20-BT can serve multiple functions—for example, acting as a beacon in the morning for staff location services, then switching to gateway mode in the afternoon to collect sensor data from fixed temperature probes. This operational flexibility reduces hardware duplication in multi-purpose edge locations.
When to Consider a Different Approach
If your deployment requires Bluetooth Classic (audio streaming, legacy device support) rather than Low Energy, the BF-MC20-BT is not the fit; classic Bluetooth is power-hungry and not designed for sensor networks. If you need seamless roaming across multiple gateways with millisecond handoff, standard BLE beaconing has inherent latency—consider dedicated location services platforms (such as Ultra-Wideband or dedicated BLE mesh solutions) if sub-second precision is non-negotiable. For environments with heavy 2.4 GHz congestion (dense Wi-Fi deployment, active radar systems), verify RF site survey results before committing; 2.4 GHz coexistence can degrade range and reliability.
Frequently Asked Questions
Q: What Cradlepoint appliances are compatible with the BF-MC20-BT?
A: The module plugs into Cradlepoint routing and edge computing platforms via the standard module connector. Consult your appliance documentation or contact your systems integrator to confirm your specific model supports module expansion.
Q: Does the BF-MC20-BT require separate power, or does it draw from the host appliance?
A: The module integrates as a plug-in adapter and draws power from the host Cradlepoint device. No separate power supply is required.
Q: Can the BF-MC20-BT operate in both beacon and gateway modes simultaneously?
A: The module supports dual operational modes, but confirmation of simultaneous operation requires verification against your specific firmware version and host appliance. Check the datasheet or your appliance release notes for mode-switching capabilities.
Q: What sensor range should I expect in beacon mode?
A: Bluetooth 5.1 LE range depends on transmit power, antenna design, and RF environment. For typical indoor deployments, expect 50–100 meters (164–328 feet) in open space; walls and metal structures reduce range significantly. Conduct a site survey if coverage is critical.
Q: Is firmware update required to deploy the BF-MC20-BT?
A: Standard IoT and proximity deployments require no additional firmware updates, reducing commissioning time and configuration risk.
Q: Does the BF-MC20-BT support standard GATT profiles for sensor compatibility?
A: The module implements the standard Bluetooth 5.1 LE protocol stack, enabling compatibility with off-the-shelf BLE sensors. Consult the datasheet for confirmed GATT profile support and any device-specific protocol requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The BF-MC20-BT is a straightforward, no-nonsense addition to Cradlepoint edge appliances if you need to inject Bluetooth Low Energy into an existing edge infrastructure. The plug-in form factor and zero-firmware-required deployment for standard IoT modes mean faster time to production—always a win in retrofit scenarios where you're retrofitting BLE sensing into an existing router or edge platform.
Technical Highlights:
- Bluetooth 5.1 LE Stack: Native support for both advertisement and sensor-gateway protocols eliminates the need for separate BLE gateways or cloud-dependent beacon services. In warehouse environments where you're already running a Cradlepoint edge router, this consolidation reduces hardware count and simplifies backhaul.
- Dual-Mode Operation (Beacon + Gateway): Switching between proximity detection and persistent sensor ingestion on a single module is pragmatic—you're not burning extra edge capacity or power for part-time beacon functions.
- 2.4 GHz Band, Plug-In Integration: Unlicensed spectrum avoids licensing overhead, and direct integration into the host appliance means no separate enclosure, external antenna management, or additional cabling runs. This matters in confined edge closets or rack-mount scenarios.
Deployment Considerations:
- RF Coexistence Risk: 2.4 GHz congestion is real—Wi-Fi, Zigbee, and microwave emissions all compete for airtime. If you're deploying this in a high-density retail or manufacturing environment, conduct a spectrum survey before final site acceptance. Range degradation in congested bands is not a surprise; it's predictable physics.
- Firmware Lock-In: While standard IoT deployments require no updates, advanced features or future protocol changes may be tied to appliance firmware versions. Keep your host platform's firmware roadmap in view when planning long-term sensor ecosystem expansion.
Position the BF-MC20-BT for edge IoT consolidation—specifically, deployments where you're already operating a Cradlepoint appliance and want to avoid spinning up a dedicated Bluetooth gateway. Warehouse asset tracking, environmental sensor hubs, and retail proximity marketing are natural fits. Skip it if your primary need is Bluetooth Classic audio or if RF congestion surveys indicate 2.4 GHz is already saturated at your site.
