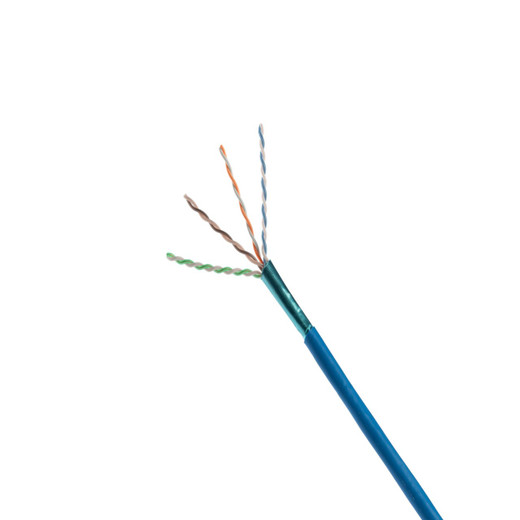

Panduit PUP6AHD04RD-G Pan-Net Cat 6A Plenum Bulk Cable
The Panduit PUP6AHD04RD-G delivers 10 Gigabit Ethernet performance in a plenum-rated Category 6A bulk cable designed for commercial structured cabling installations. This 1000-foot U/UTP cable features 23 AWG solid copper conductors and CMP flammability rating, making it compliant for air-handling spaces where building codes mandate plenum-grade materials. The red jacket enables instant visual identification for network segmentation, security zones, or color-coded infrastructure plans. Pan-Net engineered construction ensures consistent 500 MHz performance across permanent link installations in datacenters, enterprise campuses, and high-density commercial buildings.
Key Features
- Category 6A performance supporting 10GBase-T up to 100 meters at 500 MHz bandwidth
- Plenum-rated (CMP) jacket meets NEC Article 800 requirements for air-handling spaces
- U/UTP (unshielded twisted pair) construction simplifies termination and reduces installation labor
- 23 AWG solid copper conductors for permanent link applications with 110-style punch-down terminations
- Red jacket color-coding supports network segmentation, security camera circuits, and infrastructure documentation
- 1000-foot pull box format optimizes material utilization and reduces mid-run splices
- TIA-568.2-D compliant design ensures interoperability with standard Category 6A connectivity
- UL Listed to UL 444 and UL 910 Steiner Tunnel Test for plenum applications
Category 6A cabling represents the baseline for modern commercial network infrastructure where 10 Gigabit Ethernet performance is required. The PUP6AHD04RD-G's 500 MHz bandwidth specification doubles the 250 MHz minimum of Category 6, providing essential headroom for Power over Ethernet (PoE++) applications where alien crosstalk and heat dissipation become critical factors. The U/UTP construction eliminates the overall shield present in F/UTP designs, which reduces termination complexity and allows integrators to use standard unshielded RJ45 jacks and patch panels without grounding requirements. For structured cabling contractors, this translates to faster punch-down times and lower material costs compared to shielded alternatives, while still maintaining full 10GBase-T performance when installed to TIA standards. The four-pair twisted geometry is engineered to meet PSANEXT (Power Sum Alien Near-End Crosstalk) and PSAACRF (Power Sum Alien Attenuation to Crosstalk Ratio, Far-End) limits that prevent interference in densely bundled cable trays.
The plenum CMP rating is non-negotiable for cables installed in air-handling spaces—the plenums above drop ceilings or below raised floors that circulate HVAC airflow. Building inspectors will red-tag non-plenum cable in these zones because standard PVC jackets emit toxic smoke during fire events. The PUP6AHD04RD-G uses a low-smoke, flame-retardant fluoropolymer jacket compound that meets UL 910 (Steiner Tunnel Test) requirements, ensuring the cable self-extinguishes and produces minimal smoke particulate. This compliance is essential for commercial office buildings, hospitals, schools, government facilities, and any occupied space where cables route through air-handling plenums. Integrators working in retrofit scenarios or tenant improvement projects will find that inspectors verify plenum ratings during rough-in inspections—non-compliant cable discovered during final walkthrough means rip-and-replace at contractor expense. The CMP designation also satisfies Canadian ULC standards, making this cable suitable for cross-border projects or multinational campus deployments where a single SKU must meet multiple fire codes.
The 23 AWG solid conductor gauge is purpose-built for permanent link installations where cable terminates into punch-down blocks, 110-style jacks, or modular patch panels. Solid conductors maintain their shape when seated into insulation displacement contacts (IDCs), creating gas-tight connections that resist oxidation over the 10-plus-year lifecycle of structured cabling systems. This is distinct from stranded patch cable, where flexible conductors would compress and deform under IDC pressure, leading to intermittent connectivity and failed certification tests. The red jacket serves a dual purpose: it provides instant visual identification during installation and ongoing maintenance, and it supports color-coded infrastructure documentation where red might designate security camera circuits, building access control networks, fire alarm circuits, or specific VLANs. In mixed-use datacenters or campus installations with hundreds of cable runs, color-coding reduces troubleshooting time and prevents accidental circuit disruption during moves, adds, and changes. The jacket is also formulated for low pulling tension and easy stripping, which matters when you're terminating 96-port patch panels on deadline.
The 1000-foot pull box format matches standard horizontal cabling runs in commercial construction, where TIA-568 specifies a 90-meter permanent link maximum with 10 meters reserved for patch cords and equipment cords. This length allows integrators to pull multiple drops from a single box, reducing packaging waste and minimizing mid-run splices that introduce insertion loss and potential failure points. For large-scale projects—datacenter build-outs, multi-floor office installations, campus backbone upgrades, high-density IP surveillance networks—buying in 1000-foot increments optimizes material cost and ensures consistent cable lot performance across the entire installation. The Pan-Net product line is manufactured to tight tolerances with batch testing, so electrical characteristics like pair-to-pair skew, return loss, and propagation delay remain uniform within each production run. This consistency matters when you're certifying hundreds of links with a Fluke DSX-5000 or Ideal LanTek III tester, because variation between cable lots can push borderline links into failure and force re-termination or re-pulls.
Panduit's Pan-Net Category 6A cable line is engineered to exceed TIA-568.2-D performance requirements across all test parameters. The standard specifies insertion loss limits, return loss minimums, NEXT (Near-End Crosstalk), PSNEXT (Power Sum NEXT), ACR-F (Attenuation to Crosstalk Ratio, Far-End), and the alien crosstalk parameters (PSANEXT, PSAACRF) that distinguish Category 6A from its predecessor. The PUP6AHD04RD-G's U/UTP design relies on precision pair-twist geometry and tight conductor balance to achieve these limits without shielding. Each pair is twisted at a unique lay length to minimize pair-to-pair coupling, and the overall cable construction is optimized to reduce alien crosstalk when bundled in high-density trays or conduits. When paired with Panduit's Mini-Com TX6A or Pan-Way connectivity, the system delivers verified channel performance that passes DTX/DSX certification at the 6A permanent link tier. This matters for integrators who warranty installed performance: using matched-brand cable and connectivity reduces finger-pointing when a link fails certification, and provides a single-source warranty path when issues arise. Third-party mixing—using Panduit cable with competitor jacks—voids component-level warranties and complicates troubleshooting when performance degrades.
Installation of Category 6A cable requires attention to bend radius and pulling tension to preserve electrical performance. The PUP6AHD04RD-G maintains a minimum bend radius of four times the cable diameter under no-load conditions and eight times under load during pulls. Exceeding these limits deforms the internal pair geometry, which degrades return loss and increases alien crosstalk. For horizontal cable runs, integrators should use cable management J-hooks spaced at 4-foot intervals to prevent sagging, and avoid over-tightening cable ties that compress the jacket. In vertical risers or long conduit pulls, use pulling lubricant rated for plenum cable and monitor pulling tension to stay below the manufacturer's 25-pound maximum. After termination, leave adequate service loops in telecommunications rooms and equipment racks—these loops provide slack for future re-termination and prevent stress on punch-down contacts when patch panels are moved or reconfigured.
This cable is UL Listed and meets NEC Article 800 requirements for communications circuits in commercial buildings. It is also compliant with RoHS directives, making it suitable for federal government projects or installations where environmental regulations mandate lead-free, low-halogen materials. The plenum rating extends to Canadian installations under CEC and ULC standards, so cross-border projects or multinational deployments can standardize on a single cable SKU without maintaining separate inventories for U.S. and Canadian sites. For integrators bidding on projects with strict specification requirements—government facilities, healthcare campuses, financial institutions, critical infrastructure—the PUP6AHD04RD-G's third-party certifications and published test data provide the documentation needed to satisfy consulting engineers and compliance officers during submittal reviews. Panduit maintains a comprehensive technical library with installation guides, white papers on alien crosstalk mitigation, and certification reports that demonstrate compliance with ANSI/TIA, ISO/IEC, and CENELEC standards for structured cabling systems.
