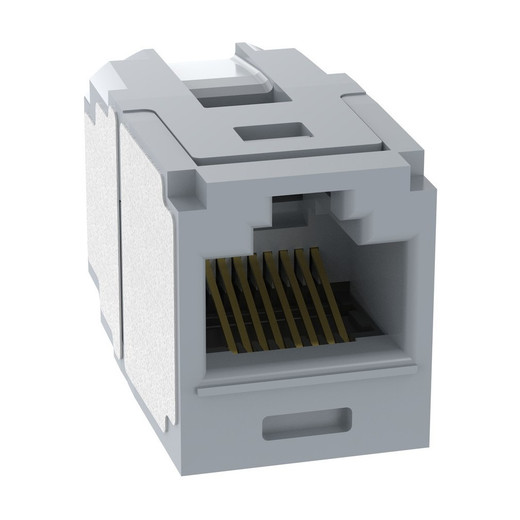

Panduit CC6X88IG Mini-Com Cat 6A UTP RJ45 Coupler Module
The Panduit CC6X88IG Mini-Com coupler module delivers field-proven Cat 6A UTP performance for extending cable runs, building out patch panels, and consolidating wall-plate terminations in commercial network deployments. Every unit ships with 100% factory testing against ANSI/TIA-568.2-D and ISO 11801 channel requirements, guaranteeing the headroom integrators need when one coupler per channel is spec'd into the permanent link. The 1.3 µm gold-plated contacts resist corrosion and maintain contact integrity across 2,500 mating cycles—critical for high-turnover environments like co-location spaces, conference rooms, and desk-drop installations that see frequent patch-cord swaps. International Gray housing supports color-coded port identification schemes and blends into standard enterprise faceplates.
Key Features
- Cat 6A UTP RJ45-to-RJ45 coupler module for extending cable runs without re-termination
- 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 Cat 6A channel performance when deployed as one coupler per link
- 1.3 µm gold-plated contacts for superior conductivity and 2,500-cycle durability per IEC 60603-7
- Pan-Net Mini-Com form factor drops into any Panduit Mini-Com faceplate, surface-mount box, or modular patch panel
- Supports IEEE 802.3af/at PoE and 802.3bt Type 3/Type 4 applications (up to 90W UPoE) without voltage drop concerns
- UL 1863 and UL 2043 plenum rated; RoHS compliant for air-handling and municipal specifications
- International Gray finish for enterprise port color-coding and rack aesthetic consistency
Integrators deploy the CC6X88IG when a permanent-link cable run lands in the wrong location, when consolidating multiple wall-plate drops into a single consolidation point, or when building field-configurable patch panels that need to adapt as tenant layouts change. The module's Mini-Com keyed design prevents accidental removal once snapped into a faceplate or panel insert, and the compact 0.71 in × 1.09 in × 0.62 in footprint maintains standard port density on dual-gang wall plates and 1U 48-port panels. Because Panduit tests every coupler at the component level before shipping, you're not gambling on bulk-vendor passthrough adapters that may or may not meet insertion-loss budgets—this module's datasheet performance is guaranteed across the full 500 MHz bandwidth.
The 1.3 µm gold plating exceeds the industry-standard 1.0 µm thickness, adding measurable corrosion resistance in coastal or high-humidity sites and extending contact life in installations where patch cords cycle daily. The 2,500-mating-cycle rating per IEC 60603-7 is double the typical 1,250-cycle spec found on economy couplers, directly translating to lower long-term maintenance costs in hoteling desks, conference rooms, and lab benches. PoE compliance through 802.3bt Type 4 means this coupler handles 90W UPoE camera and access-point deployments without introducing resistive loss that would otherwise force mid-span injector placement or over-spec'd switch ports. The module's insertion-loss and return-loss margins also accommodate the one-coupler-per-channel allowance in TIA-568.2-D Annex A, so you can insert this inline without burning your permanent-link headroom or failing certification sweeps.
Pan-Net Mini-Com couplers integrate into Panduit's modular faceplate and patch-panel ecosystem, allowing mix-and-match port configurations—copper, fiber, A/V, USB—within a single plate or panel frame. The keyed snap-in mechanism requires deliberate insertion and won't vibrate loose during shipping or rack relocation, and the International Gray finish matches Panduit's IG-designated faceplates and inserts for visual consistency across enterprise campuses. Each coupler ships individually packaged with carton quantities of 50 for project staging, and the compact form factor supports high-density consolidation-point builds where rack space or back-box depth is constrained. For integrators managing structured-cabling projects under NEC Article 800 or NFPA 70 plenum requirements, the UL 2043 plenum rating and RoHS compliance close out code-compliance checklists without requiring engineered substitutions or AHJ variance requests.
