Panduit Coupler 6INX4IN 150MMX100MM Fbrr EA

Panduit FRBC6X4LBL FiberRunner 6x4 QuikLock Channel Coupler

Overview

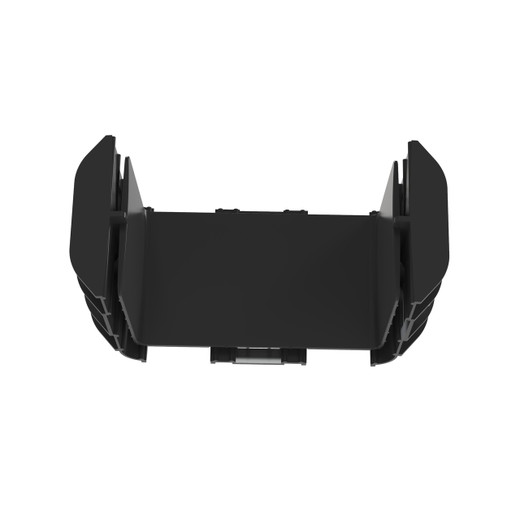

The Panduit FRBC6X4LBL is a QuikLock™ coupler designed to join two sections of 6-inch-by-4-inch FiberRunner™ fiber routing channel — or connect channel sections to fittings — without tools. Built from polycarbonate/ABS in black, it is sized for fiber routing systems in data centers and central telecommunications offices where clean, fast cable plant assembly matters. If you are building or extending a Panduit FiberRunner raceway run and need a mechanically sound splice between channel sections, this is the part that closes the gap.

The coupler ships as a single unit (Package Quantity: 1), with carton quantity of 5, meaning you can order by the piece or in carton multiples to match your project scope.

Key Features

• Tool-Free QuikLock™ Installation: The FRBC6X4LBL snaps channel sections together without fasteners or tools. On a large cable plant buildout, eliminating tool requirements at every splice point reduces installation labor measurably — particularly in overhead or confined rack environments where maneuvering hardware is awkward.
• 6-Inch × 4-Inch Channel Compatibility: Matched to the 6x4 FiberRunner™ system (150mm × 100mm), this coupler handles high-density fiber runs where horizontal cross-connect capacity demands a wide, deep channel. If your pathway is a smaller FiberRunner size, this part does not fit — verify your channel dimensions before ordering.
• Polycarbonate/ABS Construction: The blended polycarbonate/ABS material delivers impact resistance and dimensional stability across the temperature swings typical of raised-floor data center environments. It will not deform under normal cable weight loading or routine maintenance foot traffic near the pathway.
• RoHS Compliance: The FRBC6X4LBL meets RoHS (Restriction of Hazardous Substances) requirements, which matters for deployments in the EU and for customers with environmental procurement policies. No separate compliance documentation is needed — the part ships conformant.
• UL-Listed Optical Cable Routing Assemblies (to 2024): UL listing for optical cable routing assemblies confirms the coupler meets recognized safety standards for fire and electrical environments. For data centers or telco facilities requiring listed infrastructure throughout, this keeps the cable pathway system fully listed end-to-end.
• Telcordia GR-63-CORE Compliance: GR-63-CORE is the Network Equipment Building System (NEBS) Level 3 seismic and environmental standard for telecom equipment. A coupler meeting this standard is qualified for carrier-grade central office deployments where seismic zone compliance is a procurement requirement — not just a nice-to-have.
• Black Finish: Standard black matches the FiberRunner™ system aesthetic and is the common finish for data center open-frame rack and overhead cable management environments. Color-coded tracing is not a function of this coupler — it is a structural splice component.
• Low Per-Unit Cost, Carton Purchasing Available: At a carton quantity of 5, you can scale purchasing directly to project needs without overstocking. For large buildouts involving many channel splice points, carton ordering keeps inventory lean.

Integration & Compatibility

The FRBC6X4LBL is engineered specifically for the Panduit FiberRunner™ 6x4 channel system. It connects two channel sections inline or joins channel to compatible fittings within the FiberRunner family. It is not a universal coupler — it will only mate correctly with 6-inch-by-4-inch FiberRunner channel and fittings that share that profile. Do not attempt to use this coupler with FiberRunner 4x4, 2x2, or other channel sizes; the QuikLock geometry is size-specific.

For complete data center cable management pathway planning, this coupler is typically combined with FiberRunner channel straight sections, horizontal and vertical elbows, tees, and end caps from the same Panduit FiberRunner family. It is compatible with standard open-frame rack mounting configurations where FiberRunner is deployed overhead or in ladder rack transitions.

The competitive cross-reference on file is FGSB-MFAW-B — if you are evaluating an alternate brand coupler against this part, confirm the channel geometry match before substituting, as QuikLock snap dimensions are proprietary to Panduit's FiberRunner system.

What's in the Box

• 1x Panduit FRBC6X4LBL FiberRunner 6x4 QuikLock Coupler

Frequently Asked Questions

Q: What channel size does the FRBC6X4LBL fit?

A: The FRBC6X4LBL is designed specifically for 6-inch × 4-inch (150mm × 100mm) FiberRunner™ channel and compatible fittings. It will not fit smaller or larger FiberRunner channel sizes.

Q: Does the FRBC6X4LBL require tools to install?

A: No. The QuikLock™ design allows tool-free installation — the coupler snaps channel sections together without fasteners, screwdrivers, or hardware. This is one of the primary reasons it is specified for data center and telco cable plant buildouts.

Q: Is the FRBC6X4LBL RoHS compliant?

A: Yes. The FRBC6X4LBL meets RoHS (Restriction of Hazardous Substances) requirements, confirmed in the published standards compliance documentation for this part.

Q: Does this coupler meet NEBS or Telcordia requirements?

A: Yes. The FRBC6X4LBL conforms to Telcordia GR-63-CORE and Network Equipment Building System (NEBS) Level 3 environmental standards, making it suitable for carrier-grade central office deployments with seismic compliance requirements.

Q: Is the FRBC6X4LBL UL listed?

A: Yes. The coupler is part of Panduit's UL-listed optical cable routing assemblies program (listed to 2024). This supports end-to-end listed pathway installations in data centers and telecom facilities.

Q: What is the material of the FRBC6X4LBL?

A: The coupler is molded from a polycarbonate/ABS blend, which provides impact resistance and dimensional stability suitable for data center and telecommunications environments.

Marty Allison

The FRBC6X4LBL is the splice hardware you order when you have already committed to the FiberRunner 6x4 pathway system and need to join channel sections cleanly at scale. The tool-free QuikLock snap mechanism is not a marketing claim — on a data center structured cabling buildout where you are closing dozens of channel joints across ladder rack runs, eliminating the torque wrench at every splice point is a real time saving. The polycarbonate/ABS construction holds dimensional tolerances that matter when you are aligning consecutive channel sections across a long overhead run.

Technical Highlights:

• Tool-Free QuikLock Snap: No fasteners, no tools required at installation — directly reduces labor time per splice point on large cable plant builds.
• GR-63-CORE / NEBS Level 3: Seismic and environmental compliance qualifies this coupler for carrier central office environments where NEBS compliance is a hard procurement requirement, not optional.
• Polycarbonate/ABS Material: Impact-resistant blend maintains channel alignment under normal cable loading and maintenance traffic without deformation — important in high-density fiber pathways carrying bundled trunk cables.

Deployment Considerations:

• Size-lock is absolute: the FRBC6X4LBL only mates with 6x4 FiberRunner channel. Verify your channel width and depth before ordering — do not assume cross-compatibility with other FiberRunner sizes or third-party channel systems using the QuikLock profile name.
• The 111.8mm (4.4-inch) height spec listed is the overall height dimension of the coupler body — account for this clearance when planning overhead pathway routing in low-ceiling or raised-floor plenum spaces.

This coupler is the right specification for structured fiber pathway buildouts in Tier II–IV data centers or carrier central offices where the FiberRunner 6x4 system is the standard, NEBS compliance is required, and installation efficiency on multi-rack rows is a project constraint.
