Panduit Coupler 4INX4IN Fbrr EA

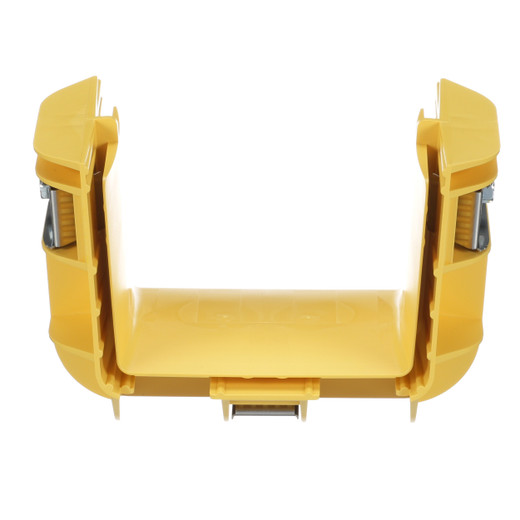

Panduit FRBC4X4LYL FiberRunner 4x4 QuikLock Fiber Channel Coupler

Overview

The Panduit FRBC4X4LYL is a QuikLock™ coupler for the FiberRunner™ 4x4 fiber routing system — the component that joins two adjacent channel sections or fittings without tools, without tape, and without improvising a fix mid-run. If you've ever had a fiber route fall apart during a pull because a coupling shifted, this is the part that eliminates that problem. Designed for data centers and central telecom offices, the FRBC4X4LYL is the field-correct answer when you're extending or completing a 4-inch-by-4-inch FiberRunner pathway in a structured environment where channel integrity actually matters.

The coupler ships as a single unit (package quantity: 1) and is sold in carton quantities of 5, making it straightforward to stock for multi-rack or multi-row deployments. The yellow color matches the FiberRunner 4x4 yellow channel family — a visual convention that keeps single-mode fiber pathways immediately identifiable during moves, adds, and changes without tracing cable by hand.

Key Features

• QuikLock™ Tool-Free Installation: The QuikLock mechanism snaps two channel sections together without screws, clips, or additional hardware. In a dense data center cabinet row, that translates to faster installation and fewer loose connections that can introduce bend-radius risk at joints over time.
• 4x4 Channel Match: Sized specifically for the FiberRunner 4x4 system — 4.4 inches (111.8 mm) overall height. This is not a universal fitting; it's engineered to the exact interior geometry of the 4x4 channel, which preserves the cable bend radius protection the channel is designed to deliver. Using an undersized or generic coupler defeats that purpose.
• Polycarbonate/ABS Construction: The PC/ABS blend gives you the impact resistance of polycarbonate with the processability and lighter weight of ABS. In a raised-floor or overhead cable management environment where accidental contact from equipment carts or ladder rack work happens, this material holds up without cracking or deforming around the latch points.
• RoHS Compliance: All hazardous substance restrictions under RoHS are met, which matters for deployments into EU facilities or any enterprise with a materials compliance requirement in their procurement policy. No exceptions needed for this component.
• UL-Listed Cable Routing Assembly (through 2024): The FiberRunner assembly including this coupler carries UL listing for optical cable routing assemblies. That listing is a real requirement in many commercial building projects — it's what separates a compliant fiber pathway from a cable tray someone improvised with zip ties.
• Telcordia GR-63-CORE / NEBS Level 3 Compliance: These standards cover seismic zone 4 mechanical loading and environmental stress. For telecom central offices or any facility that must pass NEBS certification, the FRBC4X4LYL meets the structural requirements — a detail that matters specifically in carrier-grade builds and colocation sites with strict equipment qualification processes.
• Yellow Color Identification: Panduit's color convention for the FiberRunner system uses yellow for single-mode fiber pathways. In a mixed-fiber environment, that visual distinction reduces misrouting during MACs and helps technicians trace routes without documentation in hand.

Integration & Compatibility

The FRBC4X4LYL is part of the Panduit FiberRunner™ system and is designed exclusively for use with FiberRunner 4x4 channel components. It is not cross-compatible with 2x2, 4x2, or 6x4 FiberRunner variants — channel height and latch geometry differ across the family. When speccing fiber cable management for a new row build or extension, verify your existing channel part numbers confirm the 4x4 cross-section before ordering couplers.

The coupler itself carries no electrical rating and introduces no active components into the pathway — it is a purely mechanical fitting. Integration into a data center infrastructure project is purely physical: match the channel family, snap in, and pull fiber. The QuikLock design means no special tools are needed from your cable management toolkit beyond what's already on the job.

For larger-scale structured cabling projects, consulting a structured cabling guide before locking in your FiberRunner layout can prevent costly rework — coupler placement affects both pull tension management and future access for MACs.

What's in the Box

• 1x Panduit FRBC4X4LYL FiberRunner 4x4 QuikLock Coupler (Yellow)

Frequently Asked Questions

Q: Is the FRBC4X4LYL compatible with all FiberRunner channel sizes?

A: No. The FRBC4X4LYL is sized specifically for the FiberRunner 4x4 system (4.4 inches / 111.8 mm overall height). It is not interchangeable with 2x2, 4x2, or other FiberRunner channel families. Always match the coupler to your installed channel cross-section.

Q: Does the FRBC4X4LYL require any tools for installation?

A: No. The QuikLock™ mechanism is a tool-free snap-fit design. Two channel sections or fittings connect quickly without screws, clips, or additional hardware.

Q: What standards does the FRBC4X4LYL meet?

A: The FRBC4X4LYL meets RoHS hazardous substance requirements, carries UL listing for optical cable routing assemblies, and complies with Telcordia GR-63-CORE and NEBS Level 3 environmental and seismic standards.

Q: What is the significance of the yellow color on the FRBC4X4LYL?

A: In the Panduit FiberRunner system, yellow designates single-mode fiber pathways. Using the color-matched coupler maintains the visual identification convention across your installation, which simplifies fiber routing during moves, adds, and changes.

Q: What quantity does the FRBC4X4LYL ship in?

A: The FRBC4X4LYL is sold as a single unit (package quantity: 1). Carton quantity is 5, so ordering in multiples of 5 is the standard stocking unit for larger deployments.

Q: What material is the FRBC4X4LYL made from?

A: The coupler is constructed from a Polycarbonate/ABS blend, providing impact resistance combined with lighter weight — suitable for the mechanical stresses of data center cable management environments.

Marty Allison

The detail I keep coming back to on the FRBC4X4LYL is the Telcordia GR-63-CORE / NEBS Level 3 rating. For most enterprise data center builds, UL listing is enough — but the moment you're working in a carrier central office or a colocation facility with NEBS qualification requirements, that seismic and environmental rating becomes a hard procurement filter. The FRBC4X4LYL clears that bar, which means you're not scrambling for an alternate fitting when the spec sheet comes back from the facilities team.

Technical Highlights:

• QuikLock Tool-Free Coupling: Snap-fit connection between channel sections eliminates fasteners at every joint — on a 20-rack row that's dozens of connection points where a screw-based coupler would add installation time and introduce potential failure points if vibration works them loose.
• 4.4-inch (111.8 mm) Channel Height Match: This coupler is dimensionally locked to the FiberRunner 4x4 geometry. That precision fit is what preserves the channel's minimum bend radius protection at the joint — the most vulnerable point in any fiber run is where two sections meet.
• PC/ABS Construction, RoHS + UL Listed: The material combination handles incidental impact in active data center aisles while meeting both EU hazardous substance rules and UL optical cable routing assembly listing — two compliance checkboxes that come up in enterprise and carrier procurement without any workaround needed.

Deployment Considerations:

• Order against carton quantity of 5 — for row-level builds with many channel joints, buying in carton multiples avoids the common situation of running short by 1-2 couplers mid-installation when the next shipment is days out.
• The FRBC4X4LYL is a 4x4-specific fitting only. If your facility has mixed FiberRunner channel sizes across different vintage builds, verify the exact channel part number before ordering — a 4x2 channel will not accept this coupler and the mismatch isn't always obvious until you're on the ladder.

This coupler is the right spec for NEBS-qualified carrier central offices and enterprise data centers running yellow FiberRunner 4x4 as their single-mode fiber pathway standard — anywhere the combination of tool-free installation speed and compliance documentation (UL, RoHS, GR-63) is a real procurement requirement, not just a nice-to-have.
