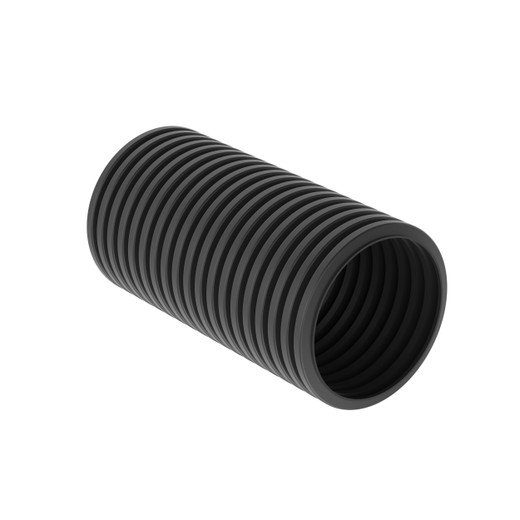

Panduit CLT150F-T20 Corrugated Loom Tubing

The Panduit CLT150F-T20 is a 200-foot roll of slit-wall corrugated loom tubing engineered to protect cable bundles from impact damage and abrasion in commercial security, datacenter, and structured-cabling installations. The longitudinal slit eliminates the need to thread individual wires through rigid conduit—installers route pre-assembled harnesses or retrofit existing runs by simply snapping cables into the 1.58" (40mm) interior channel. Polyethylene construction balances flexibility for tight-radius routing with crush resistance sufficient for exposed cable trays, ceiling-grid supports, and wall transitions where bundled Cat6, fiber, or power cables face mechanical stress.

Key Features

Slit-wall design for tool-free installation on pre-terminated cable assemblies and retrofit applications

1.58" (40mm) inside diameter accommodates medium-density bundles—typically 12–24 Cat6 cables or mixed low-voltage runs

200-foot continuous length reduces splice points and labor on long horizontal or vertical routing paths

Polyethylene material resists moisture, chemicals, and UV degradation in indoor environments

UL 94 HB flammability rating meets baseline fire-safety requirements for commercial low-voltage installations

Maximum operating temperature of 122°F (50°C) suits standard HVAC-controlled spaces and IT closets

Compatible with Panduit cable ties and loom-retention accessories for secure closure at splice points and transitions

RoHS compliant for integration into green-building and datacenter sustainability programs

The corrugated profile provides radial stiffness that prevents collapse under bundled-cable weight while maintaining bend flexibility for 90° turns in cable tray and J-hook routing. The slit runs the full 200-foot length, allowing partial-bundle access for mid-span taps or troubleshooting without disassembling the entire harness. Installers secure the slit edges using Panduit's PLT or PRT cable-tie series at 24–36" intervals, or leave unsecured in low-movement horizontal runs where the tubing's natural tension holds cables in place. Black coloring reduces visual contrast against dark cable jackets and blends into shadows in open-ceiling or industrial environments where exposed conduit is acceptable.

Polyethylene composition delivers impact resistance critical for cable drops through wall cavities or ceiling plenums where the bundle may contact framing, HVAC ducts, or other infrastructure during installation. Unlike braided sleeving that frays under abrasion or split loom that cracks in cold storage areas, this corrugated tubing maintains structural integrity across the 32–122°F service range typical of conditioned commercial spaces. The 1.58" ID provides clearance for security-system trunk cables—four RG6 coax + two Cat6 data + 18/2 power is a common fit—while leaving air gaps that prevent heat buildup in high-current DC power runs or PoE++ bundles exceeding 90W aggregate draw.

The CLT150F-T20 ships as a single 200-foot roll, eliminating the need to join multiple 25- or 50-foot segments on long camera-run or access-control loops. This reduces labor and hardware costs while improving mechanical continuity—fewer splice points mean fewer potential snag or pull-out failures during cable adds or service. Pair with Panduit's CLT-series end caps to seal terminations at equipment racks or j-boxes, preventing dust ingress and maintaining a finished appearance. UL 94 HB rating and RoHS compliance satisfy baseline NEC Article 800 requirements and procurement standards for federal, healthcare, and municipal installations requiring documented material certifications.
