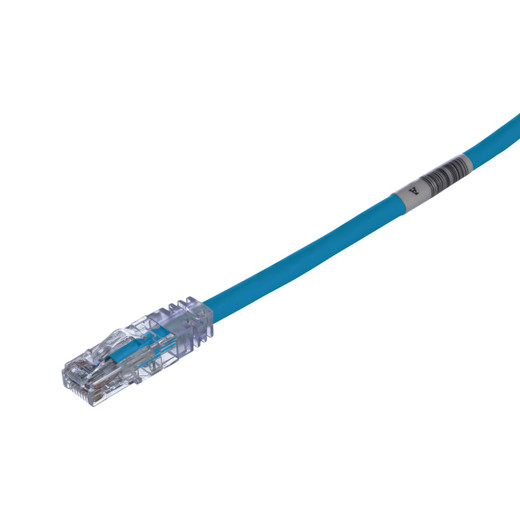

Panduit UTPSPL2MBUY Cat 6 2m Patch Cord Blue LSZH

Overview

The Panduit UTPSPL2MBUY is a 2-meter, blue Category 6 UTP (Unshielded Twisted Pair) patch cord designed for high-performance network infrastructure. Constructed with 24 AWG stranded copper conductors and a Low Smoke Zero Halogen (LSZH) jacket, this cable meets stringent flammability standards (IEC 60332-1, IEC 60754-1, IEC 61034-2), making it suitable for environments where fire safety is critical. The cable exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA performance up to 500 MHz, ensuring reliable data transmission for demanding applications. Its patented tangle-free latch and slender strain relief boot simplify installation and maintenance in high-density racks.

Compatibility

This Panduit TX6 PLUS patch cord is engineered for broad network compatibility. It supports Ethernet standards including 10BASE-T, 100BASE-T, 1000BASE-T, and 10GBASE-T over limited distances. It is also compatible with 155/622/1200 Mb/s ATM, Token Ring (4/16 Mbps), VoIP, and digital video applications. The cable is rated for IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) for up to 2,500 connection cycles, ensuring robust power delivery to connected devices.

Installation Notes

The UTPSPL2MBUY features a tangle-free latch mechanism that prevents snagging during installation and a slender strain relief boot designed for easy access in high-density applications. Each cable is 100% performance tested for wire map, Near-End Crosstalk (NEXT), and return loss. The integrated RapidID barcode facilitates automated port mapping with compatible software, streamlining network management and troubleshooting.
