Panduit UTPSP20BUY Cat 6 20ft Blue Patch Cord

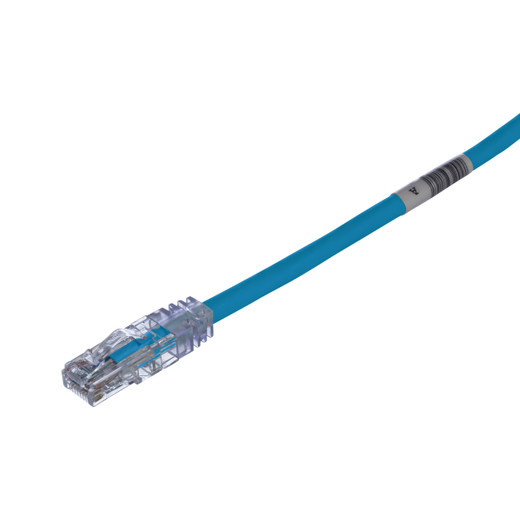

Panduit UTPSP20BUY Cat 6 UTP Patch Cord

The Panduit UTPSP20BUY is a 20-foot Cat 6 UTP patch cord engineered for high-density data center and enterprise network deployments where uptime, cable management, and rapid MACs (moves, adds, changes) determine operational efficiency. Built on Panduit's TX6 PLUS platform with 24 AWG stranded copper conductors and centered de-embedded plugs, this blue patch cord delivers verified 1-250 MHz performance exceeding ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements. RapidID technology embeds pre-installed barcodes for automated port mapping using Panduit's RapidID software, eliminating manual documentation errors during installation audits and MAC workflows.

Key Features

• Cat 6 UTP 24 AWG stranded copper construction for flexibility in tight bend radius applications
• Patented tangle-free latch prevents snags during cable pulls through vertical managers and zero-U cable organizers
• Slender strain relief boot enables access in 1U switch environments with 48-port density
• RapidID pre-installed barcodes integrate with RapidID software for automated documentation and cable tracing
• Centered de-embedded plug design with integral pair manager maintains twist geometry through termination for consistent NEXT performance
• Supports IEEE 802.3bt Type 3 (60W) and Type 4 (90W) PoE for LED lighting, PTZ cameras, Wi-Fi 6E access points, and IP phones without voltage drop concerns at 20-foot run length
• 100% factory tested for wire map, NEXT, and return loss—serialized test reports available through Panduit's quality portal

The TX6 PLUS patch cord addresses three common field failures: latch breakage during MACs, performance drift from poor plug termination, and documentation lag in change management. The tangle-free latch uses a reinforced polymer design that deflects rather than snaps when dragged across adjacent cables—critical in 40+ patch cord environments where a single break triggers a service call. The centered de-embedded plug maintains factory twist rates up to the contact point, preventing the 2-4 dB NEXT degradation seen in field-terminated plugs where pairs untwist during insertion. Stranded 24 AWG conductors provide the flexibility required for repetitive bend cycles in movable equipment scenarios (rolling server racks, KVM switches, temporary staging setups) without the conductor fatigue that causes intermittent link errors in solid-conductor patch cords subjected to movement.

At 20 feet, this cord suits cross-rack patching in adjacent cabinets (row-based architectures), telecommunications room horizontal cross-connects, and perimeter camera drops from ceiling-mounted PoE switches to dome or bullet installations within the same room. The blue jacket follows TIA-606-C color coding for horizontal cabling systems, allowing visual differentiation from backbone (orange), equipment (yellow), or auxiliary (other colors) circuits. CM flammability rating makes this suitable for general building spaces; plenum-rated (CMP) variants are required for air-handling spaces per NEC 300.22(C). The cord supports 10GBASE-T operation over limited distances per IEEE 802.3an (37-55 meters depending on alien crosstalk environment), making it viable for SAN extension, NVR uplinks, or workstation connectivity in 10 Gb Ethernet migrations where Cat 6A infrastructure isn't economically justified for every drop.

Compliance includes ANSI/TIA-1096-A (FCC Part 68 successor) for telecom compatibility, IEC 60603-7 for international interoperability, and UL 1863/CSA C22.2 safety listing (UL File E129886). The cord is wired to support both T568A and T568B schemes, ensuring compatibility in mixed-standard environments (T568A in federal/education, T568B in commercial). RoHS compliance addresses EU and California waste stream regulations for installations requiring environmental documentation. For integrators managing MAC workflows across multi-building campuses or co-location facilities, the RapidID barcode integration eliminates the "which port?" troubleshooting loop—scan the cord at both ends during installation, and the RapidID database auto-populates switch port, VLAN assignment, and circuit ID, cutting post-install documentation from 15 minutes per drop to under 60 seconds.
