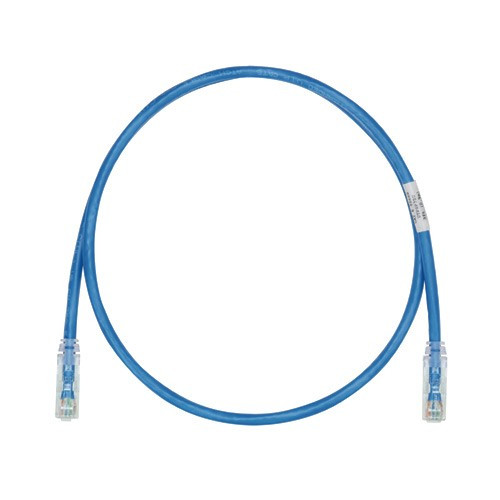

Panduit UTP28SP12BU 12ft Cat 6 Patch Cord Blue

Panduit UTP28SP12BU Cat 6 UTP Patch Cord

The Panduit UTP28SP12BU is a 12-foot Cat 6 UTP patch cord engineered for high-density data center and enterprise network installations where cable management, rapid deployment, and PoE power delivery intersect. Built on 28 AWG stranded copper with a 0.150" (3.8mm) reduced-diameter profile, this cord addresses the airflow obstruction and pathway congestion that plague rack-mount switch deployments. The integrated RapidID barcode system eliminates manual port mapping during commissioning and MAC workflows, while the patented tangle-free latch prevents snags on adjacent cables during hot-swap operations. Every cord ships 100% factory-tested for wire map, NEXT, and return loss to ensure it meets ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E performance specifications across the full 250 MHz bandwidth.

Key Features

• 28 AWG reduced-diameter construction (0.150" / 3.8mm) — 40% smaller than standard Cat 6 for improved airflow and pathway fill in high-density racks
• RapidID pre-installed barcodes — scan with RapidID software for automated port mapping, eliminating manual documentation errors during commissioning and MAC work
• Patented tangle-free latch — centered release mechanism prevents snags on adjacent cables, reducing installation time and service-call damage
• 100% factory performance tested — every cord verified for wire map, NEXT, and return loss before shipment
• Centered de-embedded plug with integral pair manager — maintains pair geometry through the plug termination for consistent electrical performance
• IEEE 802.3bt Type 3/4 PoE support — delivers up to 60W (Type 3) or 100W (Type 4) to powered devices in 24-cable bundles, 48-cable bundles for 802.3af/at
• CM/LSZH dual-rated jacket — meets NEC Article 800 communications cable requirements and low-smoke zero-halogen mandates for occupied spaces
• Blue jacket — color-coded for data VLAN identification per TIA-606-C administration standards

The 28 AWG conductor gauge is the critical differentiator for installations constrained by conduit fill calculations, rack-mount switch port density, or hot-aisle/cold-aisle airflow requirements. Traditional 24 AWG Cat 6 patch cords create a 0.230" diameter cable bundle; at 48 ports per switch, the cumulative cross-sectional area blocks front-to-back airflow and forces switches into thermal throttling. The UTP28SP12BU's 0.150" profile reduces that cross-section by 58%, allowing full-density patching without compromising cooling. The stranded copper construction maintains flexibility after hundreds of bend cycles — essential for movable equipment carts, KVM drawers, and frequent re-patching scenarios where solid-conductor cords develop work-hardening failures. Panduit's centered de-embedded plug design uses an integral pair manager to preserve the 100-ohm characteristic impedance through the RJ45 termination; competing cords that untwist pairs excessively at the plug exhibit return loss failures above 200 MHz, limiting headroom for 10GBASE-T applications over Cat 6 infrastructure.

The RapidID barcode system addresses the port-mapping problem that consumes 30-40% of commissioning labor on enterprise switch deployments. Each cord ships with a pre-printed barcode on both ends; the installer scans the barcode at the patch panel port, then scans the barcode at the switch port, and the RapidID software auto-populates the cross-connect database with port relationships, VLAN assignments, and cable length. This eliminates the manual spreadsheet workflow and the resulting transposition errors that create ghost VLANs and unreachable subnets. During MAC work, the barcode scan confirms the existing patch before removal, preventing the "pulled the wrong cable" incidents that take down production VLANs. The tangle-free latch design uses a centered release tab that sits flush with the plug body; when extracting a cord from a fully populated 48-port switch, the latch clears adjacent plugs without snagging, and the installer doesn't need to use a latch-extraction tool or risk breaking off the retention clip. For PoE deployments, the cord supports IEEE 802.3bt Type 3 (60W) and Type 4 (100W) power delivery in 24-cable bundles; the 28 AWG conductor has 40% higher DC resistance than 24 AWG, so bundle de-rating occurs at lower cable counts, but the reduced diameter allows tighter bundle management and lower ambient temperature rise. Installers running 802.3af (15.4W) or 802.3at (30W) PoE can bundle up to 48 cords without exceeding the temperature rise limits that trigger voltage drop failures.

The cord exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements across the full 1–250 MHz spectrum, with tested margin to support 1000BASE-T Gigabit Ethernet, 100BASE-T Fast Ethernet, 155 Mb/s and 622 Mb/s ATM, and VoIP telephony over converged networks. It meets ANSI/TIA-1096-A modular plug performance standards and IEC 60603-7 for international deployments. The CM/LSZH jacket is cULus Listed under UL 1863 and CAN/CSA-C22.2 (File E129886) and rated UL94V-0 for flammability, satisfying NEC Article 800 requirements for general-purpose communications cables in commercial buildings. The low-smoke zero-halogen formulation complies with IEC 60754 and is specified for healthcare facilities, transportation hubs, and high-occupancy spaces where toxic combustion byproducts create life-safety risks. This 12-foot length is the standard top-of-rack to equipment distance for 42U racks with switch mounting at the top and servers in the middle third; it provides enough slack for cable management arms and service loops without excess length that creates clutter in horizontal cable trays. For IT teams managing multi-vendor switch environments, high-turnover MAC workflows, or PoE infrastructure supporting IP cameras and wireless access points, the UTP28SP12BU delivers the installation speed, documentation accuracy, and long-term reliability that reduce total cost of ownership across the cable plant lifecycle.
