Panduit SCS6-L Concise Descriptor

Overview

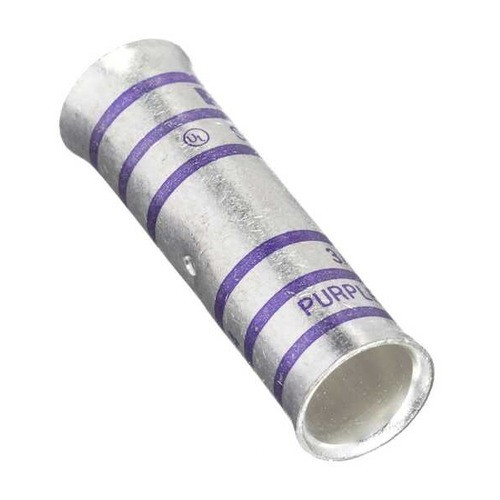

The Panduit SCS6-L is a copper compression butt splice designed for terminating and joining two conductors in electrical systems. It provides a secure, reliable connection essential for maintaining signal integrity and preventing power loss in demanding environments. This splice is engineered for applications requiring robust electrical connections, such as industrial control panels, automation systems, and commercial wiring projects where wire termination must be permanent and withstand vibration or thermal cycling. The SCS6-L model ensures a permanent, crimped connection that is superior to wire nuts or terminal blocks in high-vibration scenarios.

Compatibility

This butt splice is designed for use with stranded copper conductors ranging from 6 AWG to 6 AWG. It is compatible with standard hydraulic or mechanical crimping tools that accommodate the specific die size for 6 AWG conductors. It is suitable for use in general industrial and commercial wiring applications where UL Listed or recognized components are required.

Installation Notes

Proper installation requires a compatible crimping tool and the correct die set for 6 AWG stranded copper wire. Ensure the conductors are stripped to the appropriate length and fully inserted into the splice barrel before crimping. A single, full crimp on each side of the splice is typically recommended to ensure maximum conductivity and mechanical strength. Consult Panduit's installation guidelines for specific tool recommendations and crimp force requirements to achieve a UL Listed termination.
