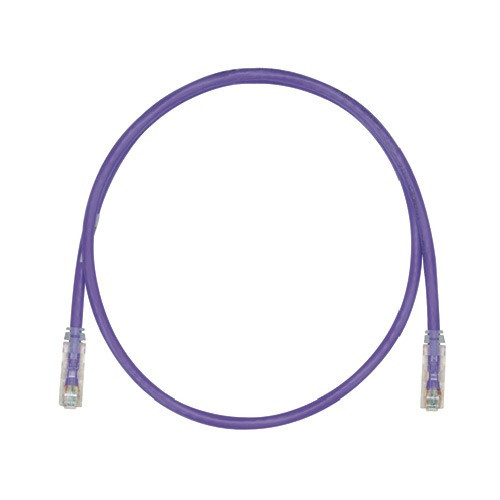

Panduit UTPSP2VLY Patch Cord

Overview

The Panduit UTPSP2VLY is a 2-foot, violet Cat 6 Unshielded Twisted Pair (UTP) patch cord. Constructed with 24 AWG stranded conductors and high-performance modular plugs, it's designed for structured cabling deployments. The integral pair manager and patented tangle-free latch simplify installation and maintenance by preventing snags and ensuring easy connector release, which is critical in high-density environments where quick moves, adds, and changes are frequent. Its slender strain relief boot also aids access in confined spaces.

Compatibility

This Cat 6 UTP patch cord supports a range of Ethernet standards, including 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T over limited distances, as defined by industry standards. It is also rated for 155 Mb/s and 622 Mb/s ATM, Token Ring 4/16, digital video, and VoIP applications. The cable construction is U/UTP, meeting ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards up to 250 MHz. It is rated for 2500 cycles and compatible with IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet standards, delivering up to PoE++ power levels.

Installation Notes

The UTPSP2VLY features a tangle-free latch that requires a simple squeeze for release, streamlining port mapping and cable management. The integrated barcode for RapidID software simplifies automated port mapping and documentation processes. The CM flammability rating indicates suitability for use in riser applications.
