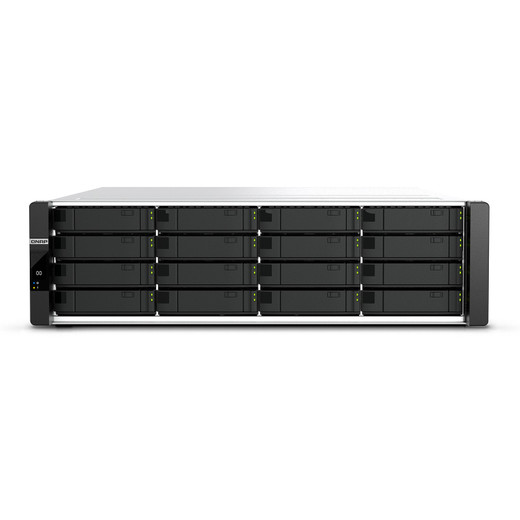

QNAP CTL-ES1686DC-R2-2123IT-32G Controller FRU for ES1686dc R2

Overview

The CTL-ES1686DC-R2-2123IT-32G is a field-replaceable controller unit (FRU) for the QNAP ES1686dc R2 enterprise NAS, designed for environments where controller-level redundancy and in-place serviceability are non-negotiable. Each controller carries an Intel Xeon D-2142IT 8-core processor clocked at 1.90 GHz base (burst to 3.0 GHz) paired with 32GB of RAM — matching the compute profile required for the ES1686dc R2's dual-controller active-active architecture. Deploying a spare or replacing a failed controller keeps the array online without pulling the chassis from the rack.

Compatibility

This controller FRU is specific to the QNAP ES1686dc R2 enterprise NAS platform. The ES1686dc R2 supports two controller modules in a dual-controller configuration; this unit slots into either controller bay. It is not cross-compatible with the original ES1686dc (non-R2) or other ES-series models — verify your chassis generation before ordering. Compatible controller pairs must run matching CPU and memory configurations to maintain active-active failover; mixing CTL variants with differing RAM capacities is not supported.

Installation Notes

Controller replacement on the ES1686dc R2 is a hot-swap procedure under dual-controller operation — the surviving controller maintains I/O while the FRU is seated. Ensure the replacement unit matches the installed controller's firmware revision before insertion; a firmware mismatch between controllers will require a synchronization step through QNAP's QES management interface. Handle the module by its ejector handles and avoid contact with the edge connector. ESD precautions apply throughout.
